External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
1 / 5
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel
External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel

External Fixator, White & Black, for Bone Fixation, Titanium Alloy & Steel

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Specifications
Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
HS Code
90211000
Production Capacity
500,000 Pieces/Year
Product Description
External Fixator -- The Pinnacle of Modular Fixation Systems

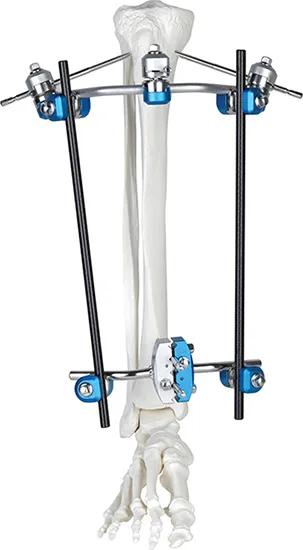

External Fixator
Key Product Features
Groundbreaking technology with intuitive, user-friendly operation.
Independent arrangement of bone screws for proximal and distal fractures.
State-of-the-art snap-fit design for streamlined, time-efficient surgery.
Enhanced fracture visualization using premium medical aluminum and carbon fiber.
Unmatched stability and flexibility for diverse medical needs.
Compact, space-saving frame for ease of transport and use.
Expertly designed for complex fractures and soft tissue loss.
Straightforward, effective, and reliable usage for medical professionals.

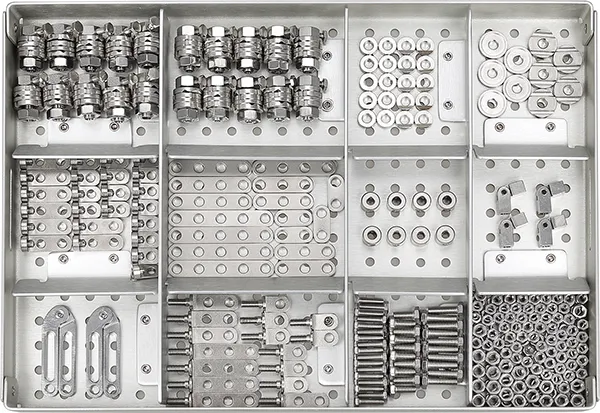

Fixator View 1

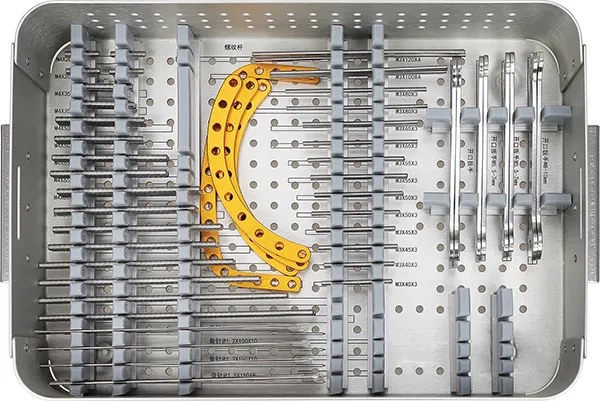

Fixator View 2
System Components & Technical Data
Component Name Specification / Size Quantity
Independent Couplingφ6*φ14(1.5-2.0) / φ6*φ14(1.5)10 / 10
Needle Clipφ4*φ9 (φ1.0) / φ4*φ9 (φ1.5)5 / 5
Cone Washerφ4*φ9 / φ4*φ1410 / 5
Double Groove Needle Clampφ4*φ14(2.0-2.5)5
Post With Threaded PostVarious (φ4*15, φ4*25, φ3*15)8 each
Connection Plateφ4*20 to φ4*50 (2-5 Holes)4 each
Straight Connection Plateφ4 / φ34 / 4
Fixator (Hinge)M4*20mm4
Straight Threaded RodM3 (40mm-120mm) / M4 (20mm-155mm)Various
Bone Screws1.0*150 / 1.2*150 / 1.5*15020 / 20 / 8
Open Spanner5.5-7mm / 8-10mm4 / 4
Instrument SetStandard Set1
Modular Variations

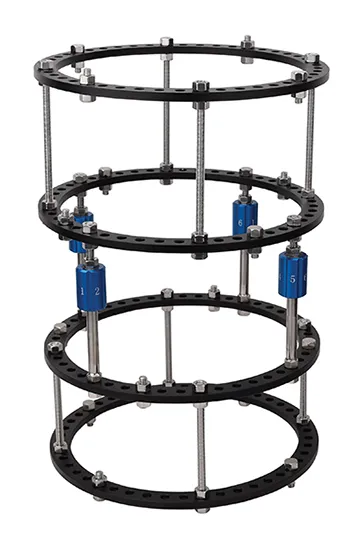

Lower Limbs Fixator
Lower Limbs Lengthening Fixator
Used For Tibia Femur

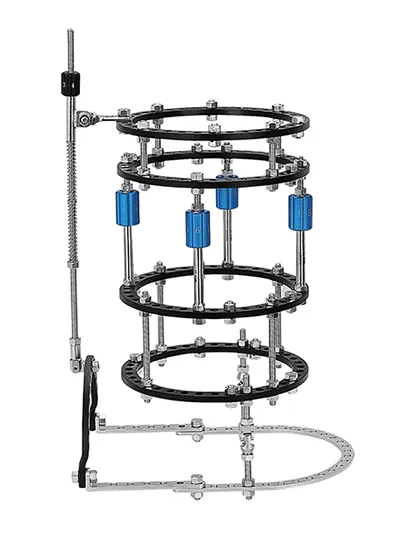

Orthopedic Fixator
Orthopedic External Fixator
Used For Humeral & Tibial Lateral Epicondyle

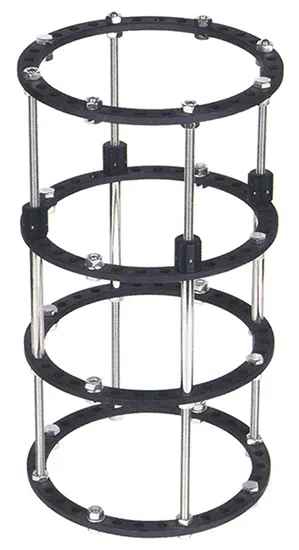

Ring Fixator
Ring Fixator
Used For Tibia Femur

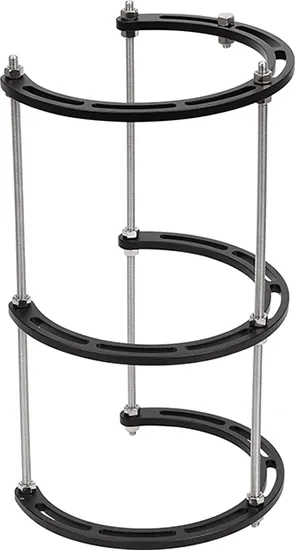

2/3 Ring Fixator
2/3 Ring Fixator
Used For Tibia Femur

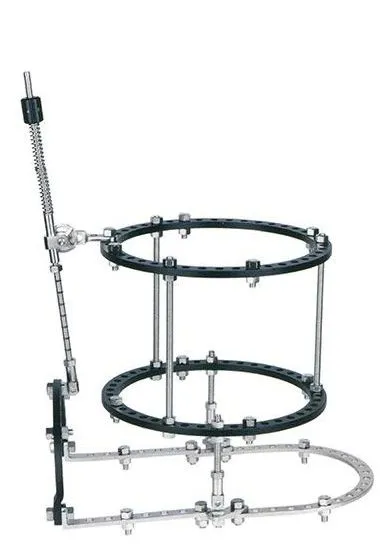

Ankle Joint Fixator
Ankle Joint Fixator
Used For Equinus

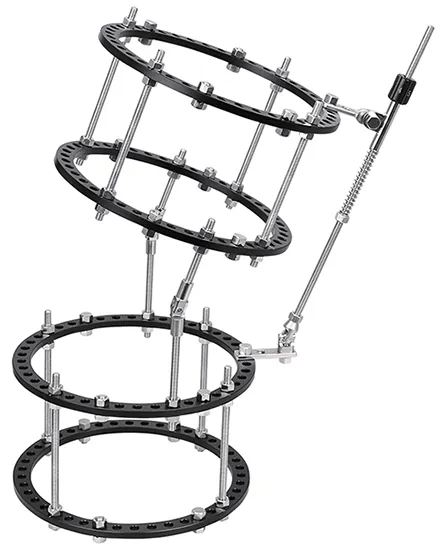

Knee Joint Fixator
Knee Joint Fixator
Used For Knee Joint
Frequently Asked Questions
What materials are used in the construction of this external fixator?
The system is primarily crafted from high-grade Titanium Alloy and Stainless Steel, with specific components utilizing medical aluminum and carbon fiber to enhance fracture visualization.
Is this modular fixation system reusable?
Yes, the external fixator is designed to be reusable, offering a cost-effective and reliable solution for bone fixation.
Which medical certifications does the product hold?
The External Fixator is fully compliant with international standards, holding both CE and ISO13485 certifications.
How does the independent bone screw arrangement benefit surgery?
It allows for precise and independent placement of screws, making it highly adaptable for treating both proximal and distal fractures with unmatched stability.
What makes the surgical procedure more efficient with this device?
The state-of-the-art snap-fit design significantly streamlines the assembly process, helping medical professionals reduce overall surgical timelines.
For which parts of the body can these fixators be used?
Our modular range includes specific designs for the Tibia, Femur, Humeral, Ankle Joint (Equinus), and Knee Joint.
