| Model NO. | PD-GM-04 | Certification | CE |
| Application | Commercial | Material | Steel |
| Type | Ground Bracket | Wind Speed | 60m/S |
| Snow Load | 1.4kn/M2 | Surface Treatment | Magnesium Aluminum Zinc |
| Standard | AS/NZS1170/Jisc8955:2017 | Lead Time | 7-15 Days |

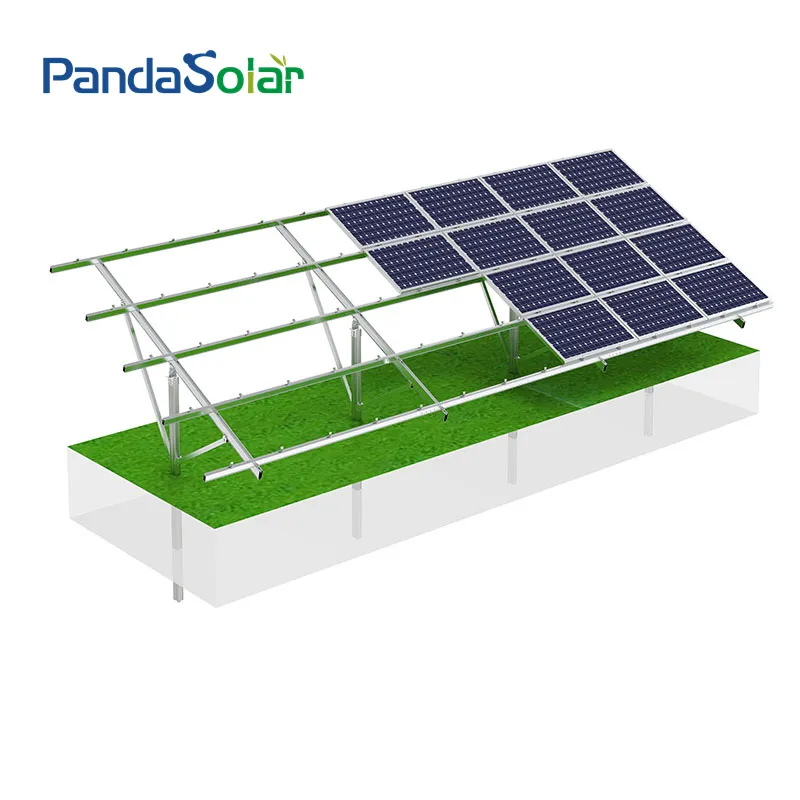

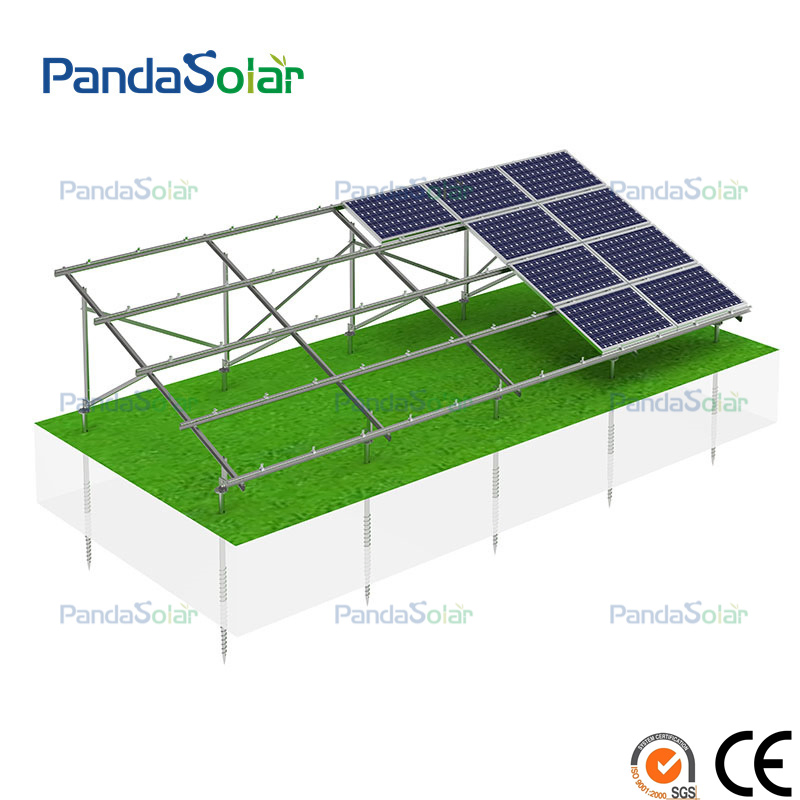

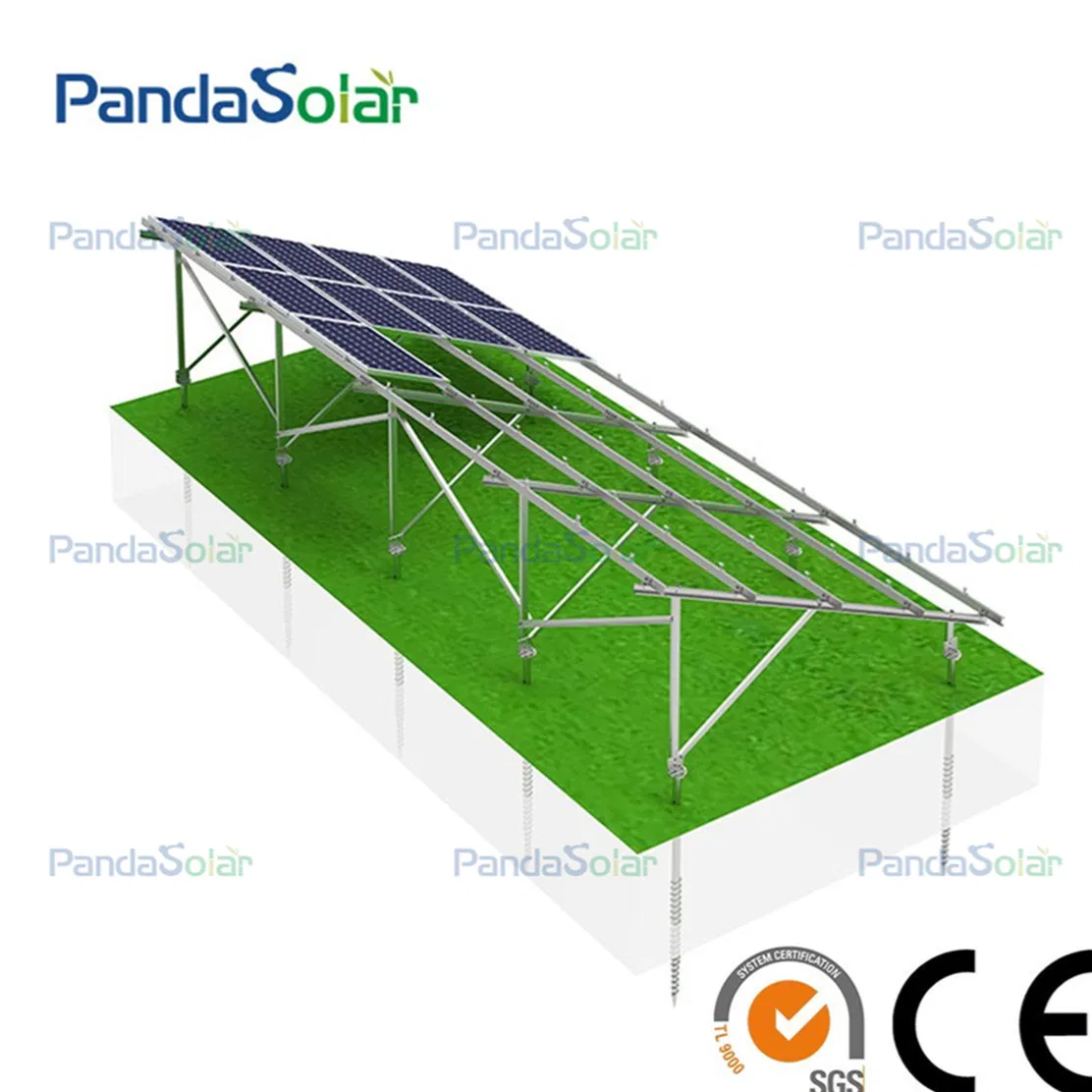

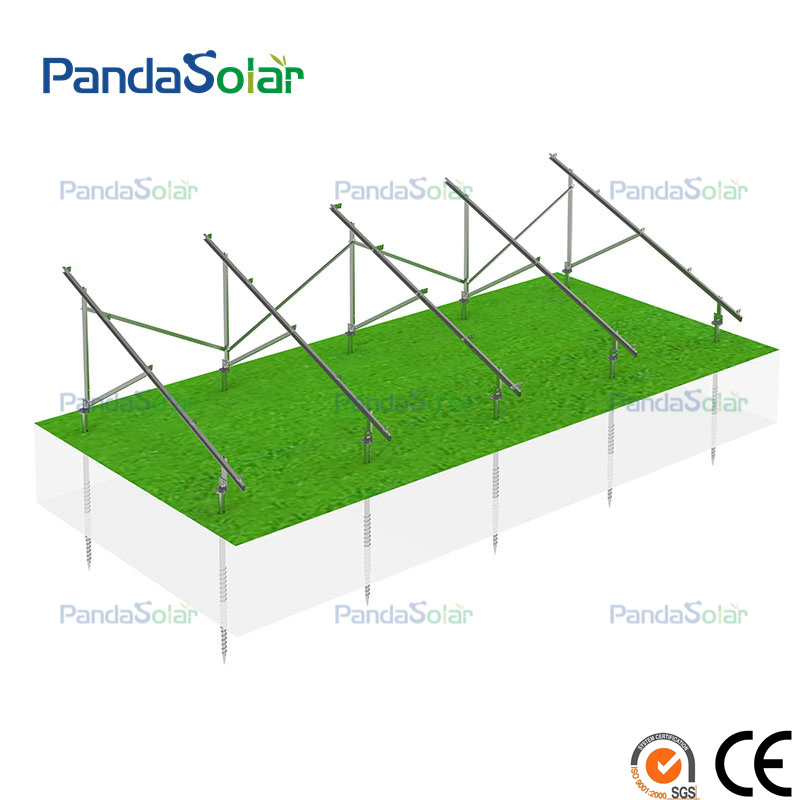

Magnesium Aluminum Zinc Ground Mounting Systems are strictly designed according to maximum wind speeds and snow loads. This solution ensures high strength while optimizing installation efficiency and labor costs. Foundations include ground screws, straight-in piling, or cement piers.

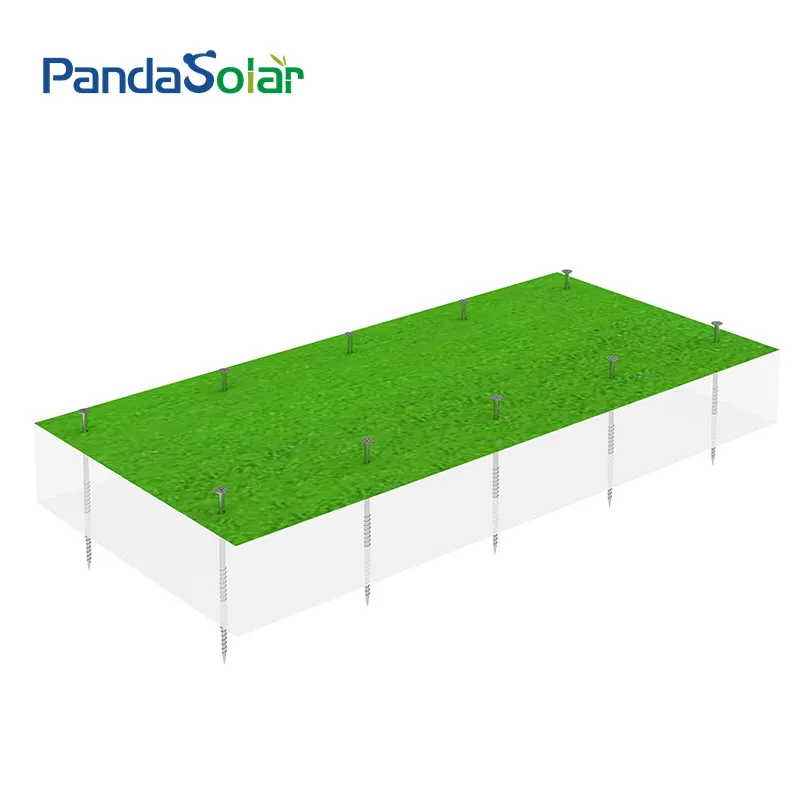

Anchoring the support structure to the ground using specialized drilling equipment. Depth is determined by soil type to ensure stability.

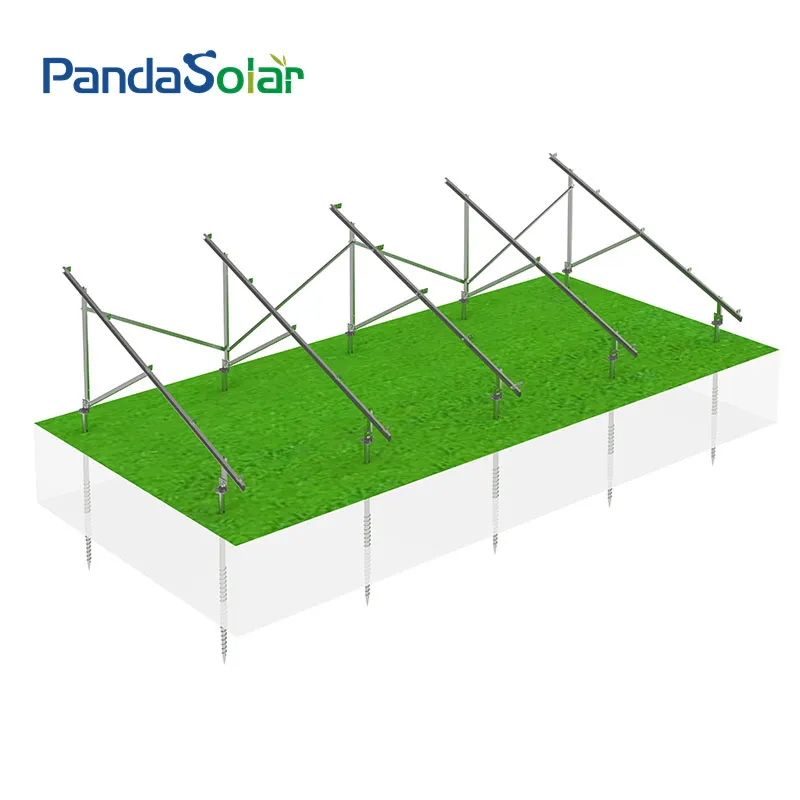

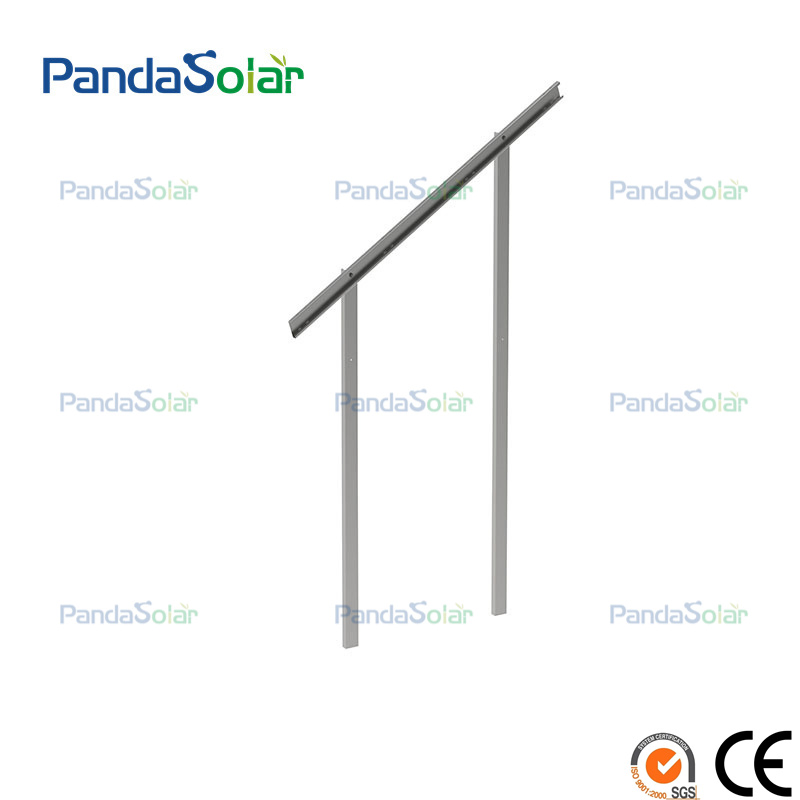

Once foundations are set, diagonal support poles are connected to the top of the columns using high-strength bolts and nuts.

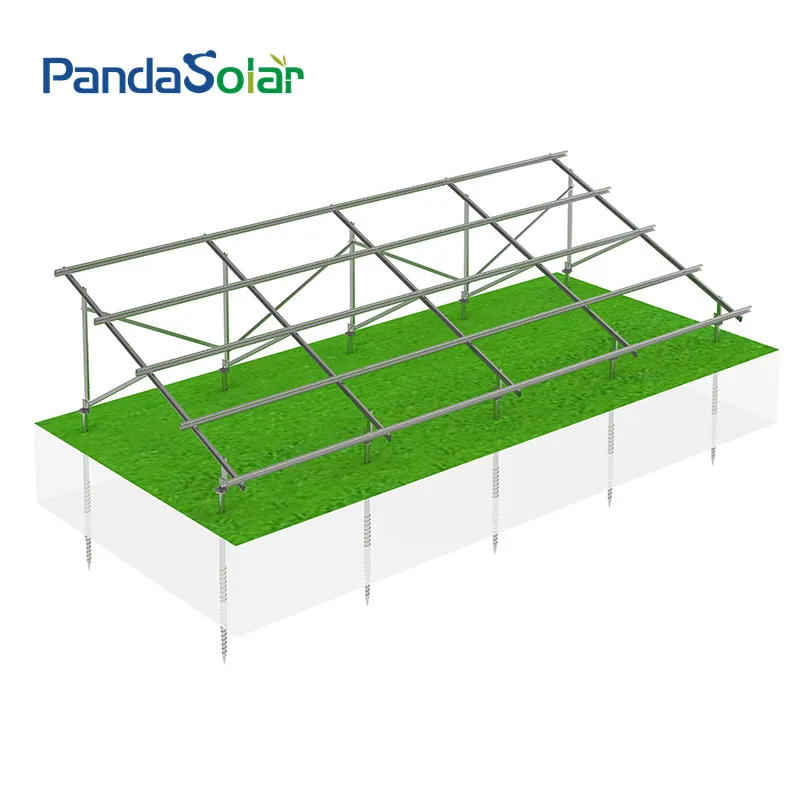

Attach the rails that support the solar panels to the beams using brackets. Ensure all rails are perfectly level.

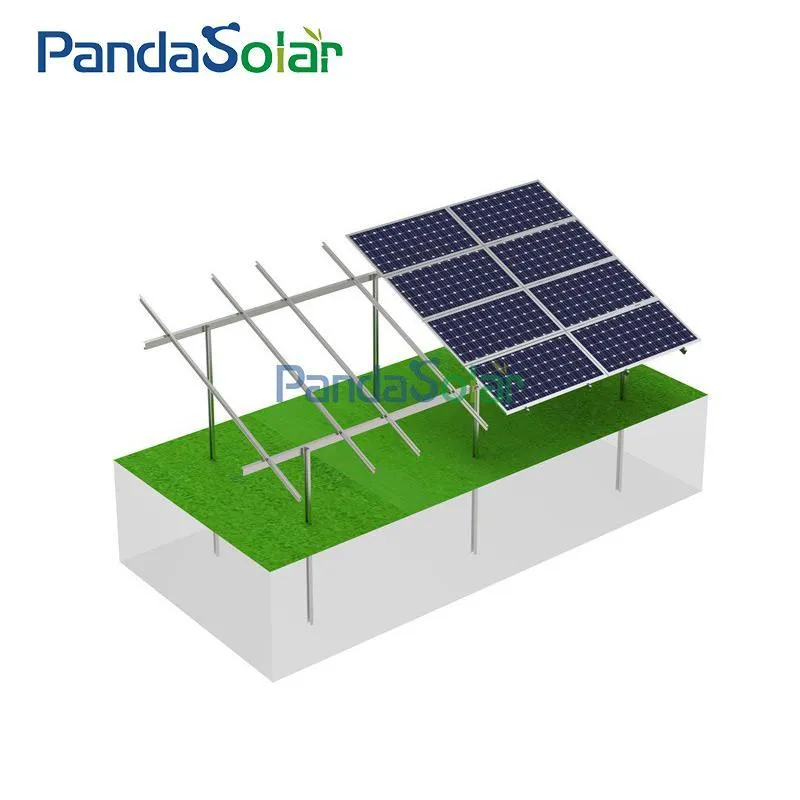

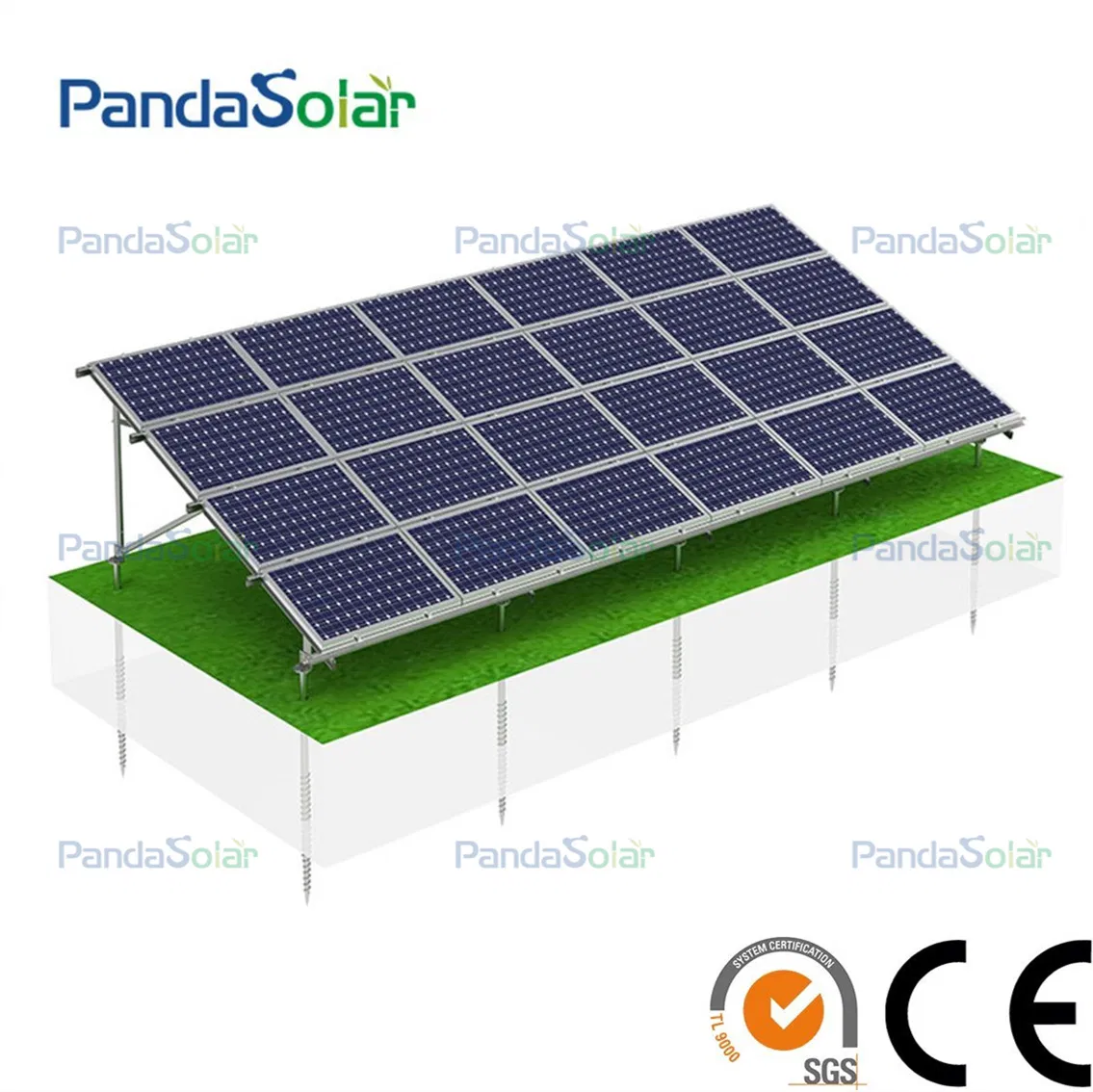

Secure the solar panels to the rails using specialized mounting hardware, ensuring each panel is fastened tightly.
| Structure Material | Mg-Al-Zn & AL-6005-T5 (Anodized) |
| Components | SUS304 & AI6005-5 (Anodized) |
| Tilt Angle | 0-60° |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |

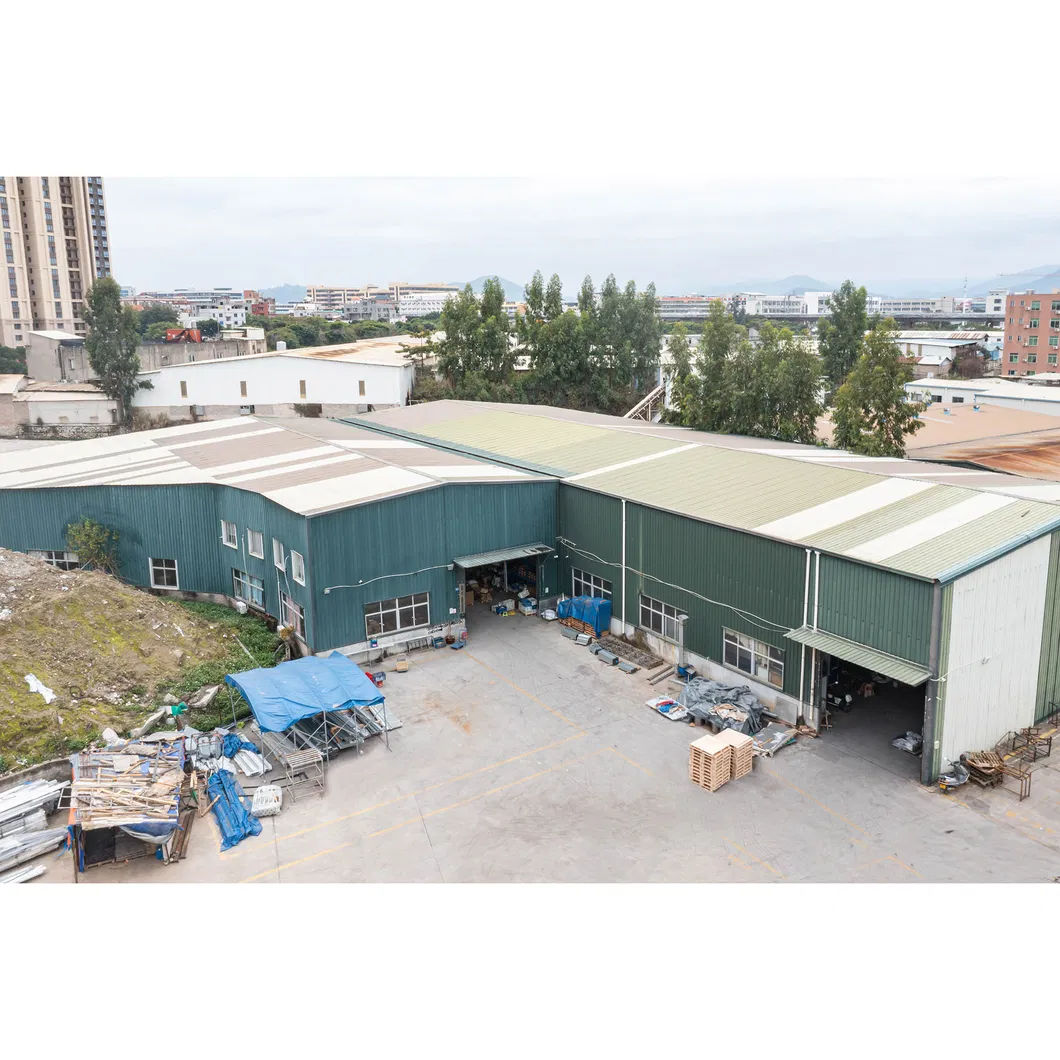

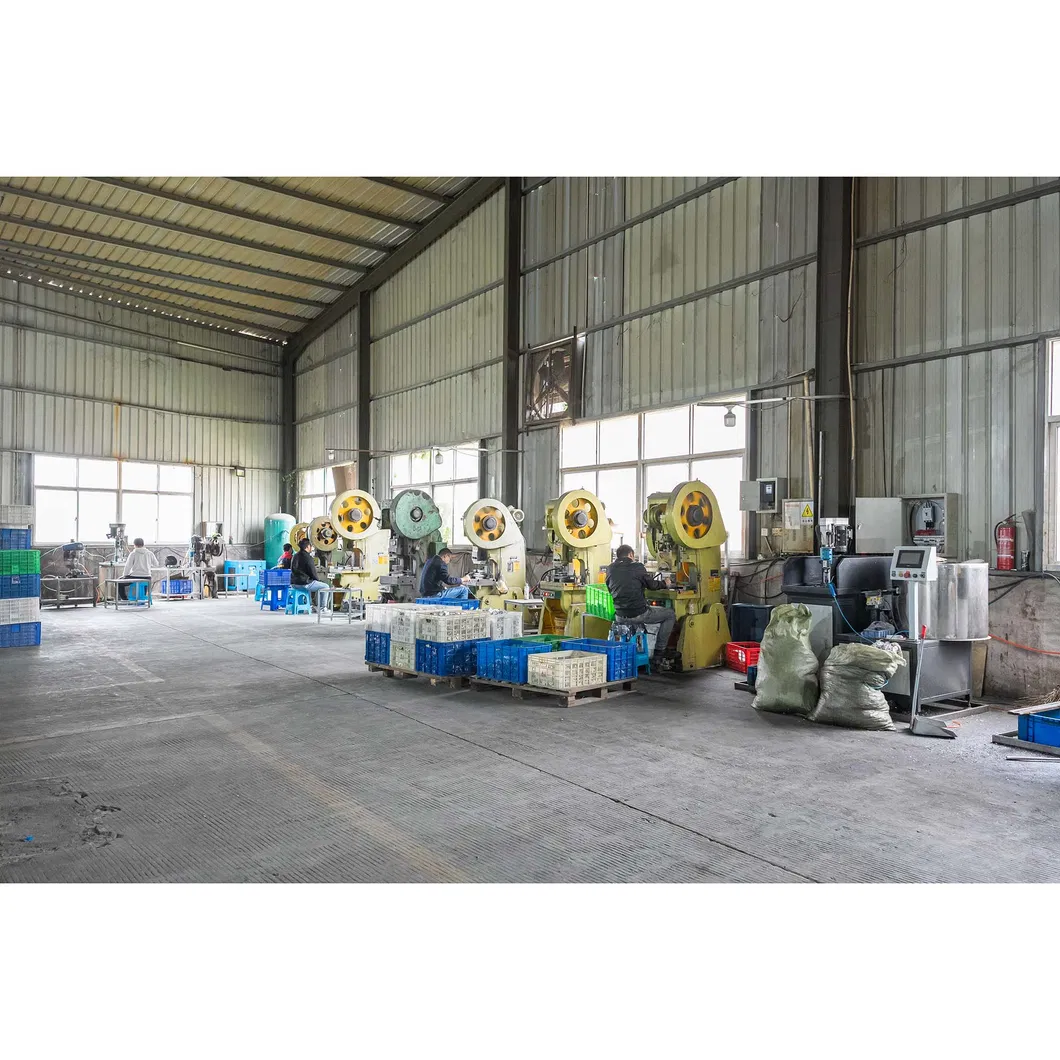

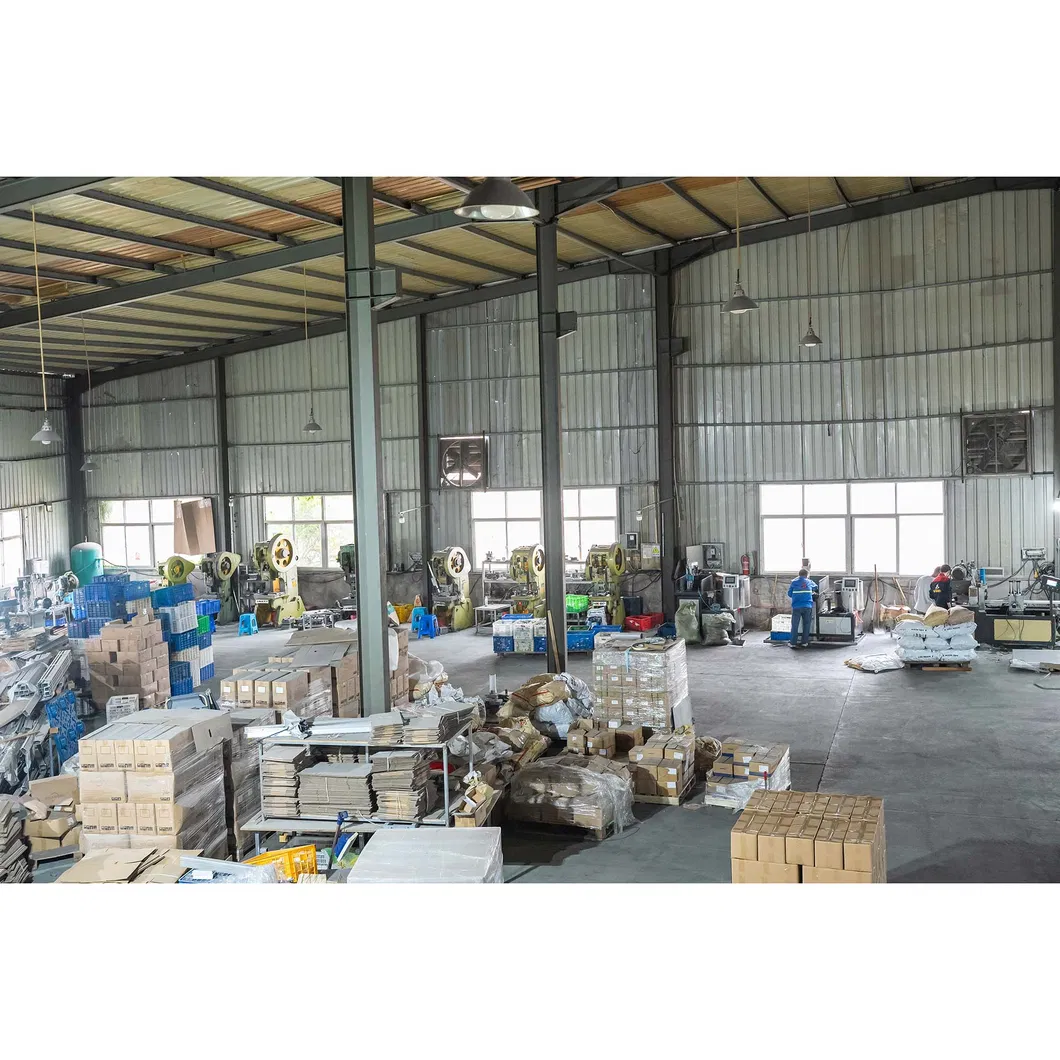

Equipped with professional processing workshops for aluminum alloy and steel (Magnesium Aluminum Zinc). Capabilities include independent cutting, drilling, stamping, and forging with a monthly productivity of 40-50MW.
