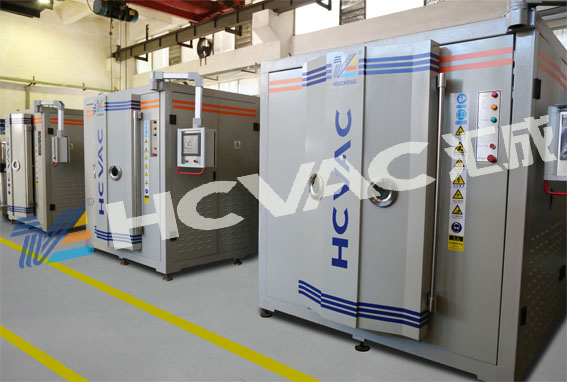

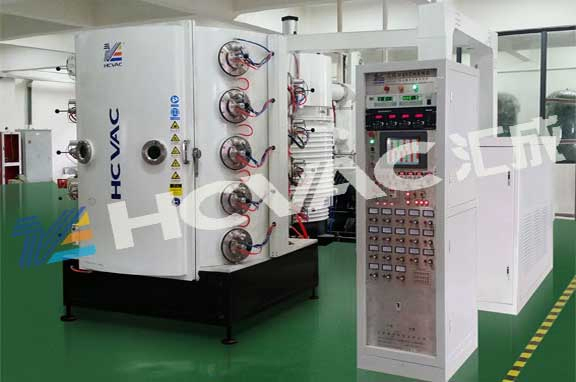

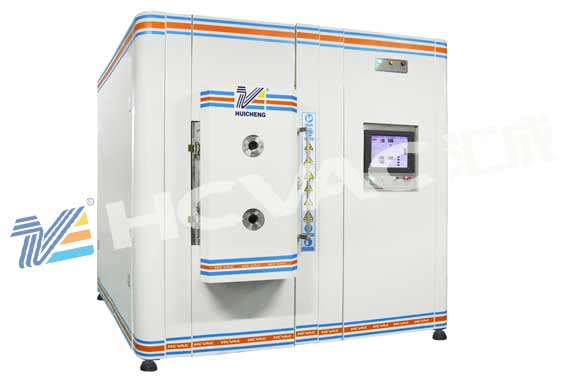

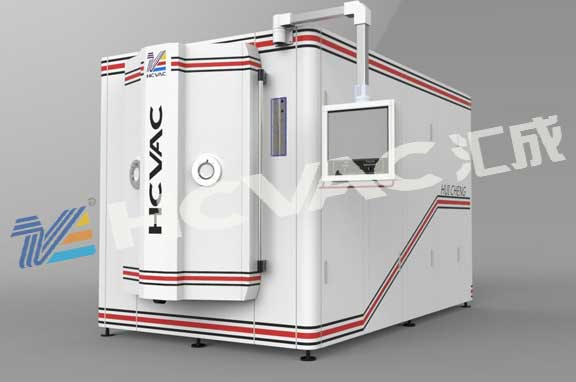

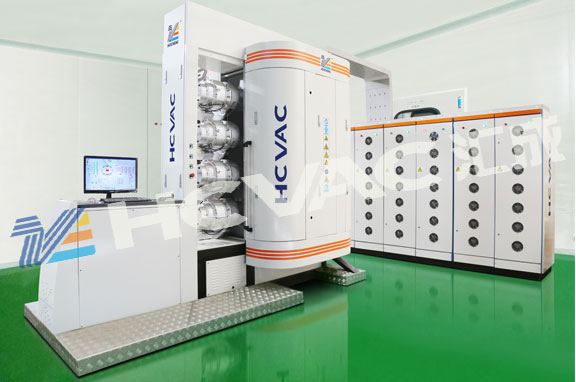

Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
1 / 5
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System

Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System

Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

Technical Specifications

Type:PVD Vacuum Coating Machine
Coating:Vacuum Coating
Substrate:Steel, Metal, Non-metal
Certification:CE, ISO9001
Condition:New
Product:Ion Plating Equipment
Structure:Vertical, Single Door
Control System:Manual/Automatic All-in-One
Operating System:PLC Touching Screen
Coating Color:Gold, Rosegold, Silver, Black, Blue, etc.
Chamber Material:Stainless Steel
Origin:China

Product Overview

Titanium nitride gold PVD ion plating equipment, Vacuum gold plating system

PVD Ion plating equipment is a high-efficiency, harmless, and pollution-free ion coating machine. It features a fast deposition rate, high ionization rate, significant ion energy, easy operation, low cost, and large productive capacity.

Key Characteristics

  • Integrates cold cathode arc discharge self-sustained light pulse technique.
  • Advanced magnetron sputtering technology for thinning particles and improving film properties.
  • Capable of coating both metal and non-metal surfaces.
  • Highly efficient multi-functional equipment completing processes in short cycles.
Applied Industries:
This equipment is extensively used for ultra-hard coatings on tools and moulds, and decorative coatings for automotive wheels, ceramics, golf equipment, watchmaking, hotel products, sanitary ware, luminaires, optical frames, and general hardware.

Equipment Showcase

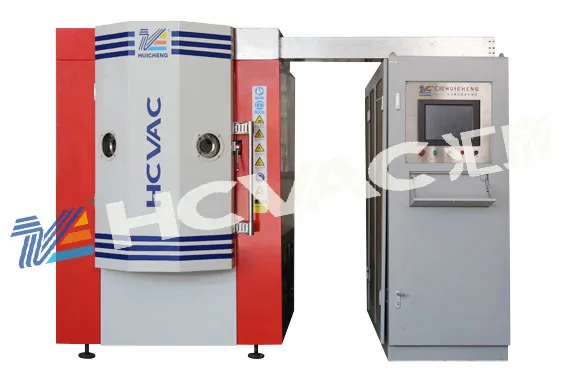

PVD Ion Plating Equipment

Coated Samples

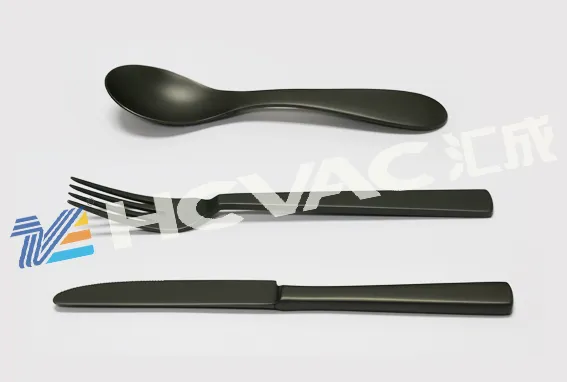

Coated Sample 1

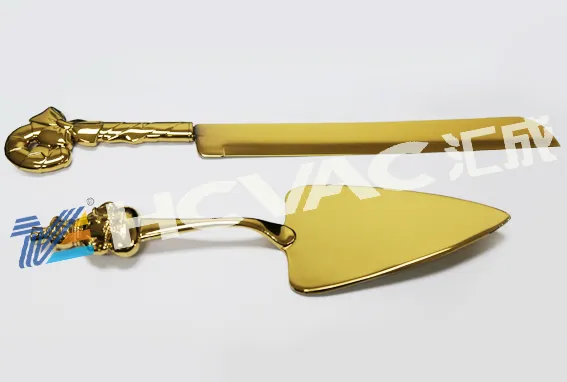

Coated Sample 2

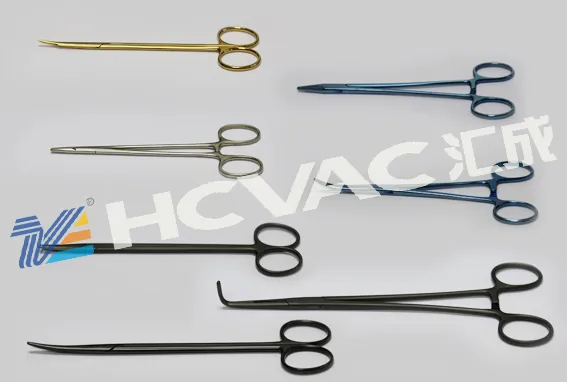

Coated Sample 3

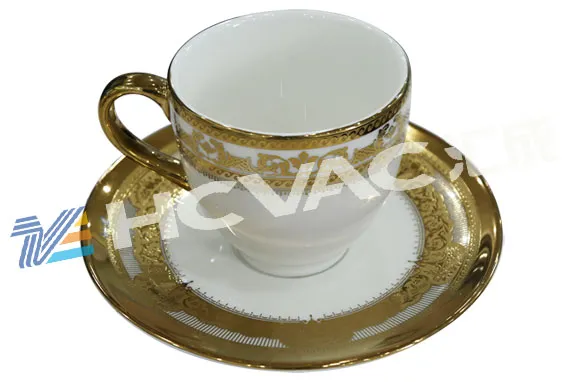

Coated Sample 4

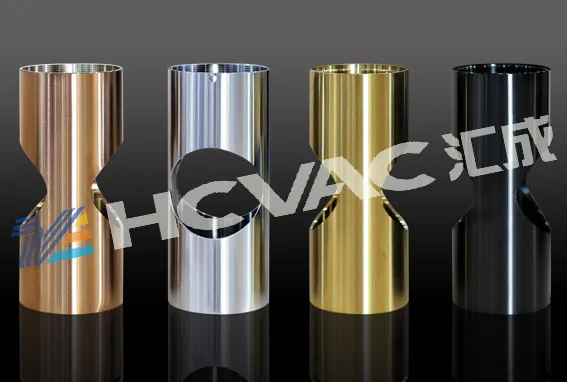

Coated Sample 5

Detailed Parameter Table

Mode / Dimension LH-800 LH-1250 LH-1416 LH-1618
Chamber Size 800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Configuration 8 multi-arc targets 12 multi-arc targets 14 multi-arc targets 20 multi-arc targets
Power Source Electric-arc power, Filament power, Pulsed bias power supply
Gas Control Mass flowmeter + Electromagnetic ceramic valve
Vacuum Structure Vertical side opening door, pump system postposition, double water cooling
Vacuum System Molecule/Diffusion pump + Roots pump + Mechanical pump (Up to 5.0*10 -5 Pa)
Temperature Normal to 350°C PID control, radiation heating
Motion Mode Public rotation Frequency control: 0-20 RPM
Control Mode Manual/Automatic/PC/PLC + HMI (Four options)

Frequently Asked Questions

What materials can be coated with this PVD machine?
The system is versatile and can coat a wide range of metal surfaces (such as steel, titanium, and copper) as well as non-metal substrates like ceramics and glass.
What colors can the equipment produce?
It can achieve various decorative colors including Gold, Rose Gold, Silver, Black, Blue, and more, by using different target materials and reactive gases.
Is the PVD coating process environmentally friendly?
Yes, PVD ion plating is an eco-friendly, pollution-free process that does not produce harmful waste or chemicals, making it a green alternative to traditional electroplating.
Can the machine size be customized?
Absolutely. While we offer standard dimensions like 800mm to 1600mm, we can design the equipment dimensions according to specific technical requirements.
How is the quality of the coating film ensured?
By integrating magnetron sputtering and cold cathode arc discharge, the machine thins particles to create a very dense, super-hard, and highly adhesive film.
What is the control system used?
The machine uses a professional PLC touch screen interface with manual and automatic all-in-one control options for precise operation.
