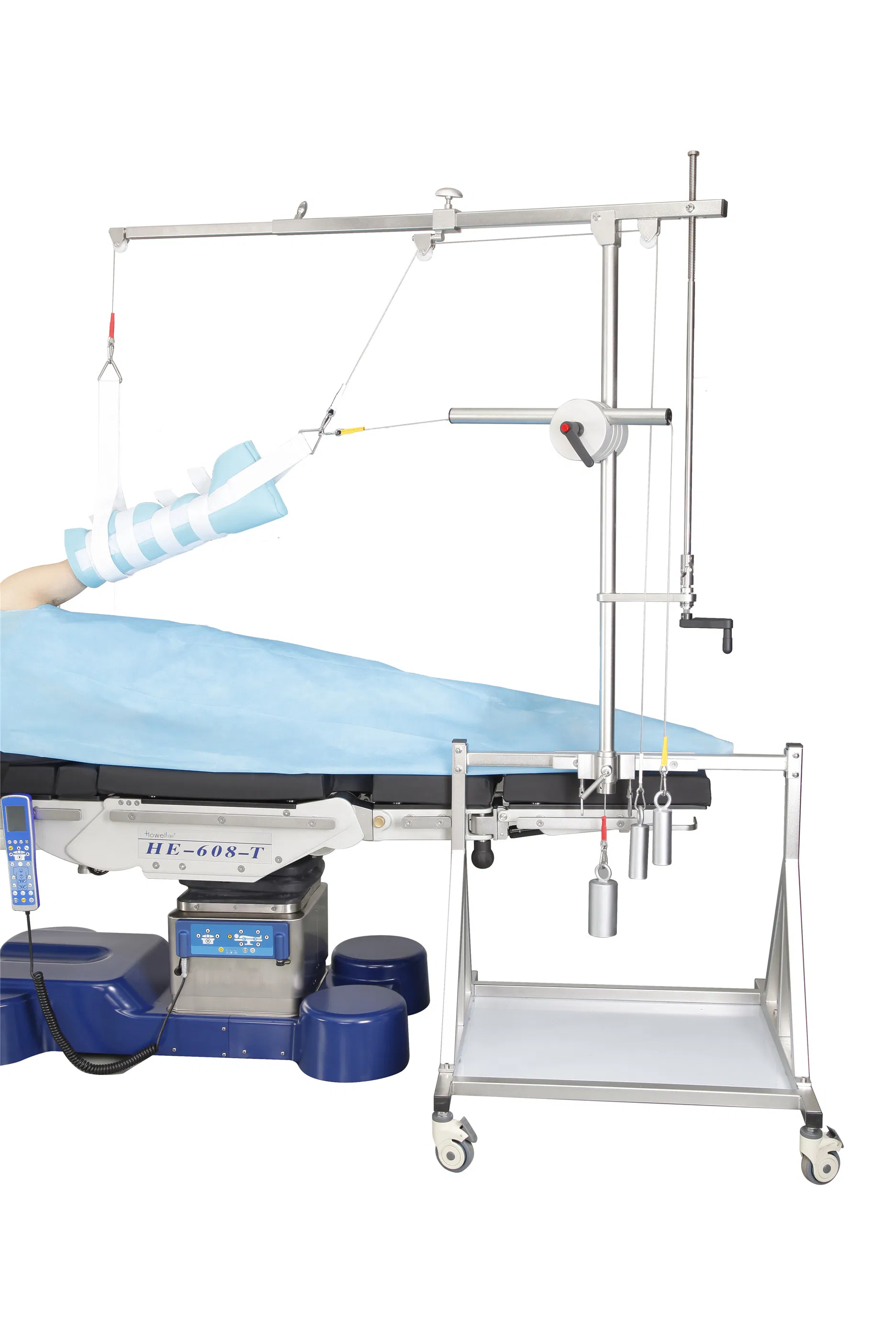

Lateral Decubitus Position Shoulder Arthroscopy Positioning

Product Overview

Model NO.

HE-KTT

Certification

ISO13485, ISO

Group

Adult

C Arm Compatible

Yes

Material

Stainless Steel

Loading Capacity

150kg

Application

Hospital

Warranty

1 Year

Packing

Wooden Case / Carton Case

Production Capacity

5000 Pieces/Month

Product Description

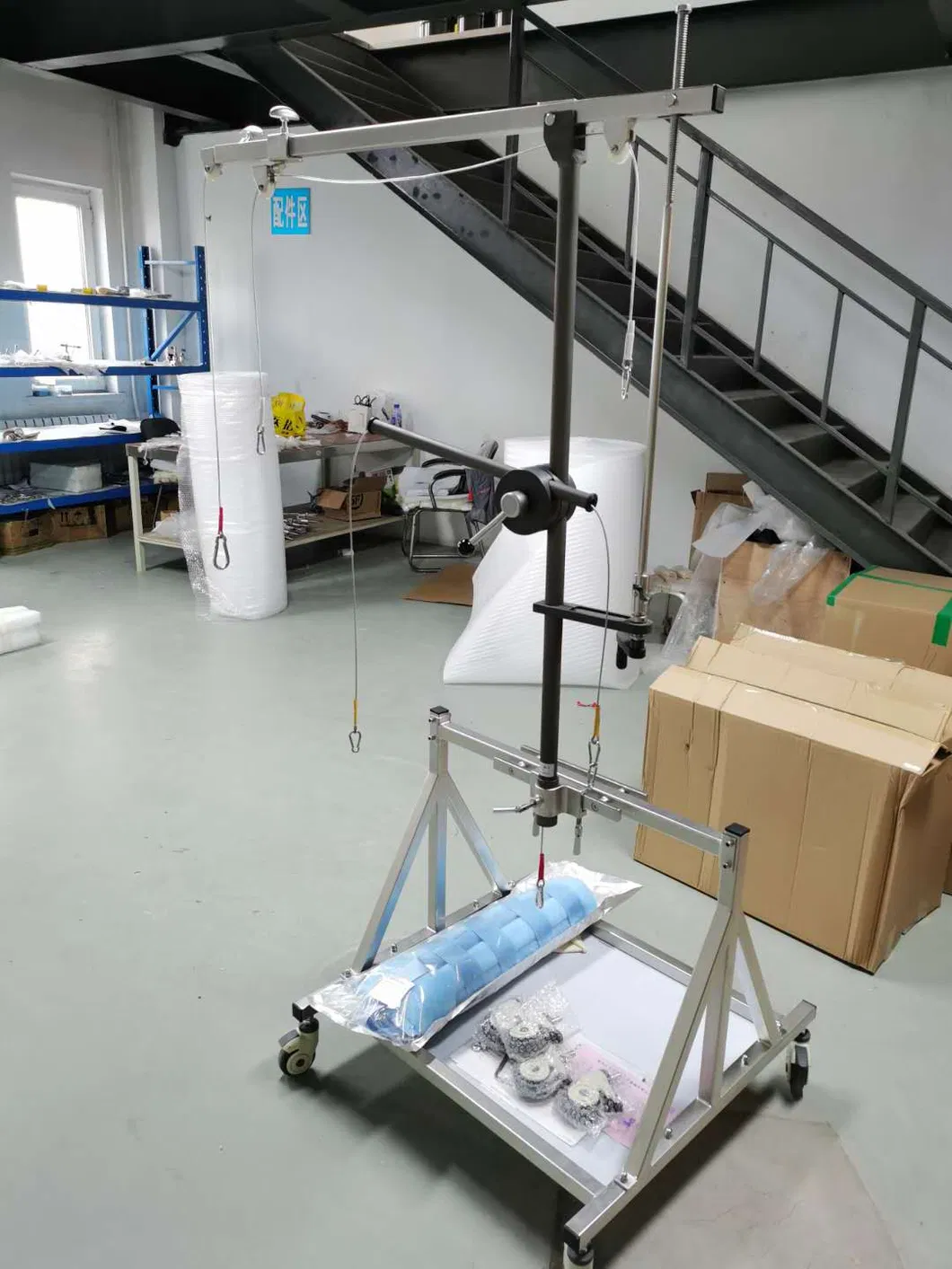

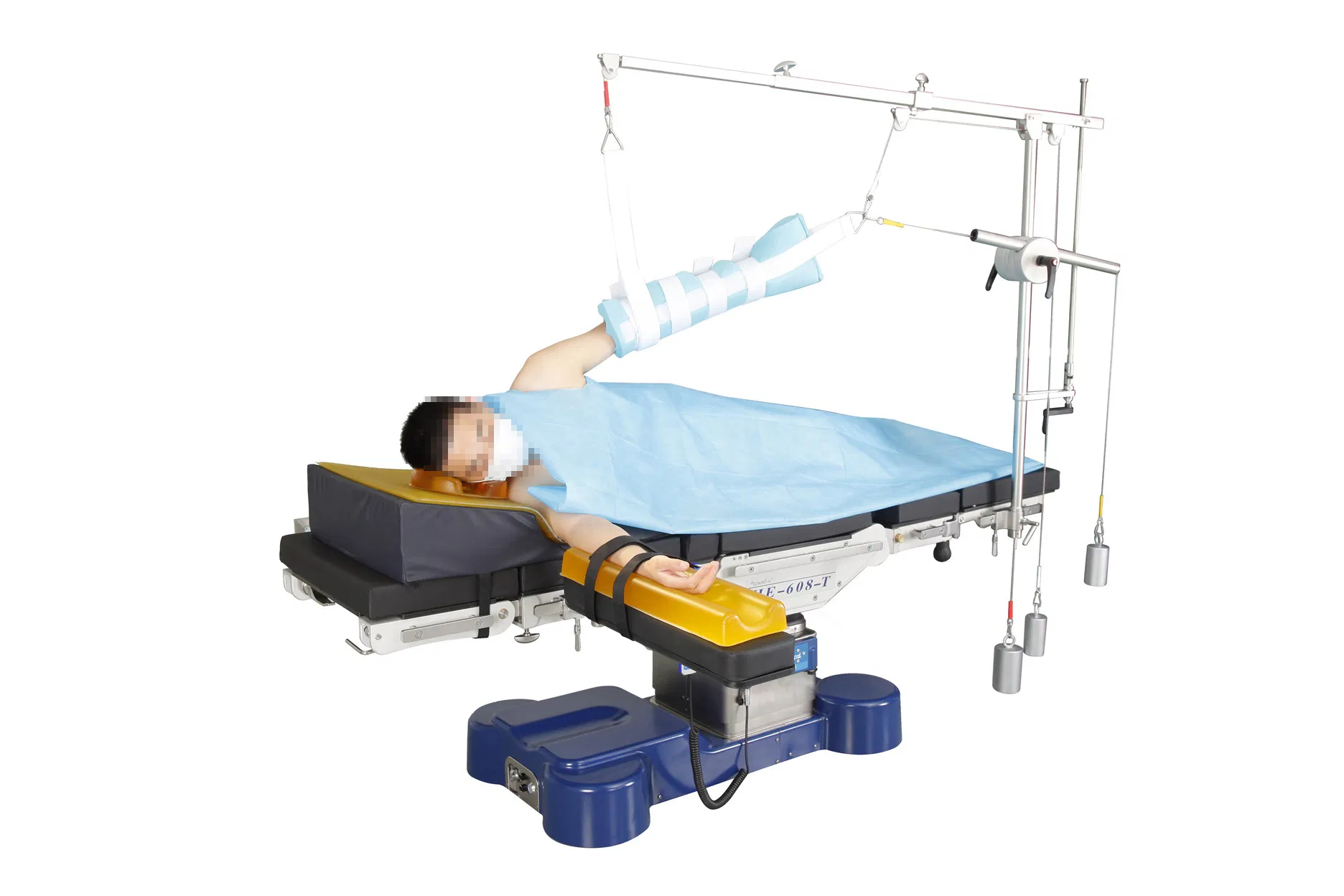

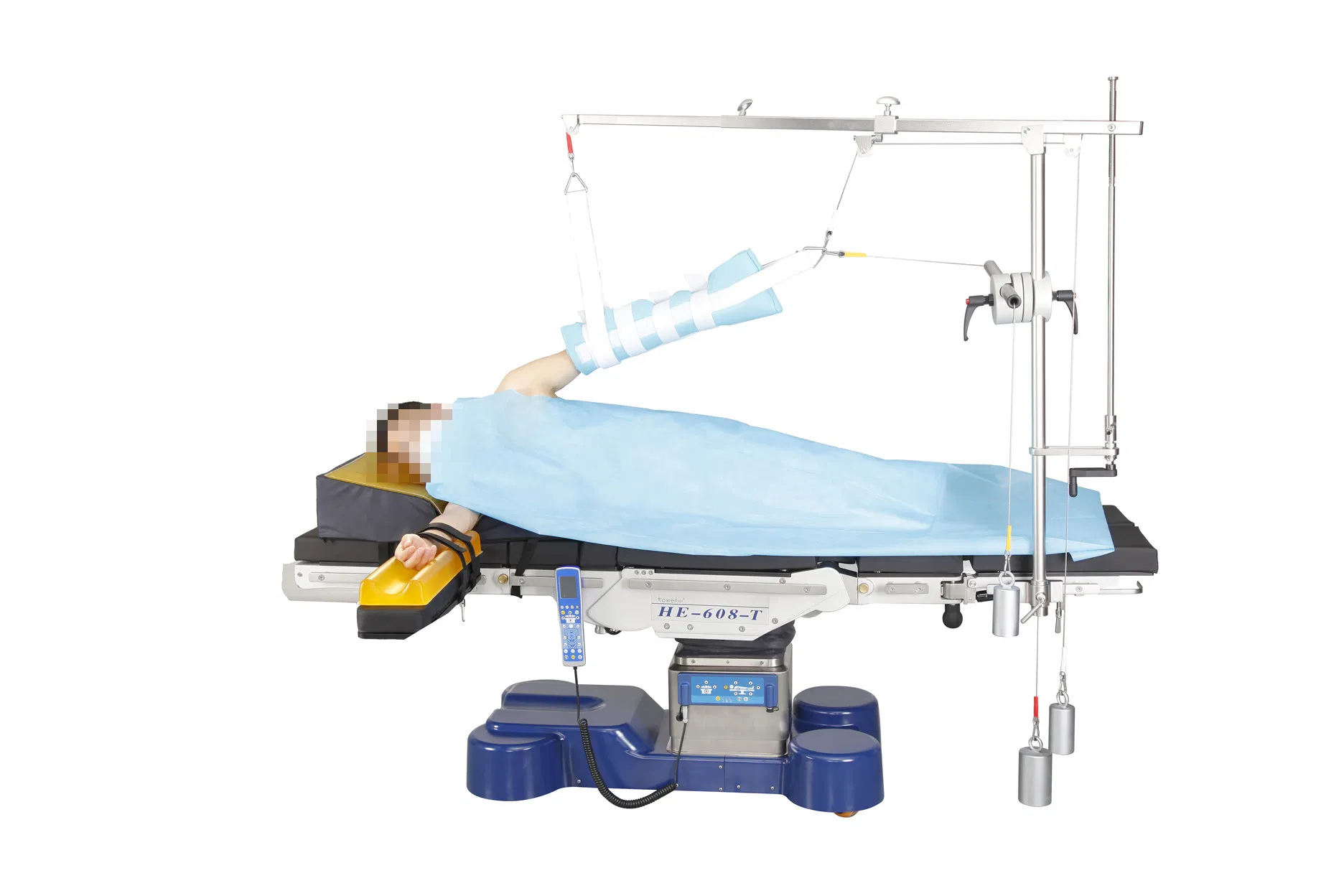

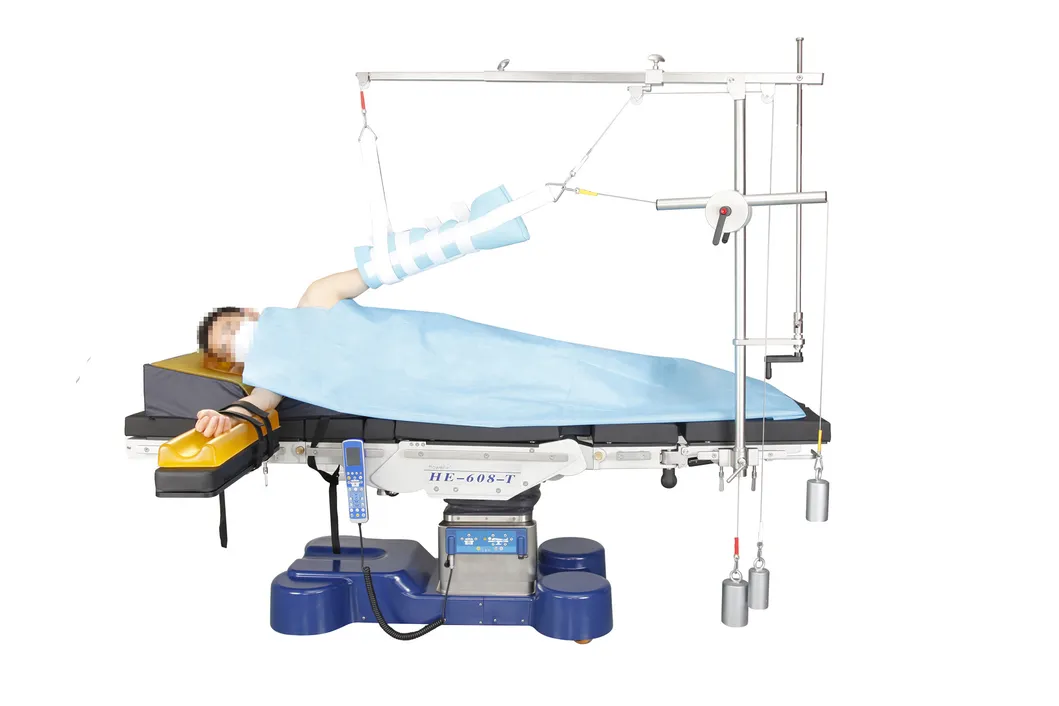

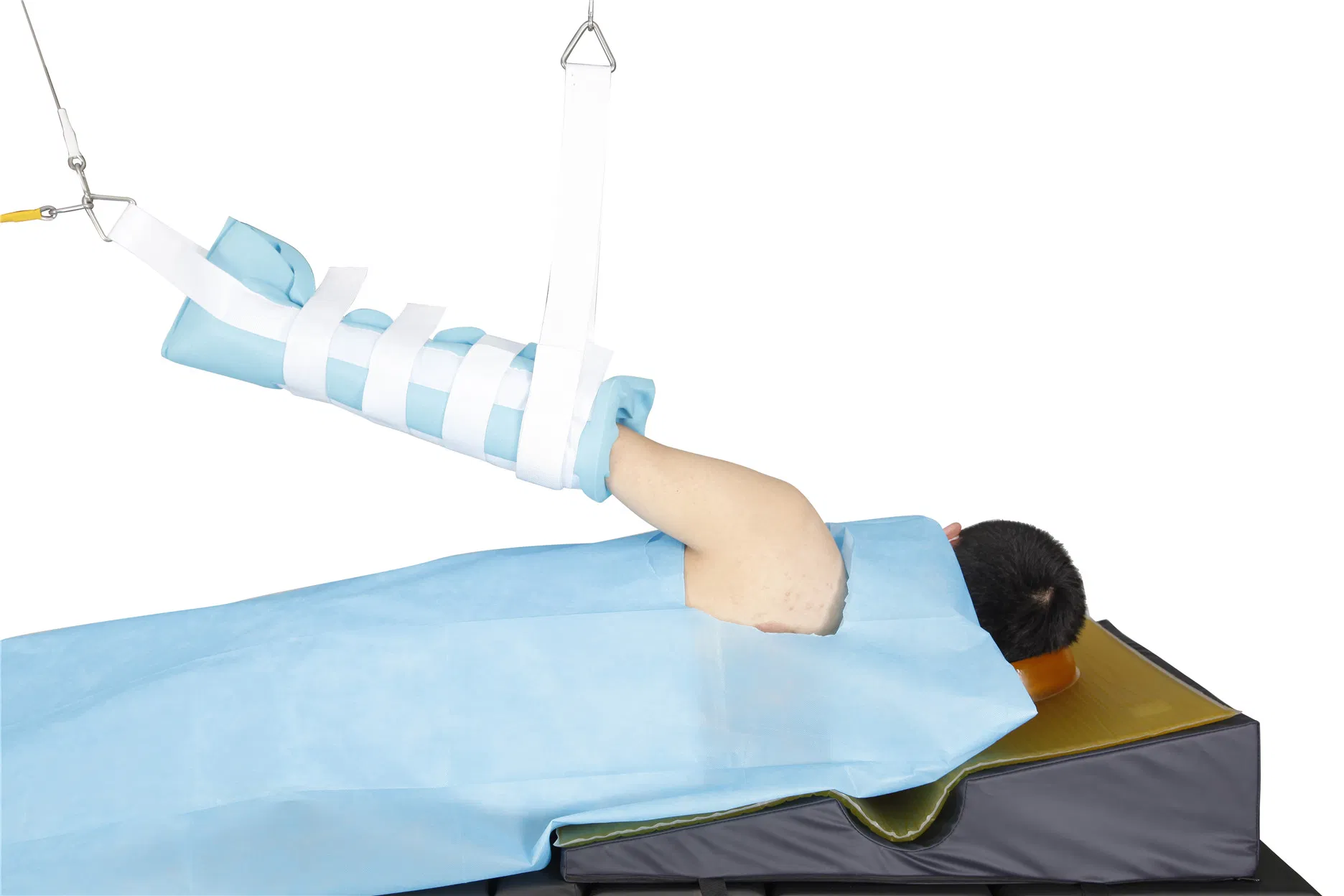

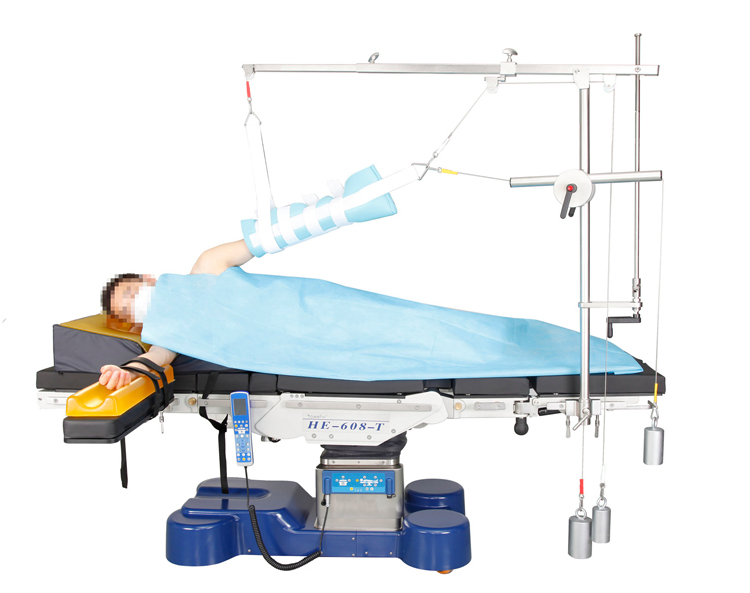

Lateral decubitus position Shoulder Arthroscopy positioning

1

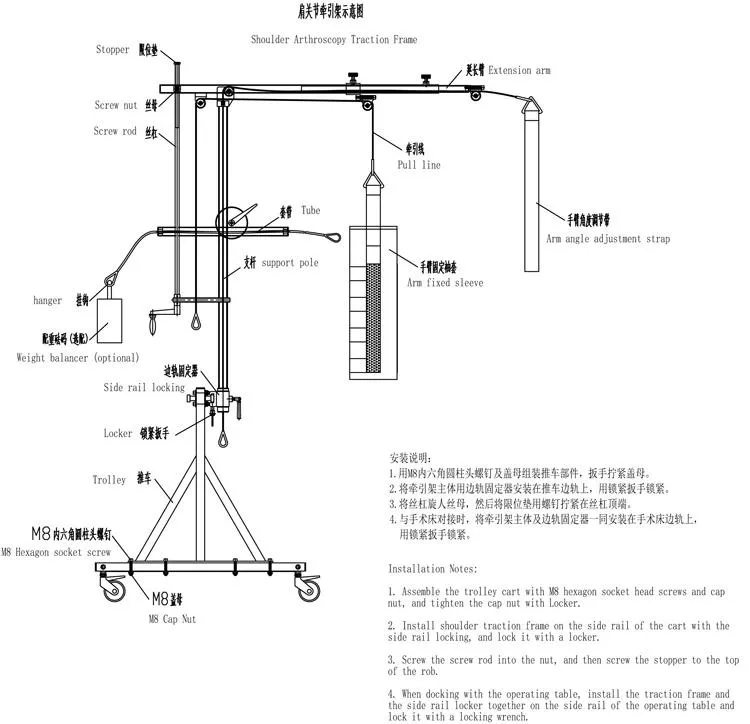

Shoulder joint traction frame is specially designed for shoulder arthroscopy surgery, completing procedures by pulling the arm.

2

Mainly used for muscle tearing, elbow wrist traction, with a simple structure for convenient operation.

3

The system uses a rotation tension adjustment wheel to obtain maximum traction easily.

4

Adjustable traction force, angle, and height; configured according to patient requirements using weight or brine bags.

5

Safe and stable, featuring high/low adjustment and 180° rotation capability.

6

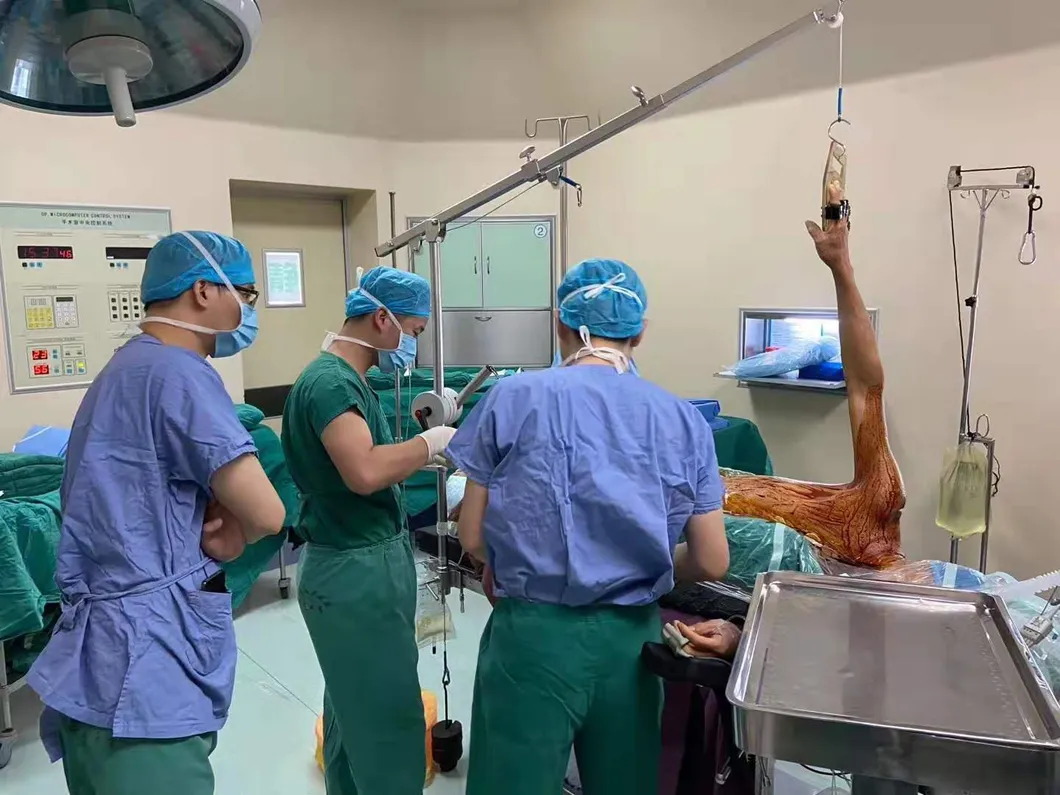

Installed on the edge rail of the operating table for diagonal traction in lying positions.

7

Standard movable trolley included; the main body is foldable for easy storage.

Technical Specifications

Parameter Item	Specifications
Length and Width	1300*1100mm
The traction arm adjust range	750-1250mm
Traction arm up/down adjust angle	±20°
Traction pull line bearing tension	750N
Round rotating device adjust angle	±60°
Side rail locking install size	Customized
Instrument cart size	L 750 * W 730 * H 770mm
