Maxillofacial Locking Micro/Mini & Reconstruction Implant

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

10.01.02.04021000

Condition

New

Usage

Correct Deformities, Fracture Fixation

Using Site

Maxillofacial

Properties

Implant Materials & Artificial Organs

Material

Pure Titanium

Instrument Class

Class III

Warranty

One Year

Service

Online Technical Support

Package

Sterile Package

Certificate

CE/ISO 13485

Origin

Jiangsu, China

HS Code

9021100000

Capacity

10000 pieces/Year

Product Description

⭐ Product Features

✔

Pitch-row of reconstruction plate is a specialized design for fixation during operation, improving stress concentration and fatigue strength.

✔

Locking reconstruction plate acts as a built-in external fixation support, reducing mandible bite force and providing ideal fixation even on osteoporotic mandibles.

✔

Dual Screw Options: Supports both locking and non-locking methods. Locking screws firm lock the plate, while non-locking screws allow angle and compression fixation.

📍 Indications

• Mandible Trauma: Comminuted fractures, unstable fractures, infected nonunion, and bone defects.

• Mandible Reconstruction: Primary or secondary reconstruction for bone grafts or dissociative bone block defects.

💡 Features & Benefits

🔹

Specialized pitch-row design for optimal fixation and reduced fatigue in specific stress areas.

🔹

Internal support mechanism designed for ideal stability in challenging clinical cases.

Technical Specifications

Model	Order No.	Item No.	Specification

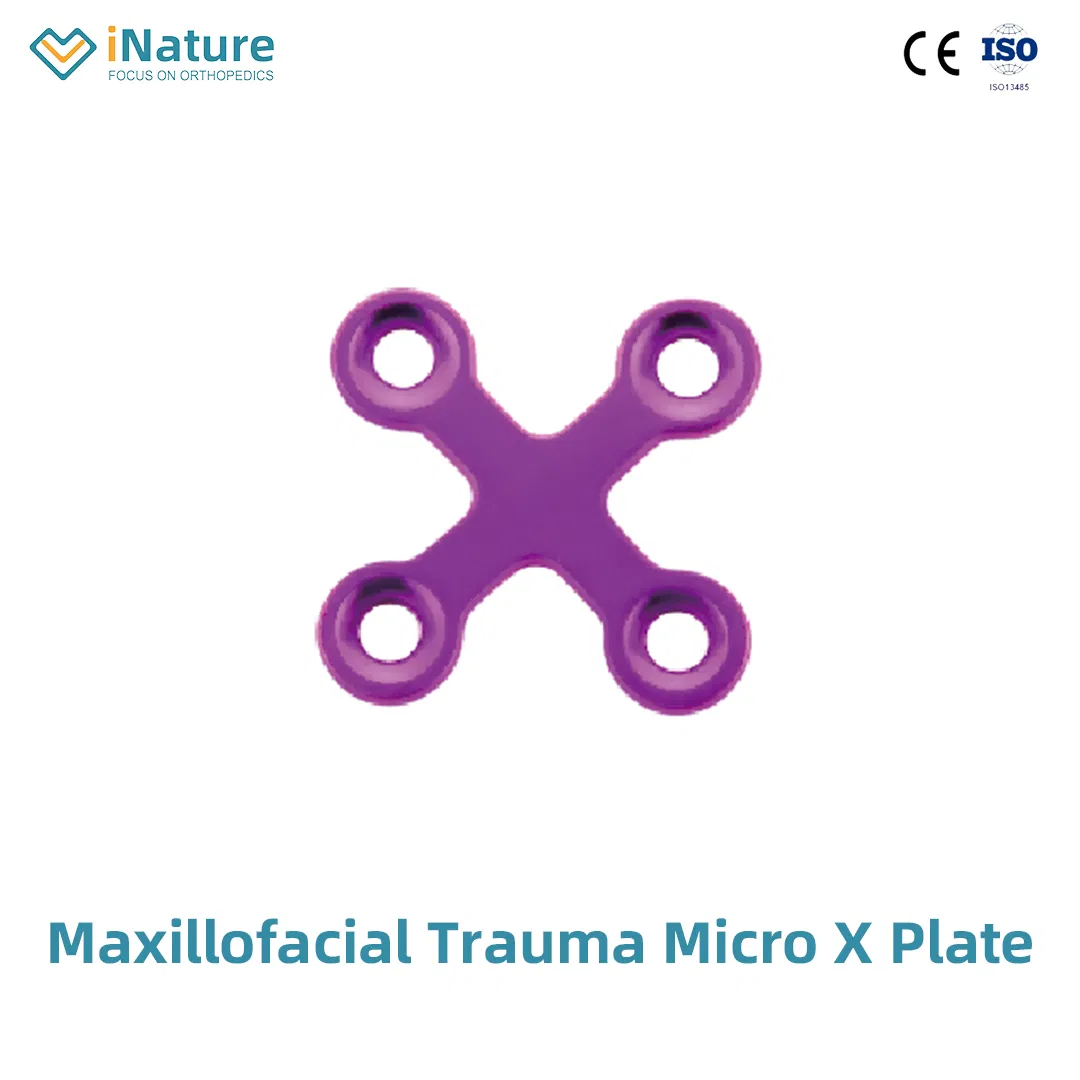

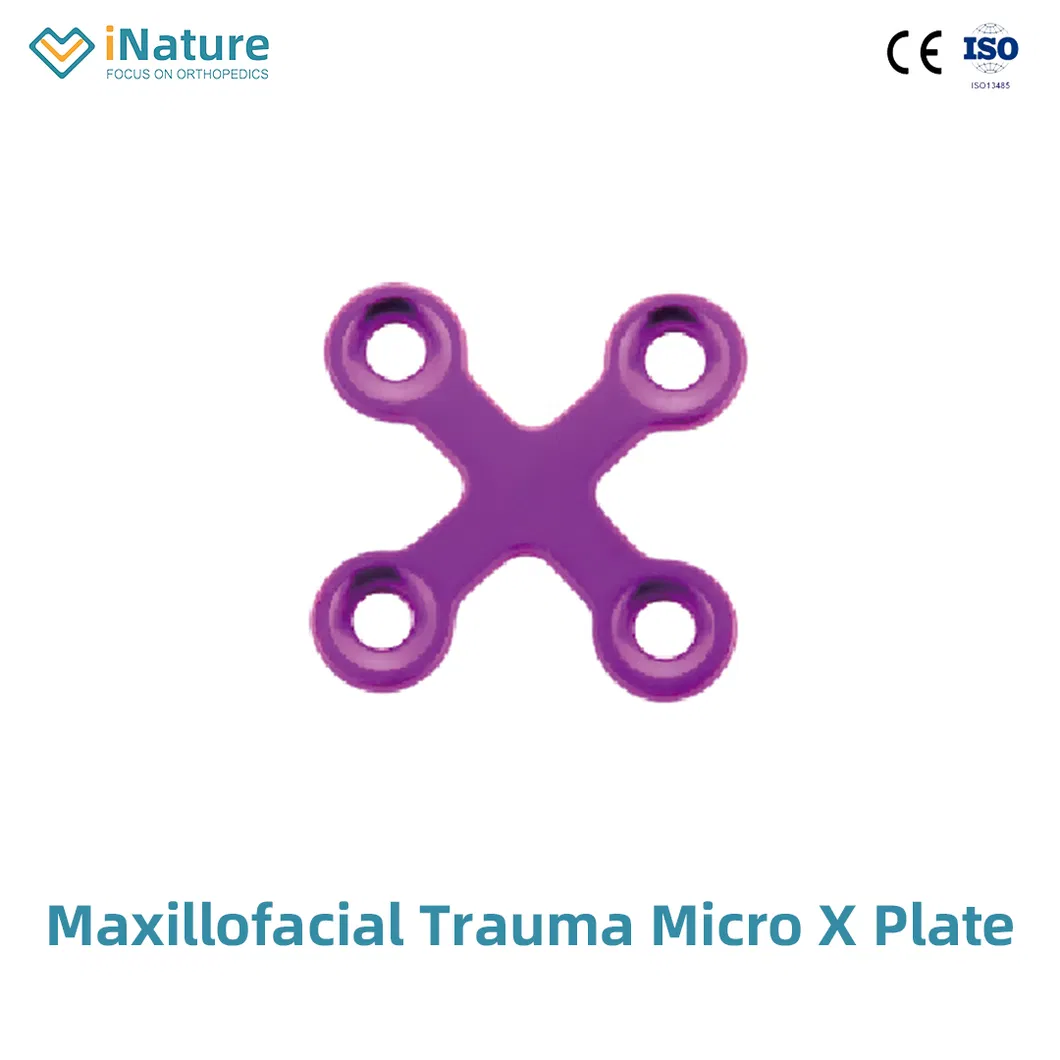

Maxillofacial Micro Locking X-Plate	10.01.02.04021000	0666	4 holes, 0.6mm, 14mm

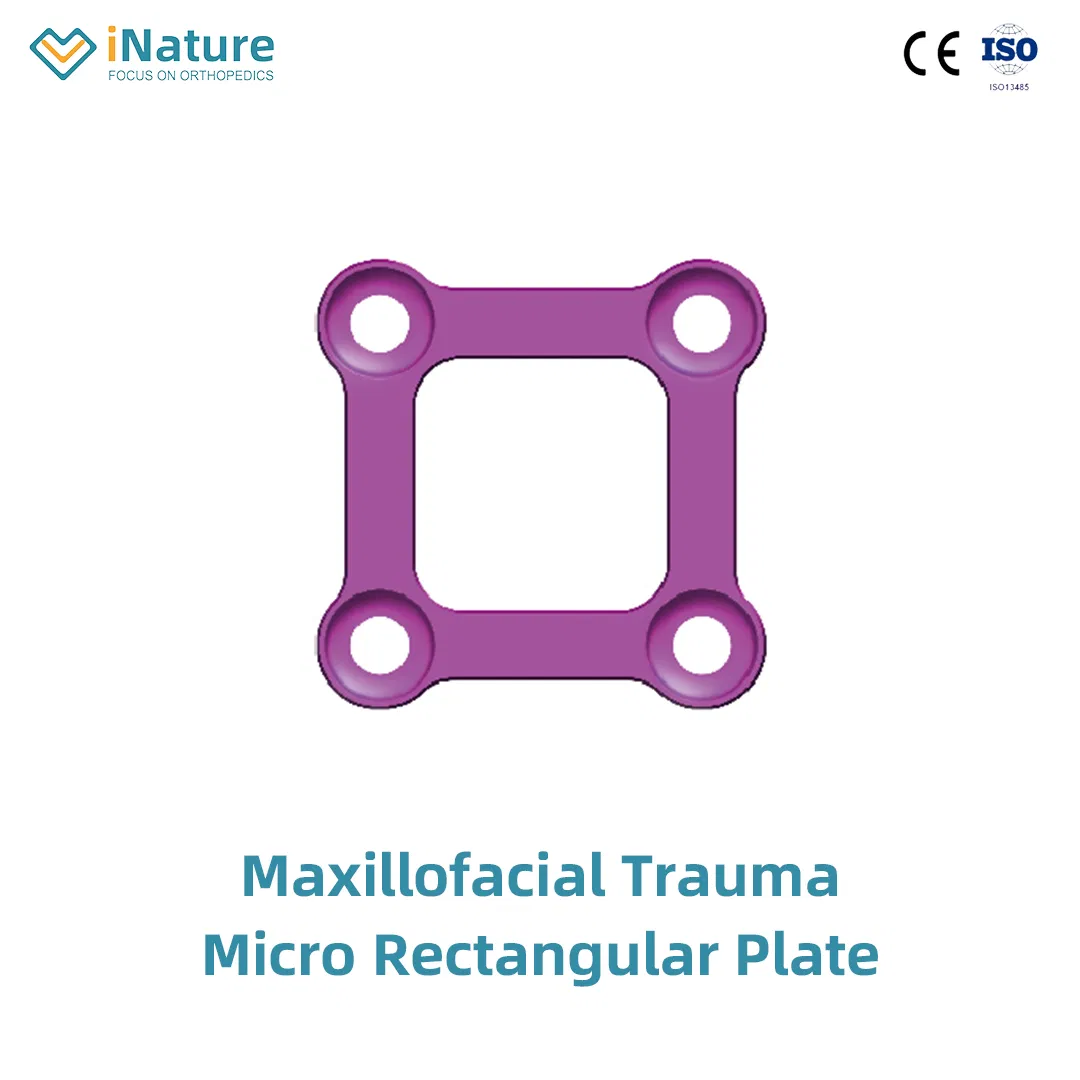

Maxillofacial Micro Locking Rectangular Plate	10.01.02.04023000	0683	4 holes, 0.6mm, 14*14mm

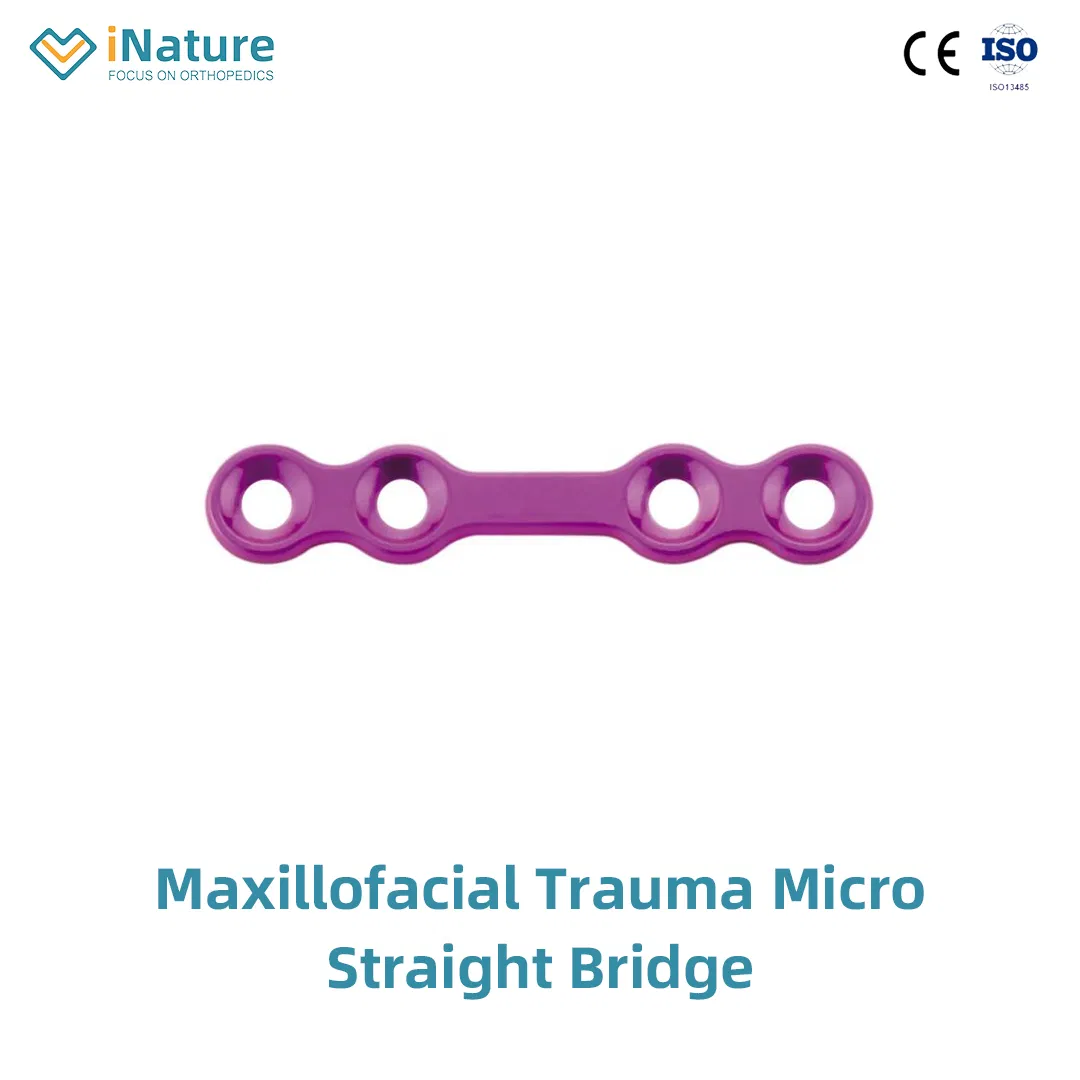

Maxillofacial Micro Locking Straight bridge Plate	10.01.02.04011000	0901	4 holes, 0.6mm, 20mm

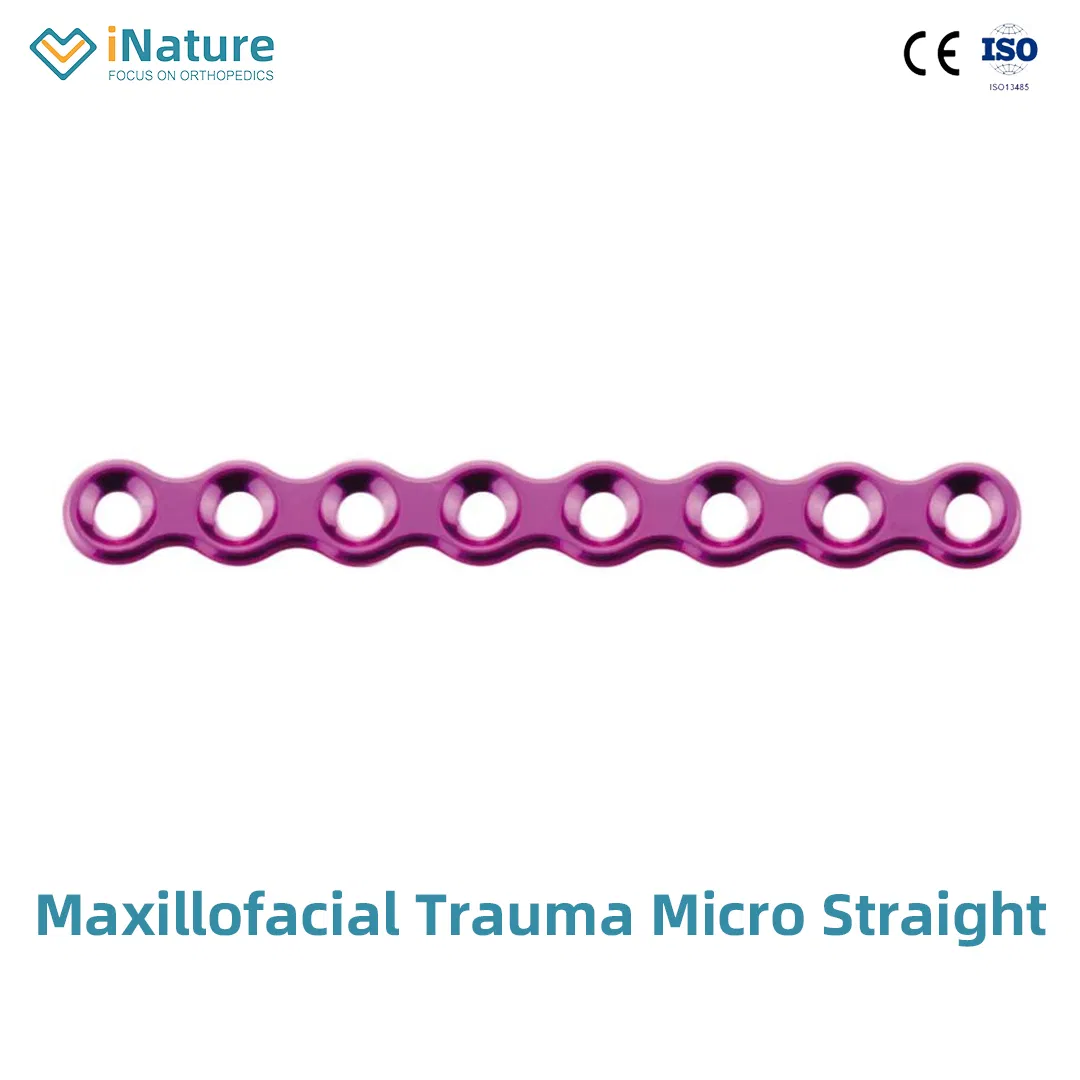

Maxillofacial Micro Locking Straight Plate	10.01.02.06011000	0902	6 holes, 0.6mm, 24mm
	10.01.02.08011000	0903	8 holes, 0.6mm, 32mm
	10.01.02.10011000	0904	10 holes, 0.6mm, 40mm
	10.01.02.12011000	0905	12 holes, 0.6mm, 48mm
	10.01.02.14011000	0477	14 holes, 0.6mm, 56mm

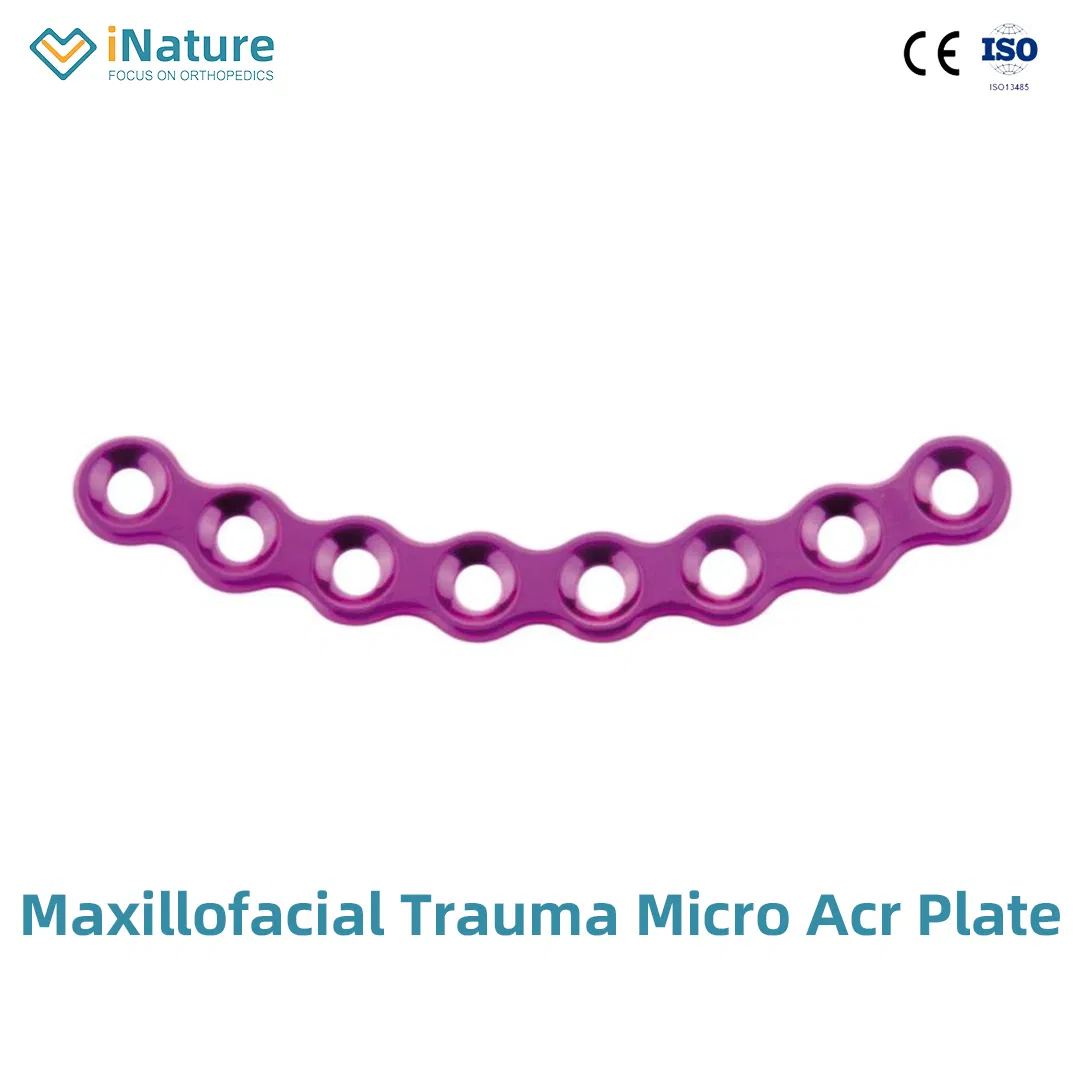

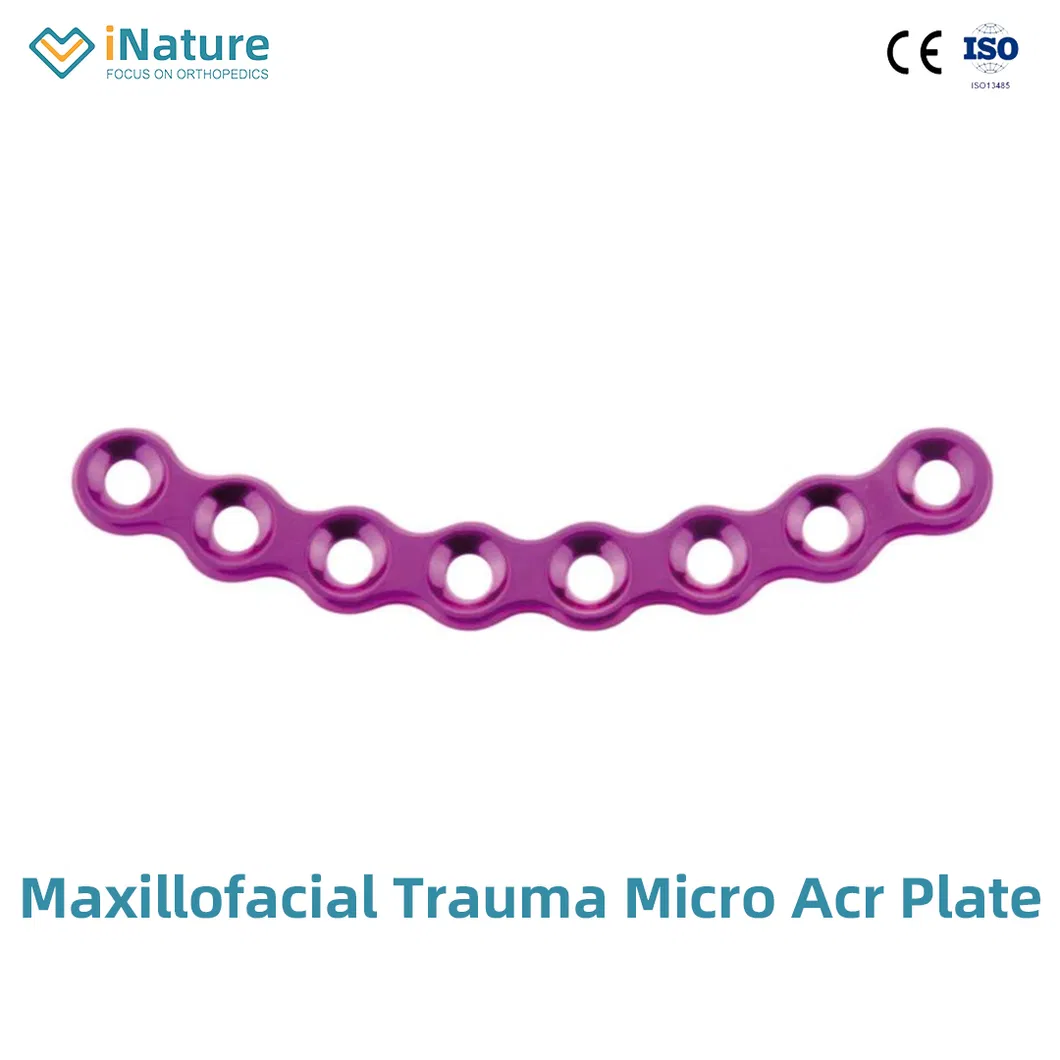

Maxillofacial Micro Locking Arc Plate	10.01.02.06013000	0906	6 holes, 0.6mm, 24mm
	10.01.02.08013000	0907	8 holes, 0.6mm, 31mm
	10.01.02.10013000	0908	10 holes, 0.6mm, 38mm
	10.01.02.12013000	0909	12 holes, 0.6mm, 44mm
	10.01.02.14013000	0680	14 holes, 0.6mm, 49mm

*Prices are for reference only. Exact pricing is based on the latest quotation.

Frequently Asked Questions

What material are the maxillofacial plates made of?

The plates are manufactured from Pure Titanium, ensuring excellent biocompatibility and strength for maxillofacial implants.

What are the primary clinical indications for these implants?

They are primarily used for mandible trauma (comminuted or unstable fractures) and mandible reconstruction following bone grafts or defects.

Does this system support different types of screws?

Yes, the locking maxillofacial reconstruction anatomical plates can realize two fixed methods: locked and non-locked screws.

What certifications do these medical devices have?

The products are CE and ISO 13485 certified, meeting international standards for Class III medical instruments.

How are the implants packaged for transport?

The products come in a sterile package and are shipped in secure cartons to ensure integrity during transit.

What kind of after-sale support is provided?

We offer online technical support and a one-year warranty on the implants.
