Basic Information
Certification
CE, ISO13485
Properties
Implant Materials & Artificial Organs
Package
Sterile/Non-Sterile
Production Capacity
10000 Sets/Month
Product Introduction
Product Features

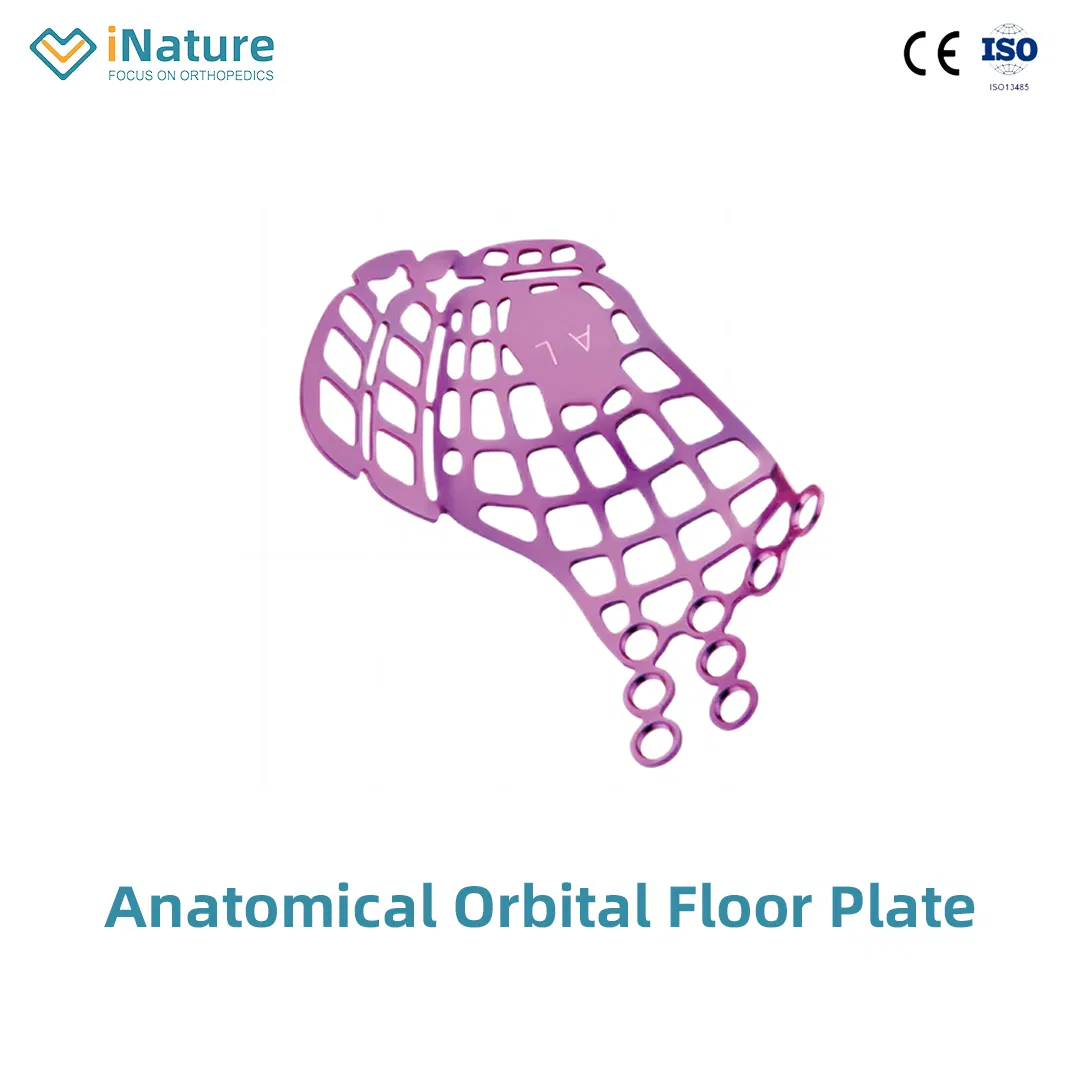

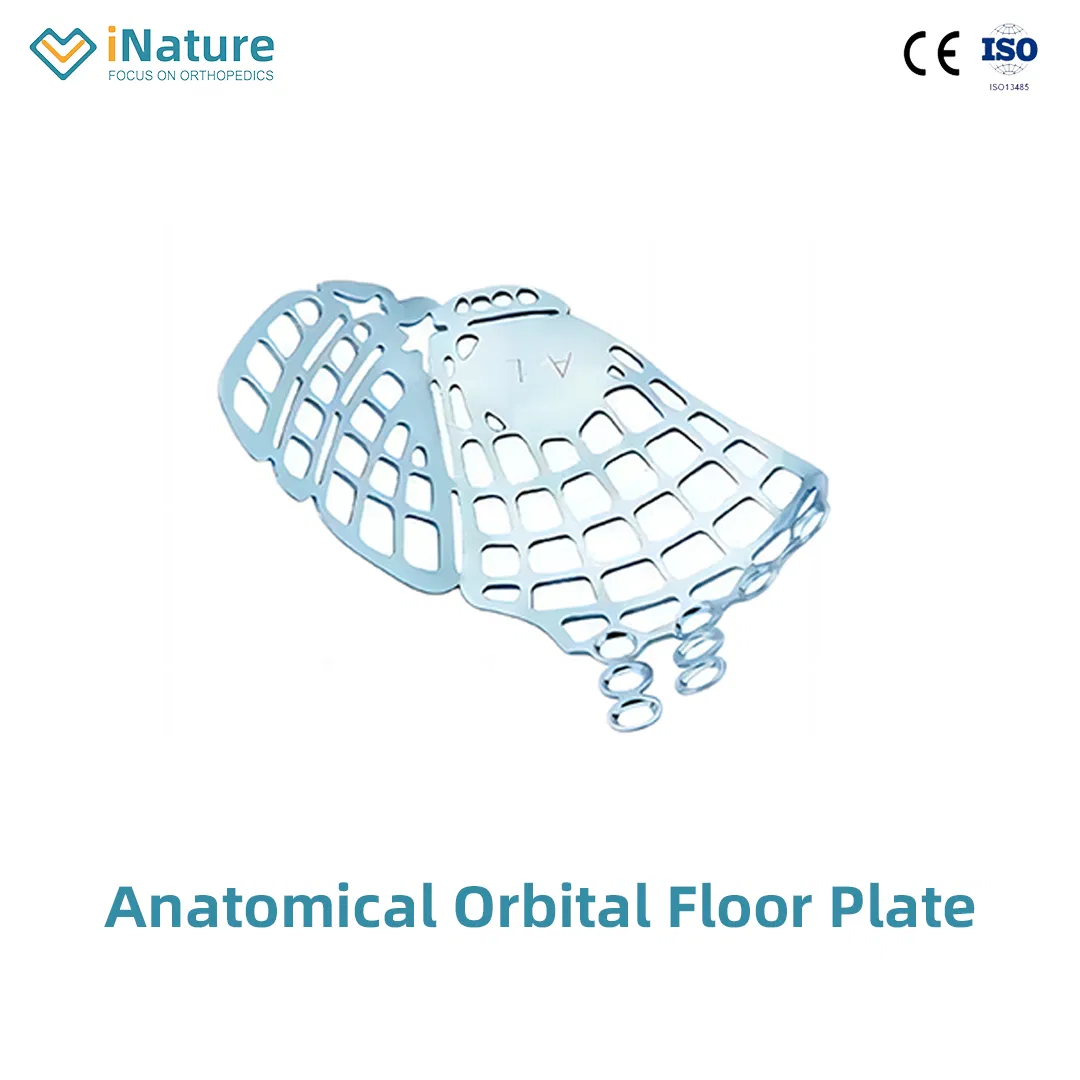

- Designed specifically according to the anatomy of the orbital floor and wall structure to avoid critical areas like the optic hole.
- Lobulated anatomical design reduces the need for manual shaping, effectively restoring bone continuity and reducing surgical time.
- The rear titanium mesh helps reset incarcerated eyeball tissue and fat, restoring eye movements and cavity volume.

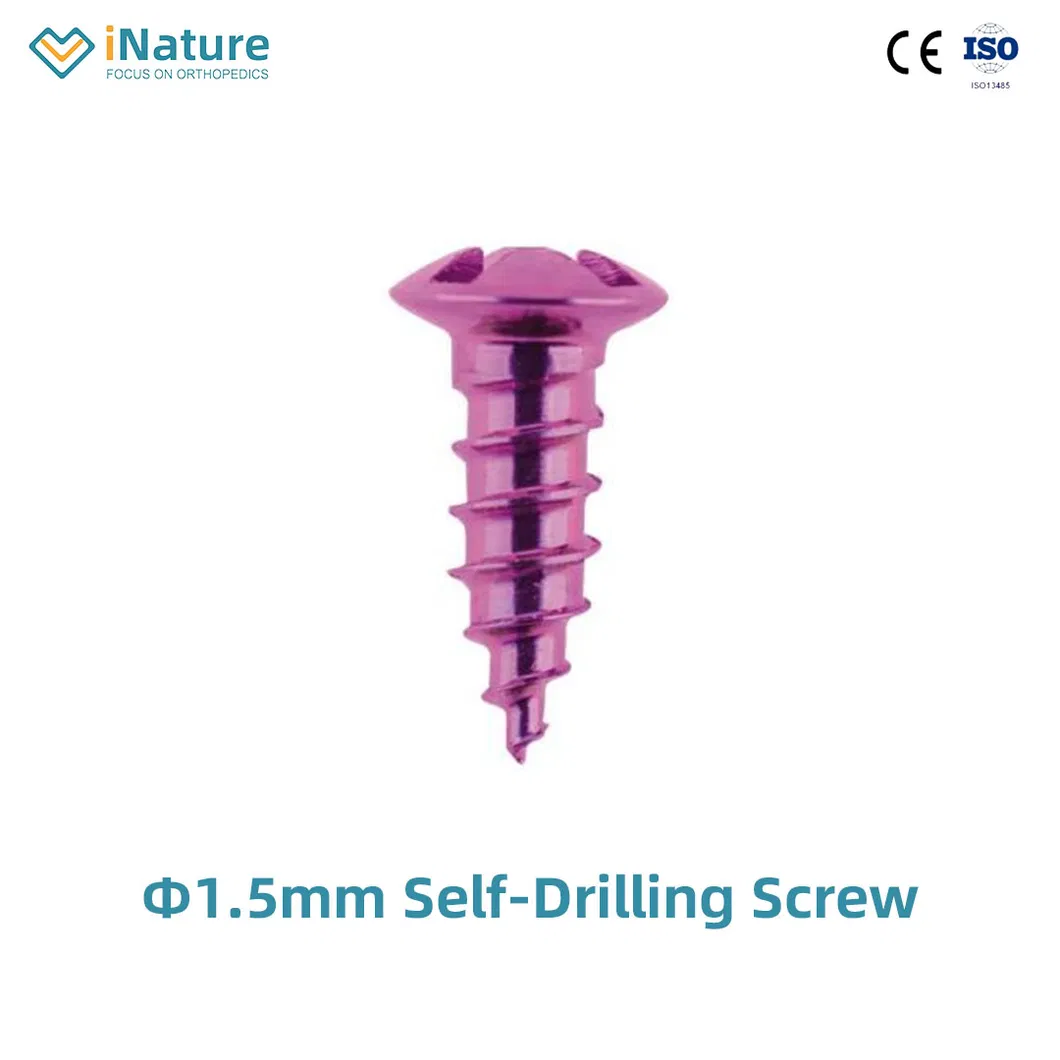

Precision Screws Specification
- Crafted from imported medical titanium alloy for optimal hardness and flexibility.
- One-time machine shaping using Swiss CNC automatic longitudinal cutting lathes.
- Unique anodizing technology enhances surface hardness and abrasive resistance.
- Universal screwdriver compatibility across the series with a self-hold design to prevent loosening.
Specifications & Ordering Information
| Model |
Thickness |
Order No. |
Item No. |
Specification |
Qty (pcs) |
| Anatomical Orbital Floor Plate |
0.4mm |
12.09.0411.303041 |
5845 |
Left, 30*30mm, Small |
1 |
| 0.4mm |
12.09.0411.303042 |
5846 |
Right, 30*30mm, Small |
1 |
| 0.5mm |
12.09.0411.303001 |
5832 |
Left, 30*30mm, Small |
1 |
| 0.5mm |
12.09.0411.303002 |
5833 |
Right, 30*30mm, Small |
1 |
| 0.4mm |
12.09.0411.343643 |
5847 |
Left, 34*36mm, Large |
1 |
| 0.4mm |
12.09.0411.343644 |
5848 |
Right, 34*36mm, Large |
1 |
| 0.5mm |
12.09.0411.343603 |
5207 |
Left, 34*36mm, Large |
1 |
| 0.5mm |
12.09.0411.343604 |
5208 |
Right, 34*36mm, Large |
1 |
*All the prices are only for reference. Exact price will be based on the latest quotation.
Frequently Asked Questions
What is the primary benefit of the anatomical design?
The pre-shaped anatomical design matches the orbital floor and wall, which significantly reduces the time surgeon spends shaping the plate during surgery and ensures better bone continuity restoration.
What materials are used in these implants?
The plates and screws are made from high-grade customized medical titanium alloy, offering the perfect balance of hardness for stability and flexibility for minor adjustments.
Are the screws compatible with other systems?
Screws within this series are designed for efficiency; all sizes can share a single screwdriver, and they feature a self-hold design to prevent screw loss.
Does the system help with post-operative eye movements?
Yes, by resetting incarcerated tissue and fat and restoring the orbital cavity volume, it helps improve eye subsidence and diplopia (double vision).
What certifications do these medical implants hold?
The products are fully certified with CE and ISO13485, meeting international standards for Class III medical instruments.
What packaging options are available?
We provide both sterile and non-sterile packaging options depending on your surgical facility requirements.
