Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Customization: Available
Type: Power Drill
Kind: Orthopedics

Product Description

i

Basic Specifications

Model NO.
ND-3511
Certification
CE, ISO13485
Group
Adult
Operating Principle
Total Hip Replacement
Product Name
Surgical Power Drill
MOQ
1 Set
Warranty
2 Years
Motor
Brushless Motor
Classification
Class II
Package
Aluminum Box
Voltage
100V-240V
Sterilizing Time
About 20 Mins
D

Product Description

Medical drill tools equipment orthopedic low-speed endoprosthesis total Arthroplasty replacement. All medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. K wires can be used in intermediary interlocking nail surgery or arthroscopic surgery. The whole unit is autoclavable. An imported motor ensures low noise, high speed, high alignment, and a long service life. The machine comes with a 12-month warranty and can adopt various flexible reamers and chucks easily during the surgical process.

T

Technical Data

Working Voltage14.4V
Output Power130W
Unit rise in Temperature≤ 25ºC
Input VoltageAC 220V, 50Hz
Charger Input Power30VA
Charging time3 hours
Speed300r/min
Non-loaded noise63dB(A)
Torque33000gcm
M

Technical Merits

  • Designed specifically for joint operations.

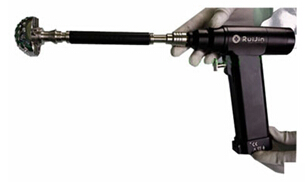

  • Low speed with great torque, compatible with various acetabulum burnishing and medullary cavity expanding tools.
  • Main unit is sterilizable by high temperature and high pressure up to 135 ºC.
  • Excellent quality, portable design with low noise and variable speed control.
  • Scientific balance technology reduces vibration and enhances handpiece control.
  • High concentricity ensures precision in HIP operation polishing.
P

Product Display

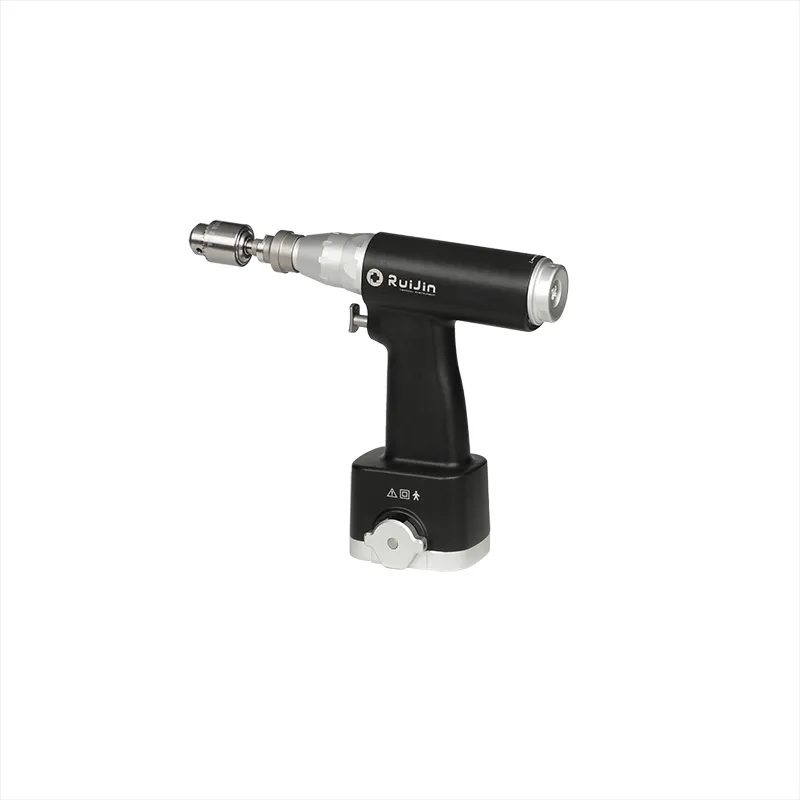

Hip Joint Drill
Hip joint drill with various adaptors (Stryker, AO, Hudson, Synthes, etc.)

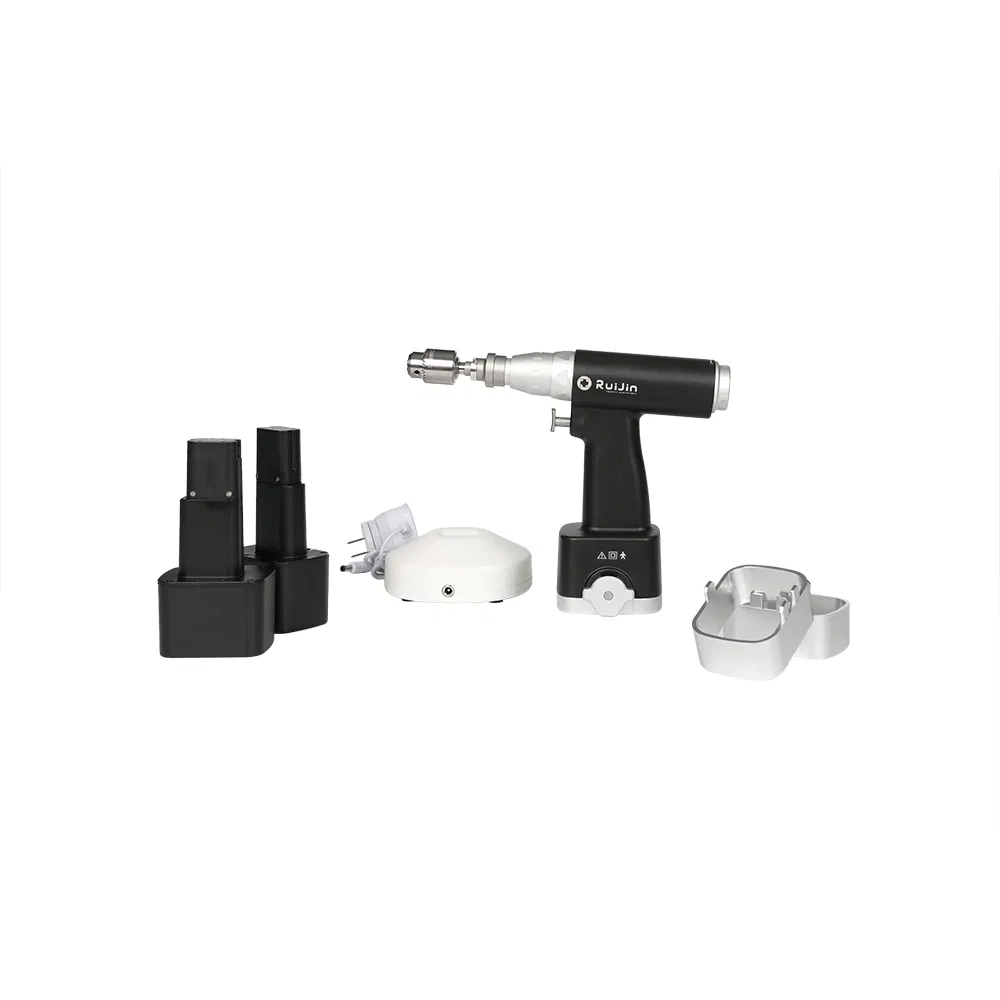

Batteries
Includes 2pcs batteries for continuous power.

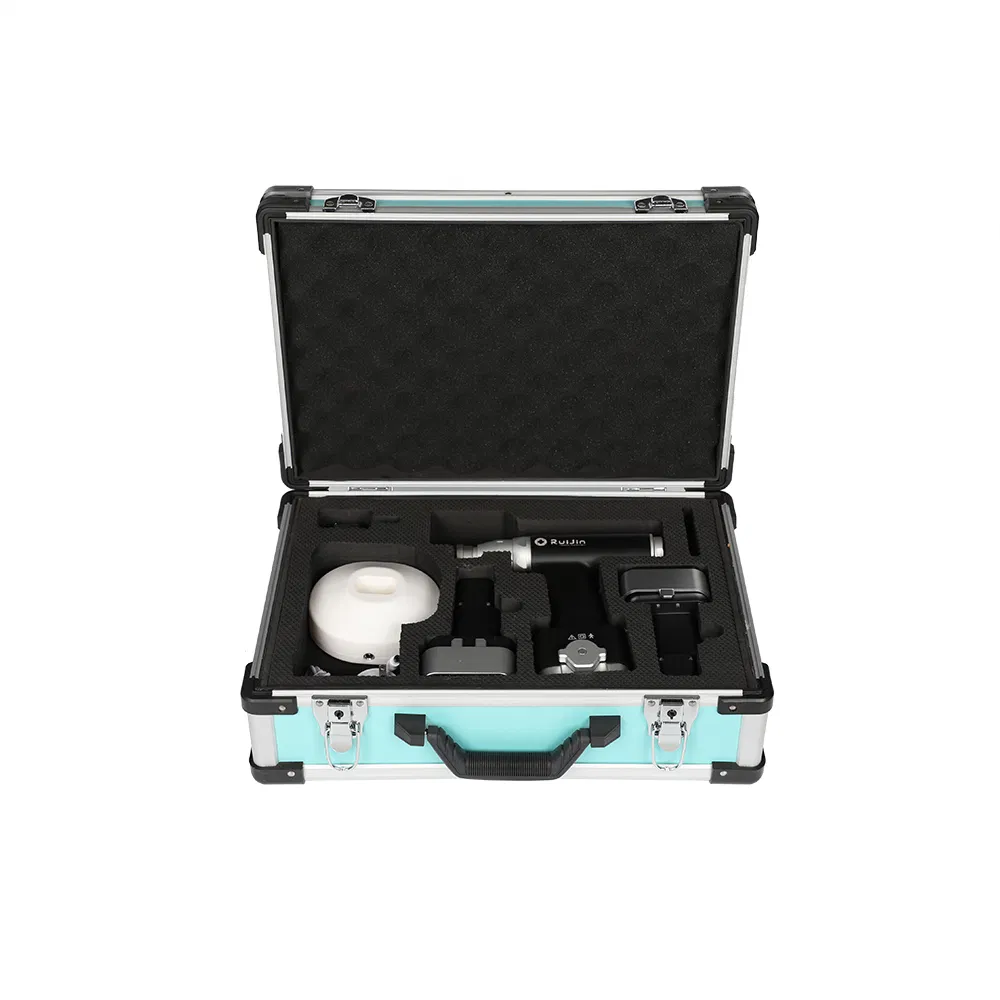

Aluminum Case
Complete set with aluminum case for protection.

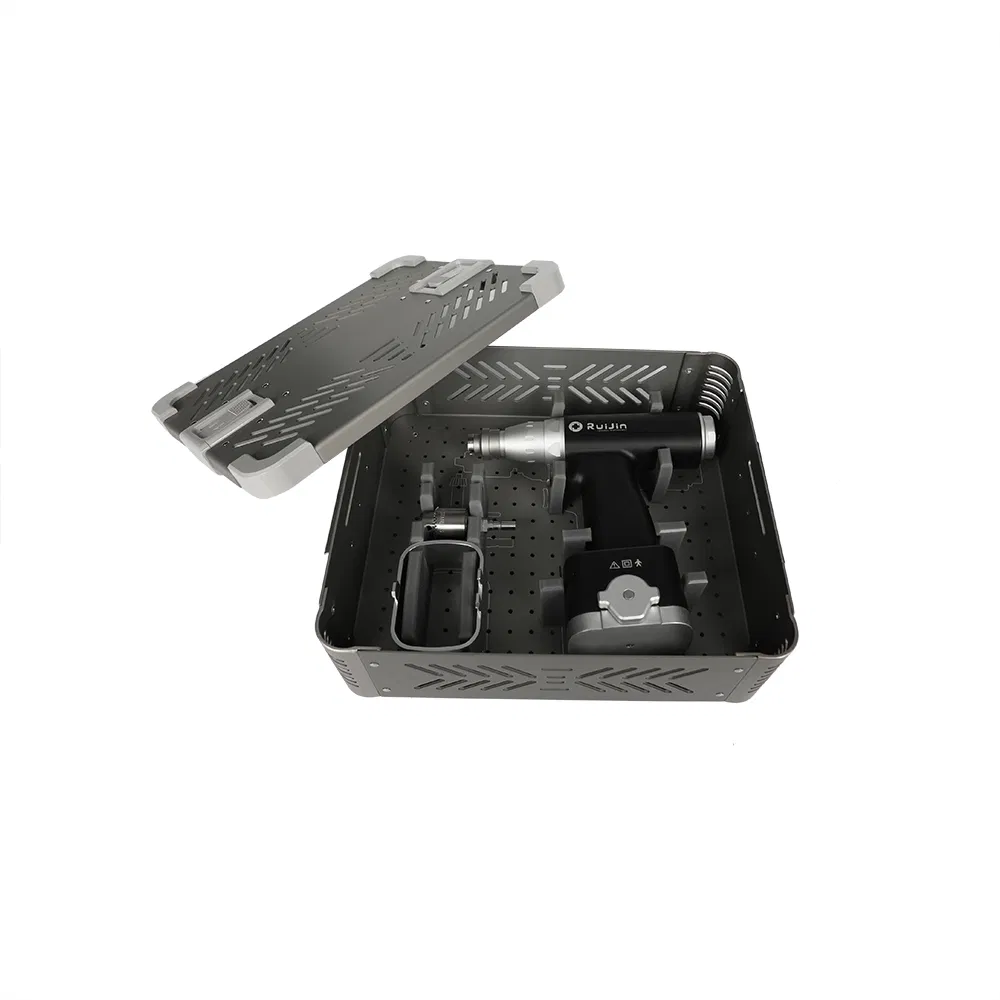

Sterilization Tray
Specialized sterilization tray (Optional).
Certificate
Product Certifications (CE/ISO)
A

Manufacturing Excellence

Established in 2007, we are a medical device manufacturer integrated with R&D, production, and sales. We focus on medical drill series and micro medical electric drill series. Our main products include medical bone drills, multi-functional cannulated drills, and various saws used in Trauma, Thoracic, and Joint surgeries.

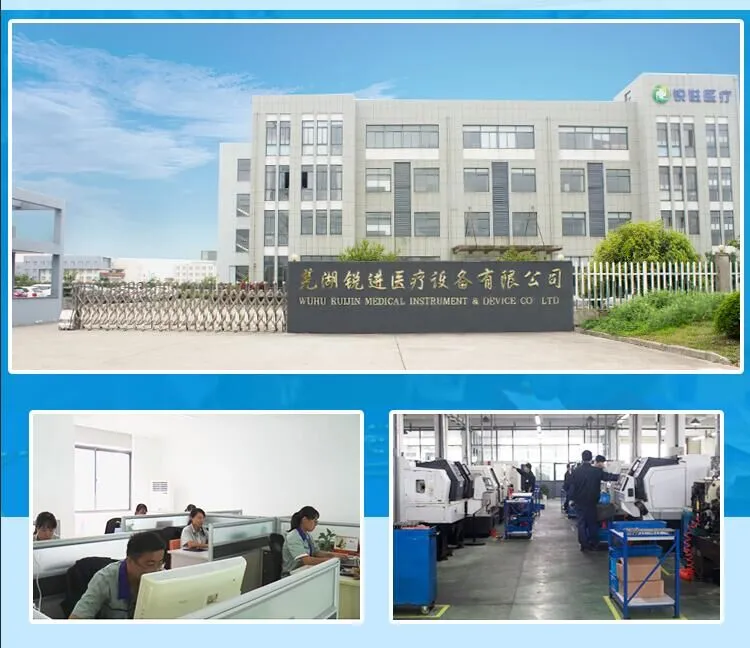

Factory Display
S

Ordering Process

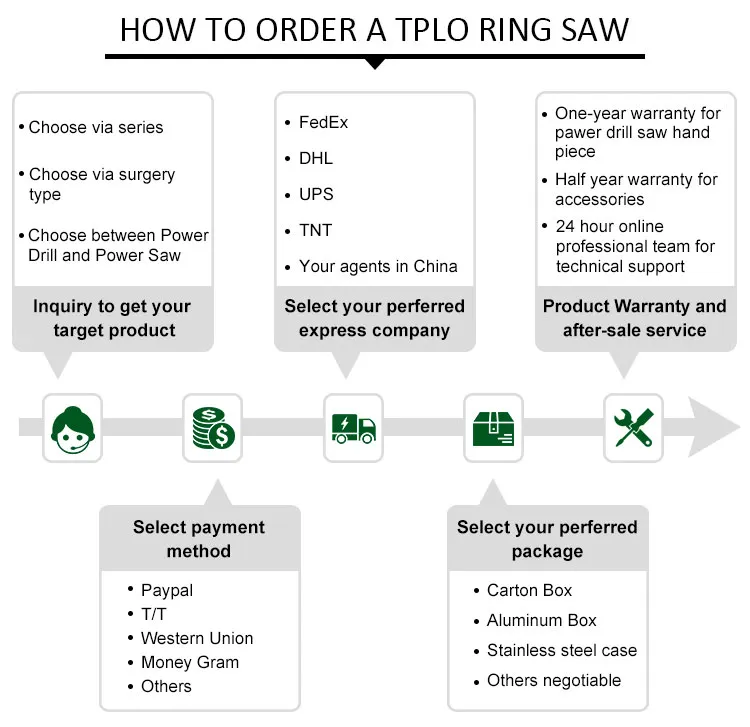

Order Process
!

Attention & Notes

  • The device must not be dismantled by non-professionals.
  • Matches electricity sources: 110V/60Hz - 220V/50Hz.
  • Remove the battery when not in use to prevent automatic discharge.
  • The battery cannot be disinfected; ensure the battery compartment is dry after sterilization.
  • Sterilization temperature must be below 135°C to avoid motor damage.
?

Frequently Asked Questions

What is the main application of this drill?
It is primarily used for orthopedic surgeries, specifically total hip replacement and joint operations requiring high torque and low speed.
Can the entire unit be sterilized?
Yes, the main unit is autoclavable and can be sterilized by high temperature and high pressure up to 135 ºC. Note: the battery itself cannot be disinfected.
How long is the warranty period?
The product comes with a 2-year warranty for professional manufacturing assurance, while the motor specifically is covered for 12 months.
What is included in the standard set?

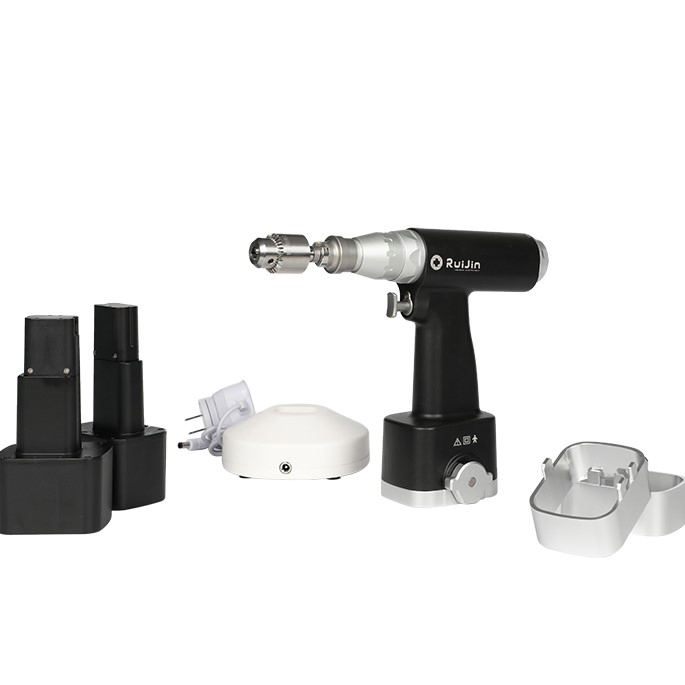

The standard configuration includes one handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and an aluminum alloy box.
What is the charging time and speed?
The charging time is approximately 3 hours, and the operating speed is around 300 r/min, optimized for joint surgery precision.
