Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
1 / 5
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System

Nickel Plated Floor Heating Radiator Manifold Water Mixing System

Customization: Available
Name: Brass Water Mixer Kit
Material: Foged Brass
Send Inquiry

Product Description

📊
Basic Information
Model NO. HB-16402
Surface Sand Blast & Nickel Plated
Max. Working Pressure 1MPa
Water Inlet Temperature 0-95℃
Output Temperature 35-55℃
Temperature Control Accuracy ±2℃
Head Lift 6m
Max Power 100W
🖼️
Detailed Product Views
Water Mixing System Detail 1
Water Mixing System Detail 2
Water Mixing System Detail 3
📝
Product Description

Automatic Control System of Brass Water Mixer Kit

This system is a high-performance brass mixing water unit designed for residential applications. It seamlessly integrates a high-efficiency water pump and a precision pressure gauge. It is engineered for cold/hot water mixing, ensuring a constant-temperature water supply for underfloor heating systems.

  • High-precision brass casting for superior corrosion resistance.
  • Integrated design for easy installation and maintenance.
  • Customizable flow rate, pressure, and connection sizes.
  • Durable construction suitable for long-term household use.
⚙️
Technical Parameters
Working Medium Water
Inlet Temperature Range 0-95ºC
Output Temperature Range 35-55ºC
Max Coverage Area 200m²
Center Distance 210mm
Material Nickel Plated Brass
Certifications SGS, ISO9001, ISO14001, CE

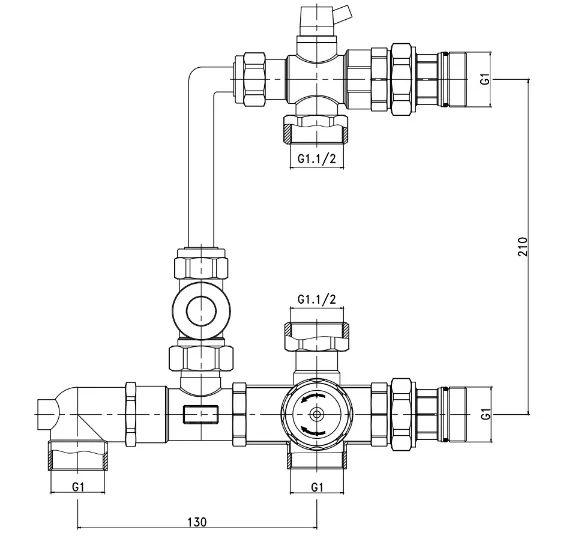

Dimensional Drawing:

Dimension Diagram
🏭
Production Process
Production Process Flow
🔥
Popular Product Series

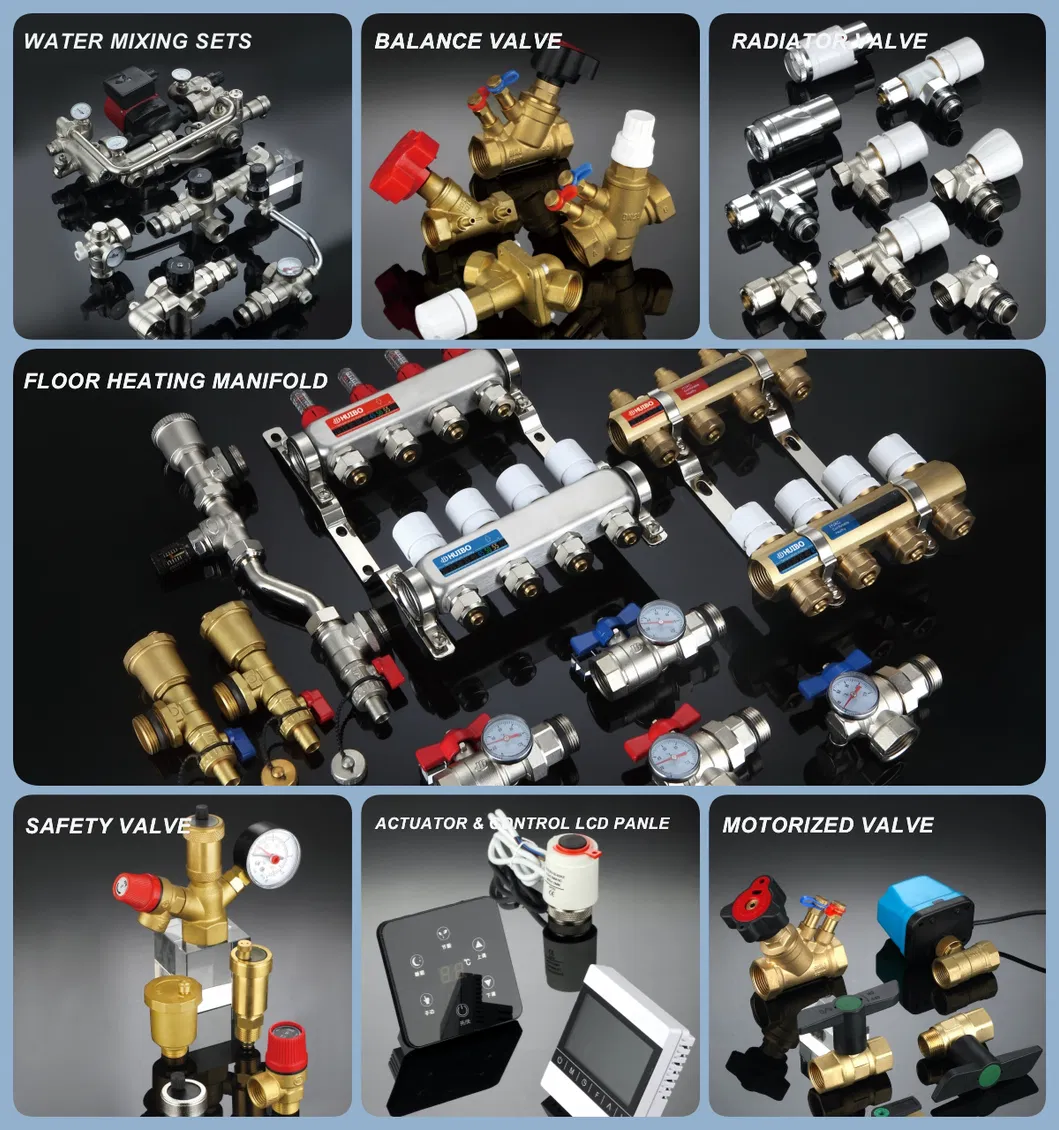

Hot Sale Series
📜
Quality Certifications
Certificates
🏢
Manufacturing Excellence

With over 25 years of experience, our facility stands as a premier supplier in the valve industry, specializing in HVAC system components and brass valve technology. Located in the heart of China's valve manufacturing hub, we utilize integrated resources to deliver high-quality solutions worldwide.

Our product range includes high-precision manifolds, thermostatic valves, motorized valves, and various brass fittings covering over 40 series and 2,000 varieties.

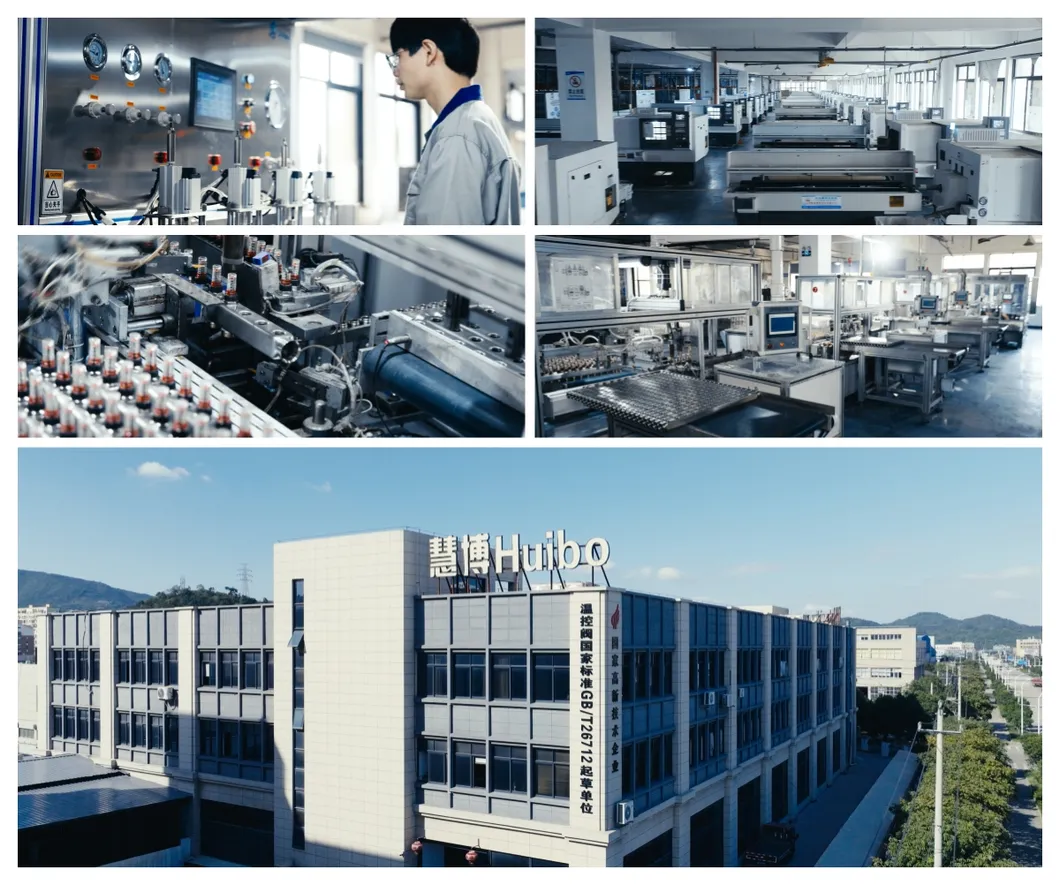

Factory Overview
❓
Frequently Asked Questions
What is the temperature control accuracy of this system?
The system features a high-precision control mechanism with an accuracy of ±2℃, ensuring stable water output for floor heating.
What is the minimum order quantity (MOQ)?
For manifold systems, the MOQ is 100 pieces. For other standard brass fittings, it ranges between 1,000 to 3,000 pieces depending on the specific model.
Can the connection sizes be customized?
Yes, we offer customization options for flow rates, pressure ratings, and connection sizes to meet specific local plumbing standards and project requirements.
Is the material resistant to corrosion?
Absolutely. The unit is constructed from high-quality brass with a sand-blasted and nickel-plated surface to provide excellent durability and corrosion resistance.
What is the warranty period for the valves?
We provide a 3-year guarantee on our valve products, reflecting our commitment to quality and long-term performance.
How do I proceed with a sample request?
You can request samples for testing before placing an official bulk order. Once requirements are confirmed, we will provide a quotation and arrange sample shipping.
