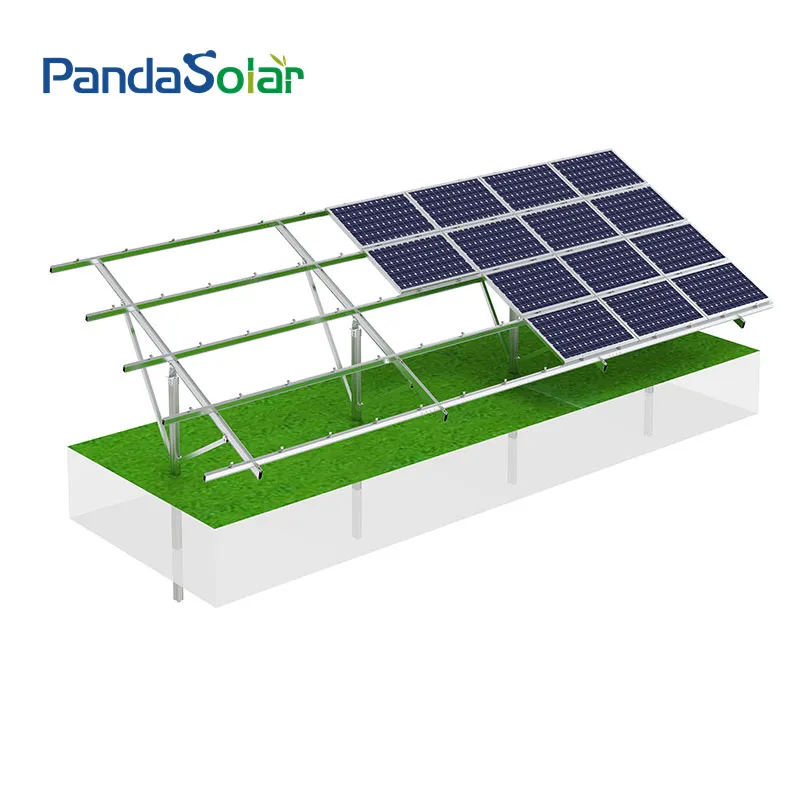

| Model NO. | PD-GM-04 |
| Certification | CE |
| Application | Commercial |
| Material | Steel / Magnesium Aluminum Zinc |
| Type | Ground Bracket |
| Wind Speed | 60m/S |
| Snow Load | 1.4kn/M2 |
| Surface Treatment | Magnesium Aluminum Zinc |
| Standard | AS/NZS1170 / Jisc8955:2017 |

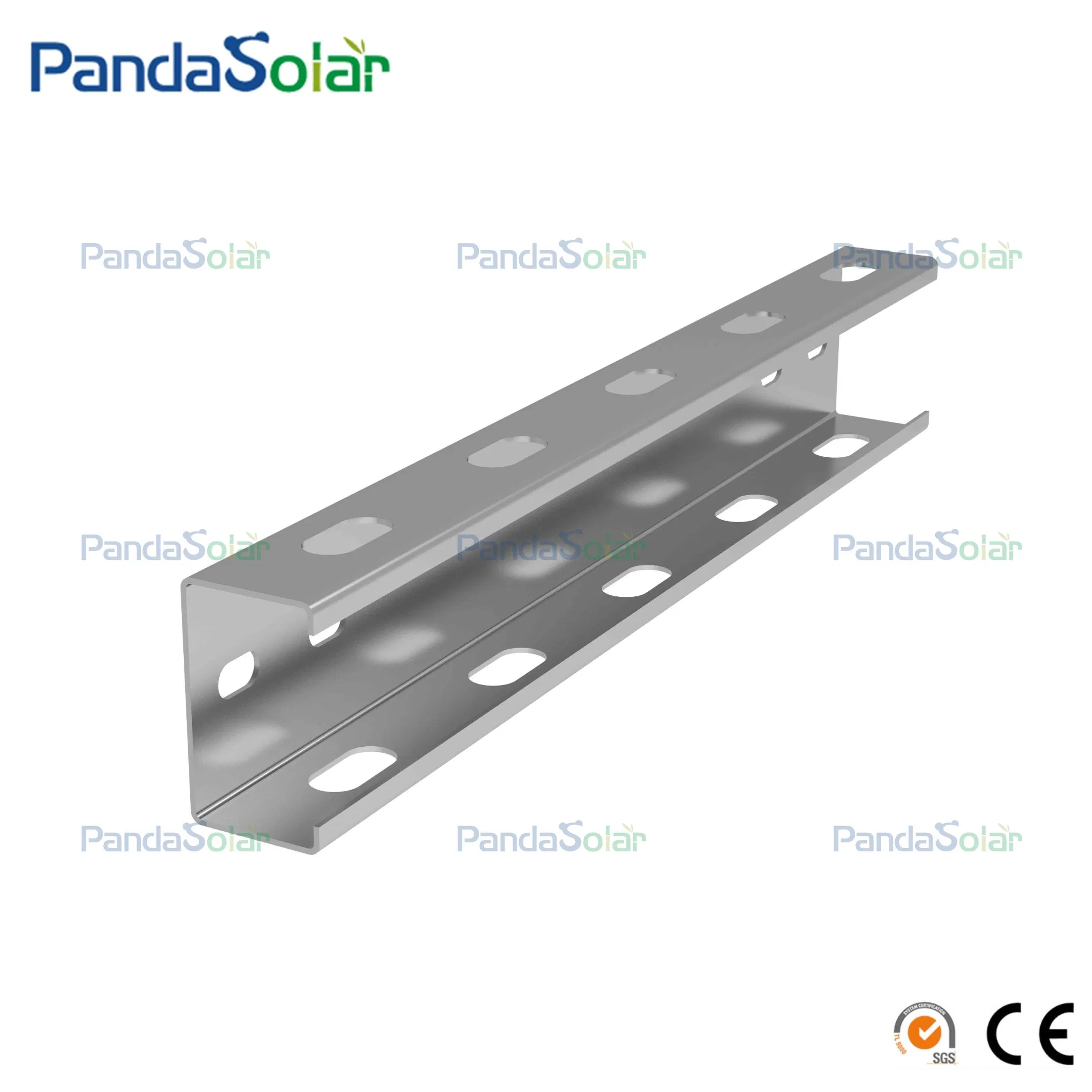

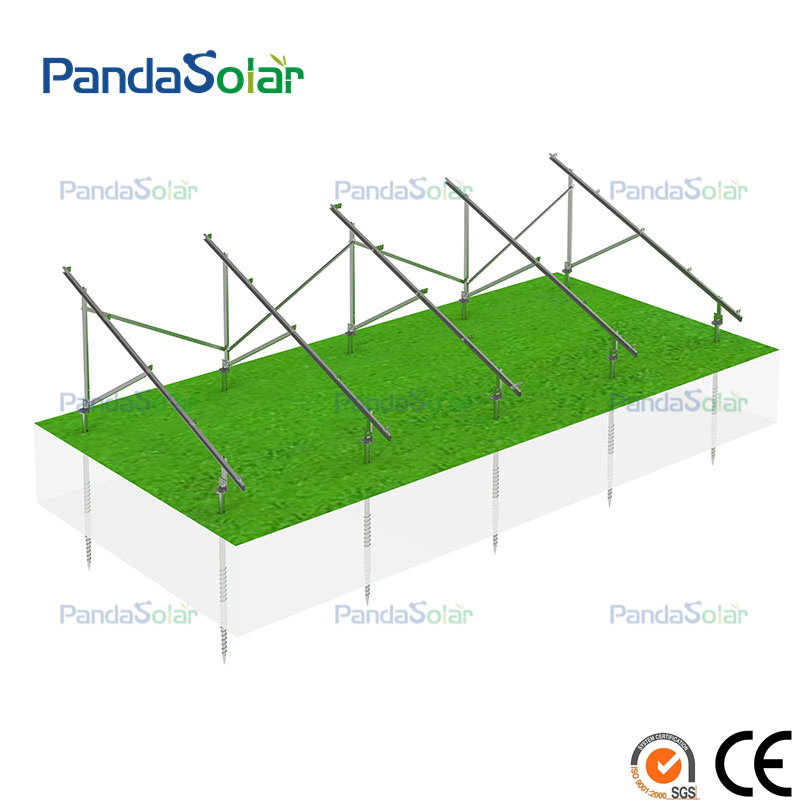

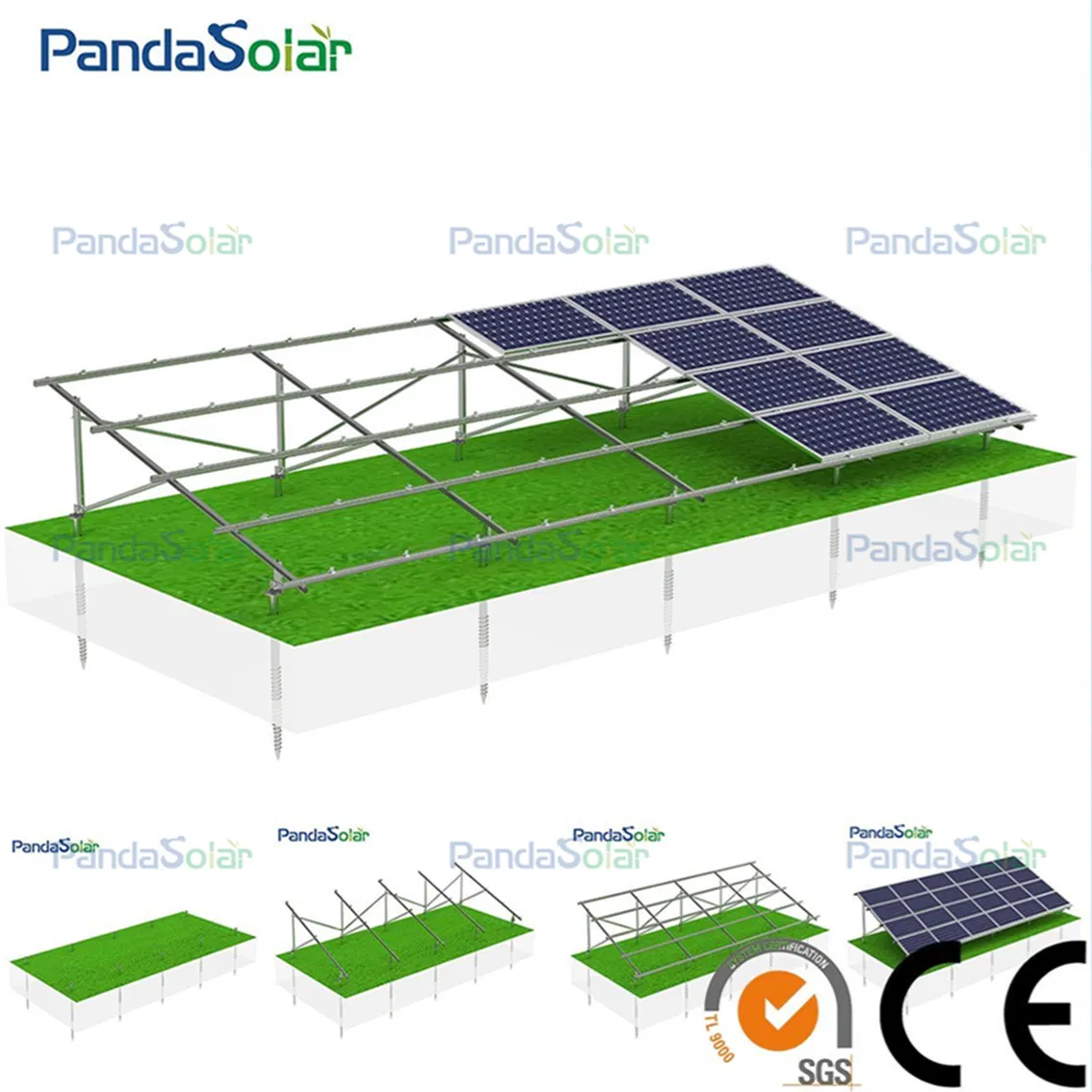

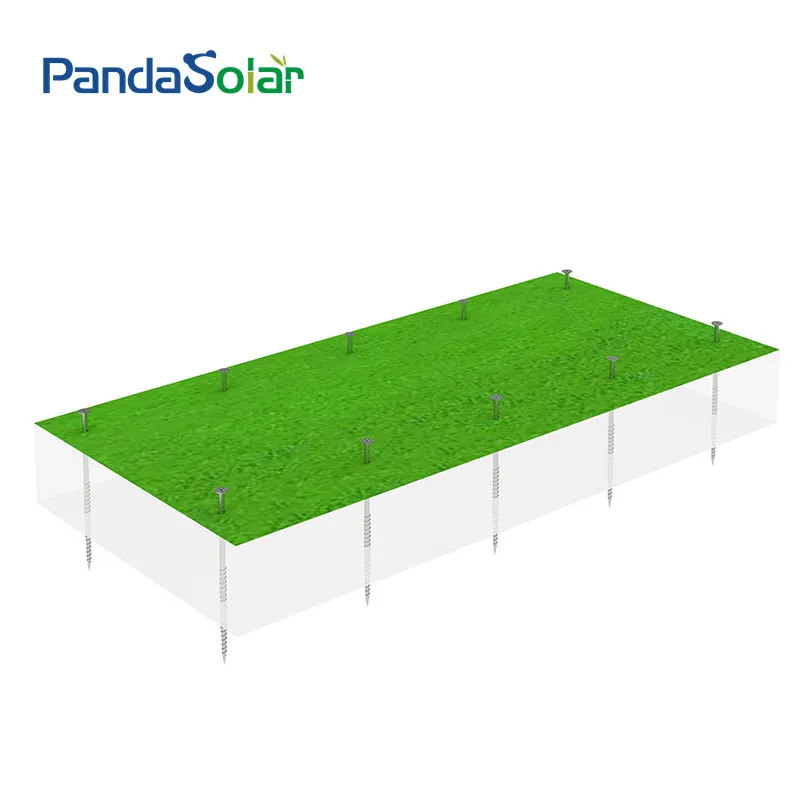

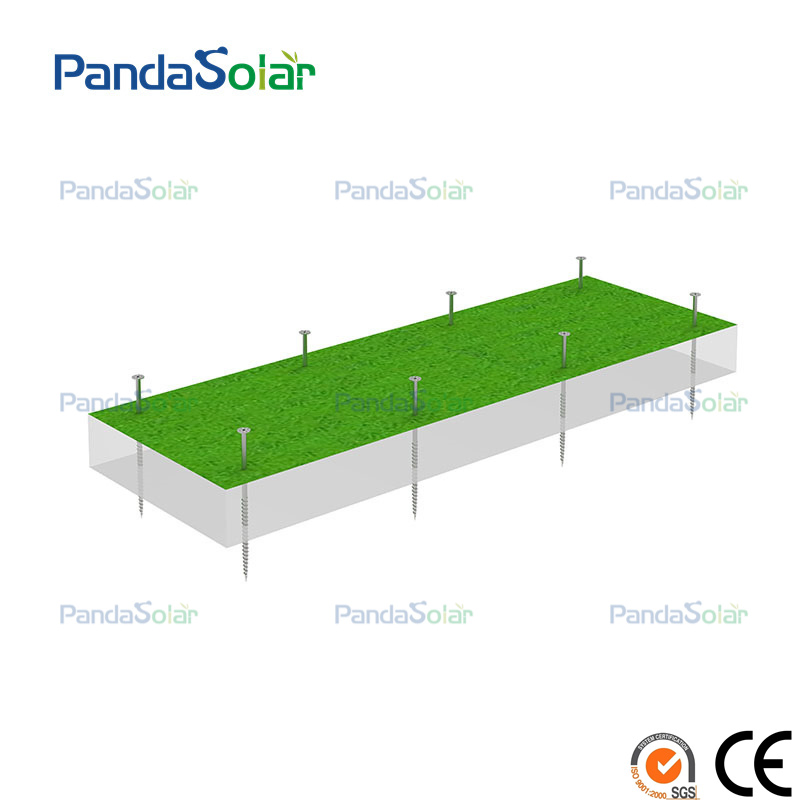

Step 1: Installing Ground Screws. These screws anchor the support structure to the ground, drilled using specialized equipment to a depth sufficient for system weight.

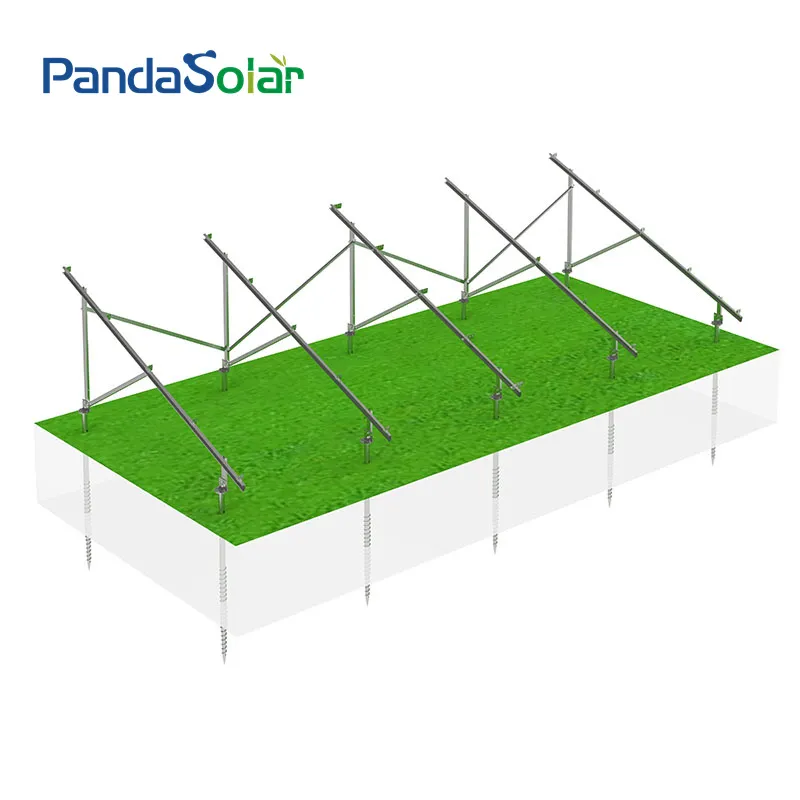

Step 2: Install the Beams. Connect the diagonal support pole to the top of the pole using bolts and nuts after foundations are secured.

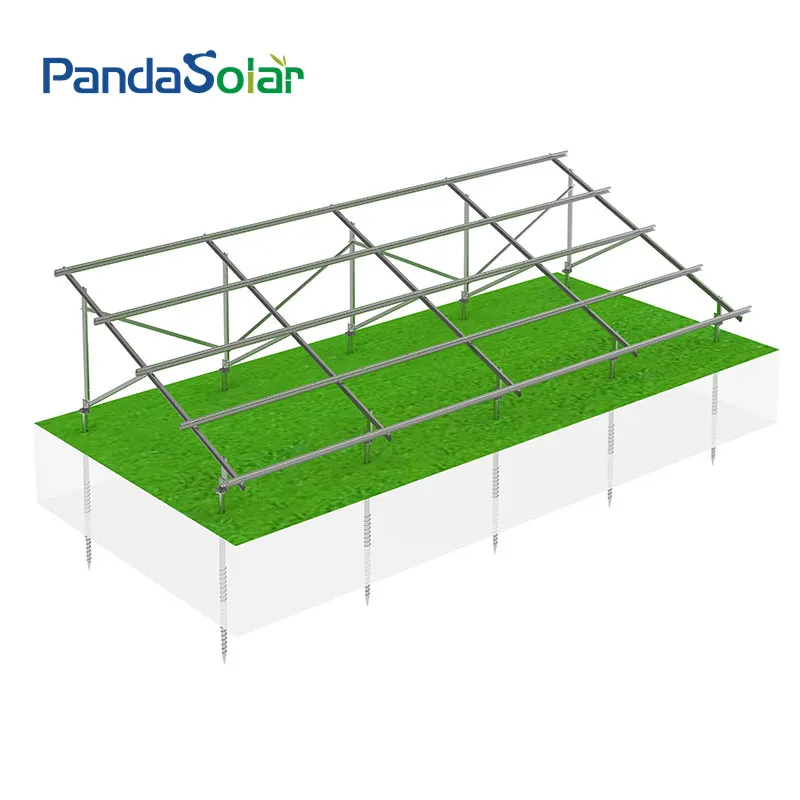

Step 3: Installing Rails. Attach the rails that support the solar panels to the beams using brackets and bolts, ensuring a level alignment.

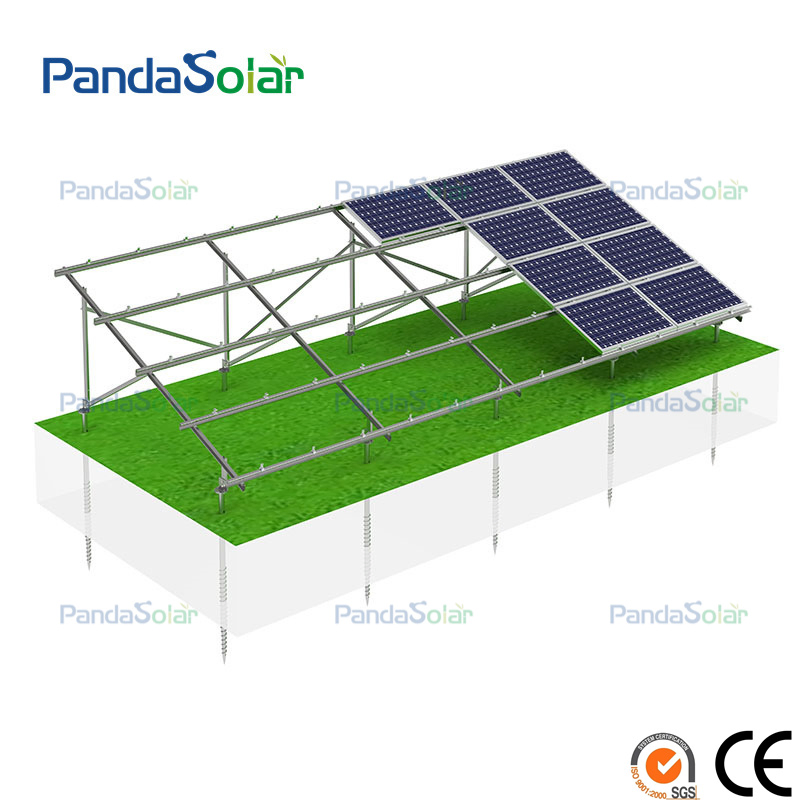

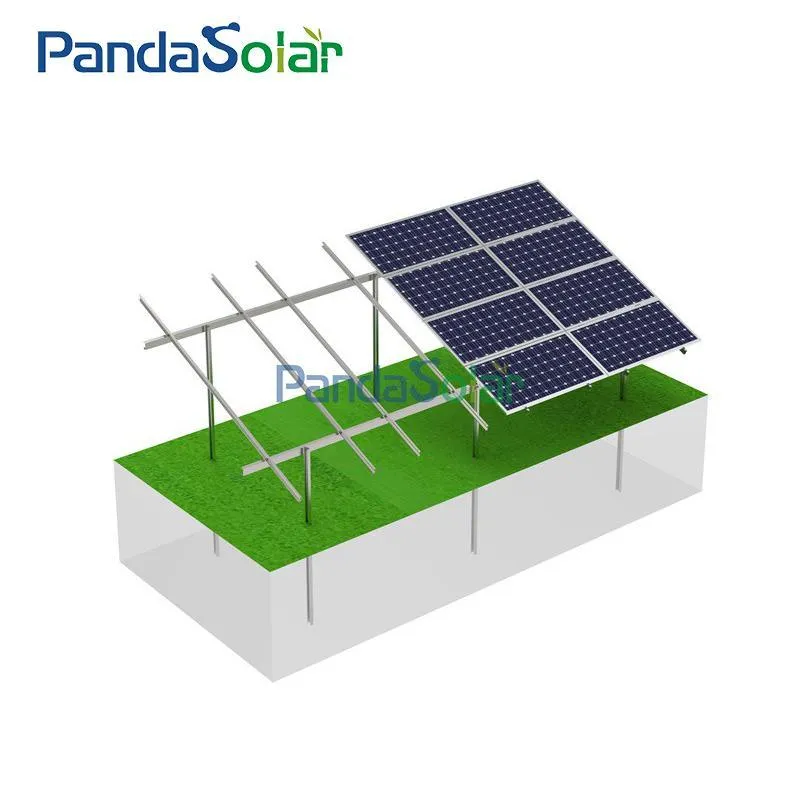

Step 4: Installing Solar Panels. Securely fasten each solar panel to the rails using high-quality mounting hardware.
| Material | Structure: Mg-Al-Zn & AL-6005-T5 (Anodized); Components: SUS304 & AI6005-5 |
| Application | Commercial and Residential Installation |
| Tilt Angle | 0 - 60° |
| Wind Speed | 0 - 60 m/s |
| Snow Load | 0 - 150 cm |
| Ground Clearance | 0 - 1 m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |
