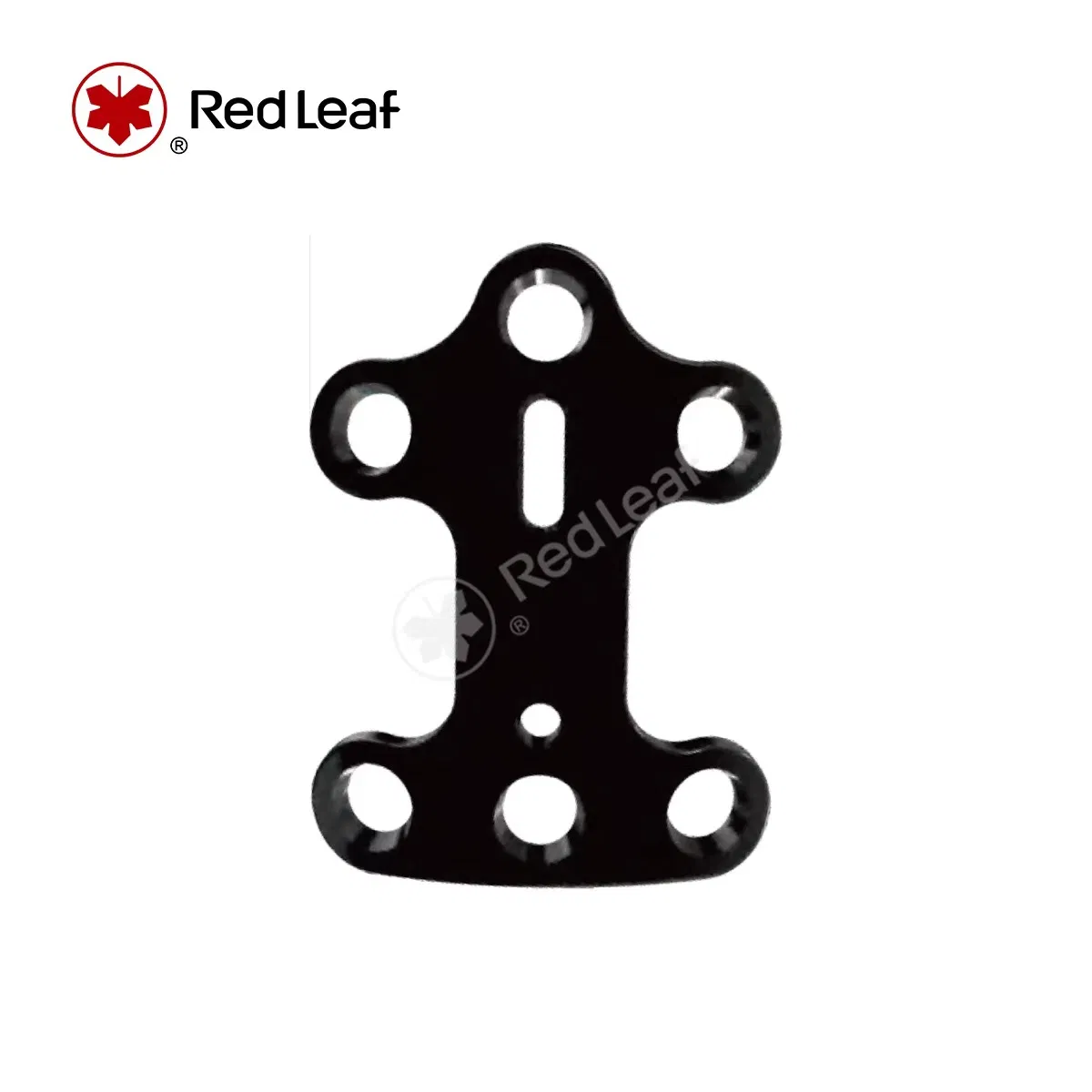

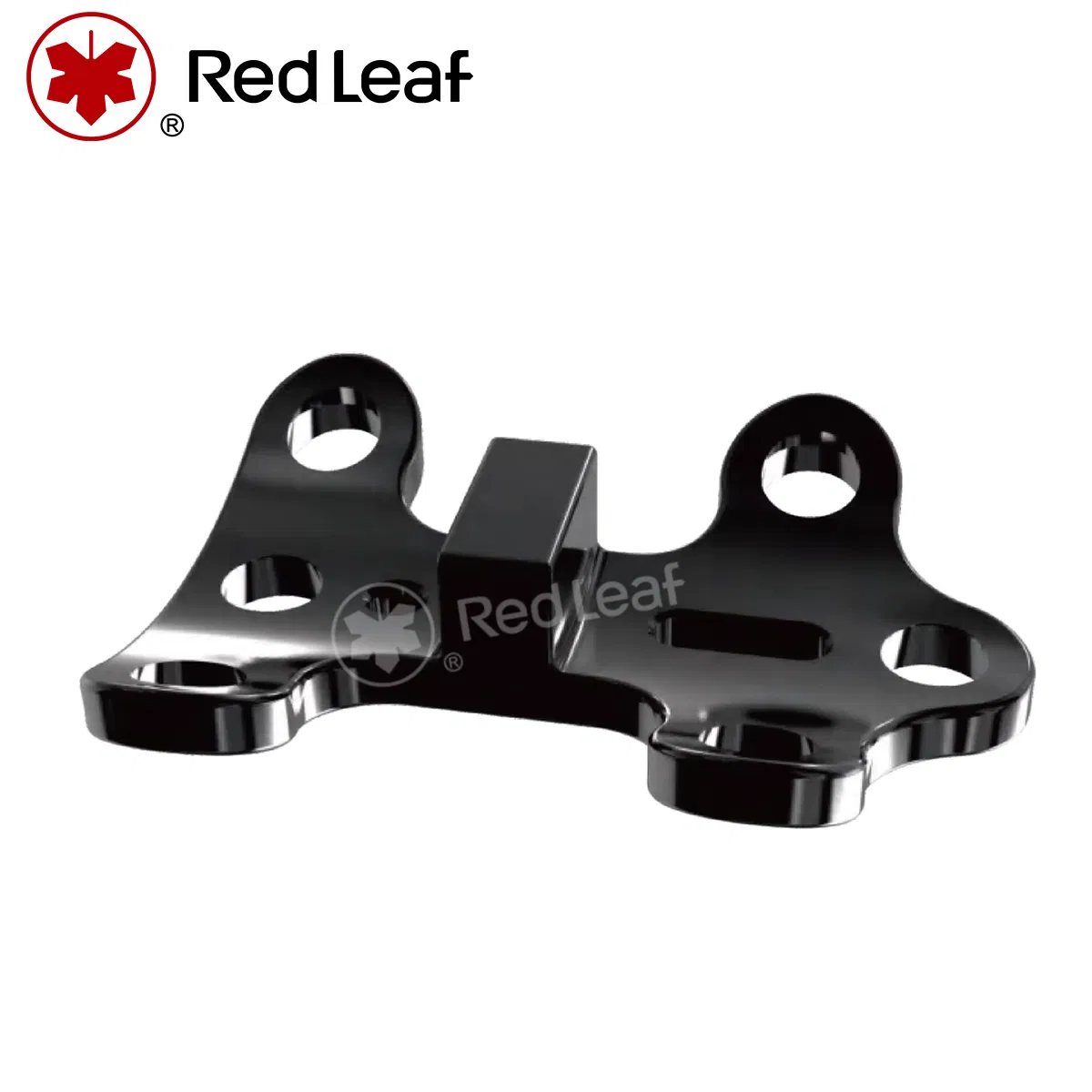

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
1 / 3
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Orthopedic Osteotomy Locking Plate
i

Basic Information

Model: Evans
Usage: Correct Deformities, Fracture Fixation
Package: Carton
Specification: 30x23x2
⚙

Product Description

Product Detail

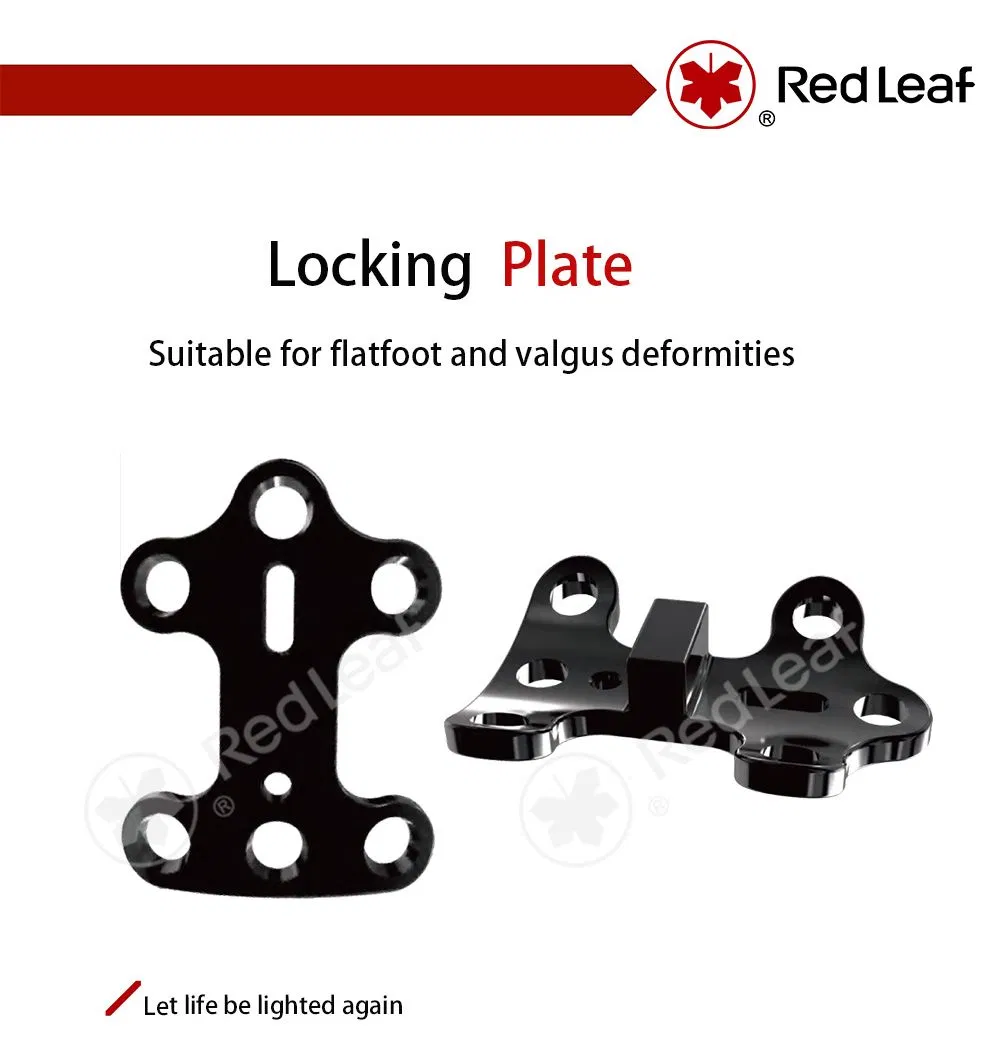

  • Design Concept · Suitable for flatfoot and valgus deformities
    · Transverse osteotomy of calcaneal neck
    · Osteotomy distance to calcaneocuboid joint: 10-15mm
  • Key Technical Points · Precision transverse osteotomy of the calcaneal neck.
    · Controlled cutting speed of the inner cortex to protect soft tissues.
    · Parallel openings design to promote bone ingrowth and prevent non-union.
  • Screw & Material Specifications · Matching Screw: 3.5 self-tapping locking screw.
    · Length Range: 6-40mm (2mm increments).
    · Kirschner Wire: 1.9mm.
    · Material: High-grade TC4 Titanium Alloy.
▦

Product Parameters

Specifications Length Width Thickness Step Width Cushion Block Height
Big 36.0 23.0 2.0 6/8/10 6/8/10
Middle 30.0 23.0 2.0 4/6/8 4/6/8
Small 26.0 23.0 2.0 2/4/6 2/4/6
Size Chart
Technical Diagram

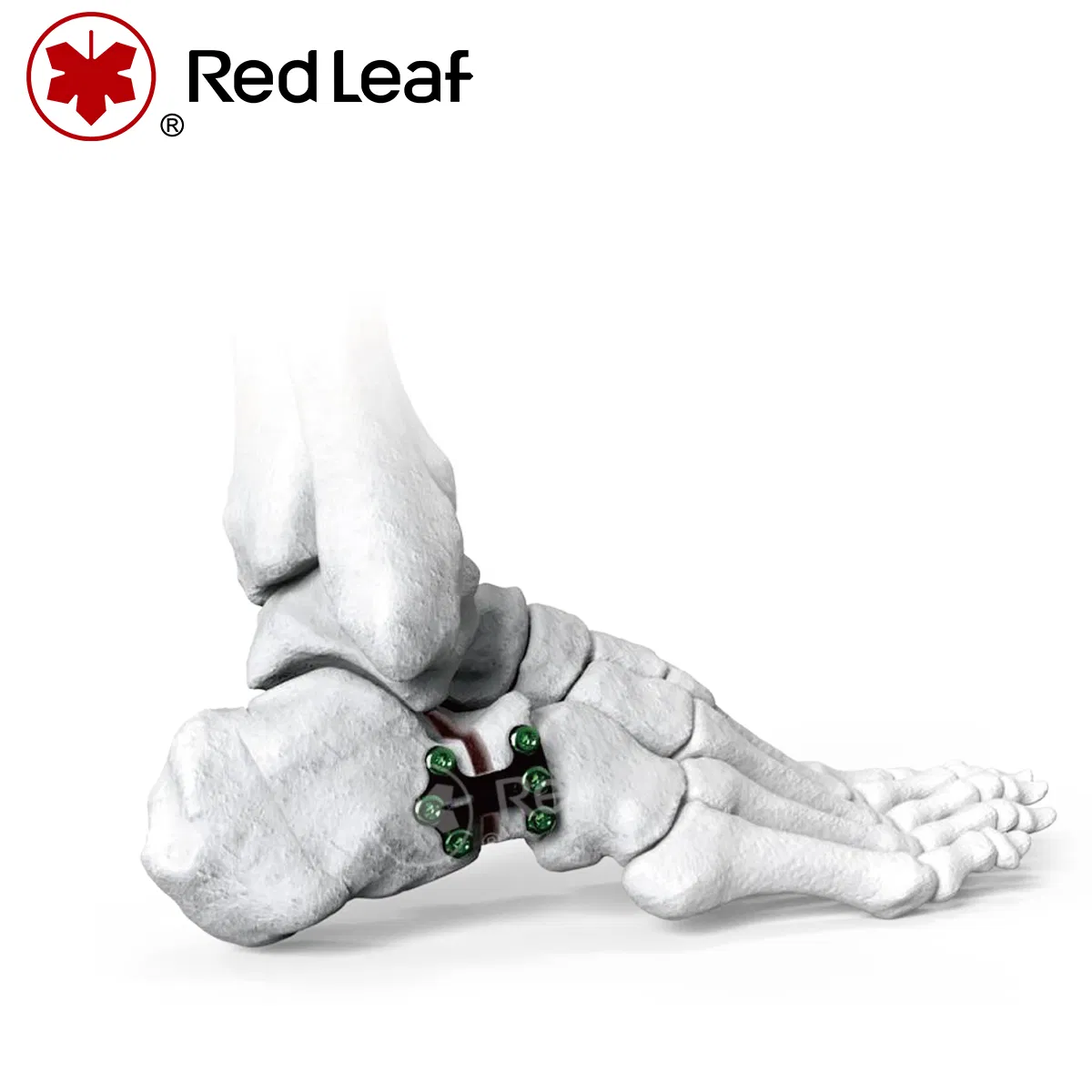

Application Overview
Product Real Shot
Surgical Guide
?

Frequently Asked Questions

What clinical conditions is this locking plate specifically designed for?
This locking plate is primarily designed for correcting flatfoot (pes planus) and valgus deformities through calcaneal neck transverse osteotomy.
What material is used for the plate and screws?
The system is manufactured from high-quality TC4 Titanium Alloy, known for its excellent biocompatibility and mechanical strength.
How do I choose the correct specification?
We provide three main sizes (Big, Middle, Small) with varying lengths (26mm to 36mm) and cushion block heights to accommodate different patient anatomies.
What is the recommended osteotomy distance?
The design concept recommends a distance of 10-15mm between the osteotomy surface and the calcaneocuboid joint surface for optimal results.
Does the system include matching screws?
Yes, it uses 3.5mm self-tapping locking screws with lengths ranging from 6mm to 40mm to ensure secure fixation.
What quality certifications does this product hold?
The products are manufactured under strict quality standards and comply with international certifications such as CE, FDA, and ISO13485.
