Basic Specifications
Certification
CE, ISO13485
Operating Principle
Total Hip Replacement
Product Name
Surgical Power Drill
Sterilizing Time
About 20 Mins
Product Description

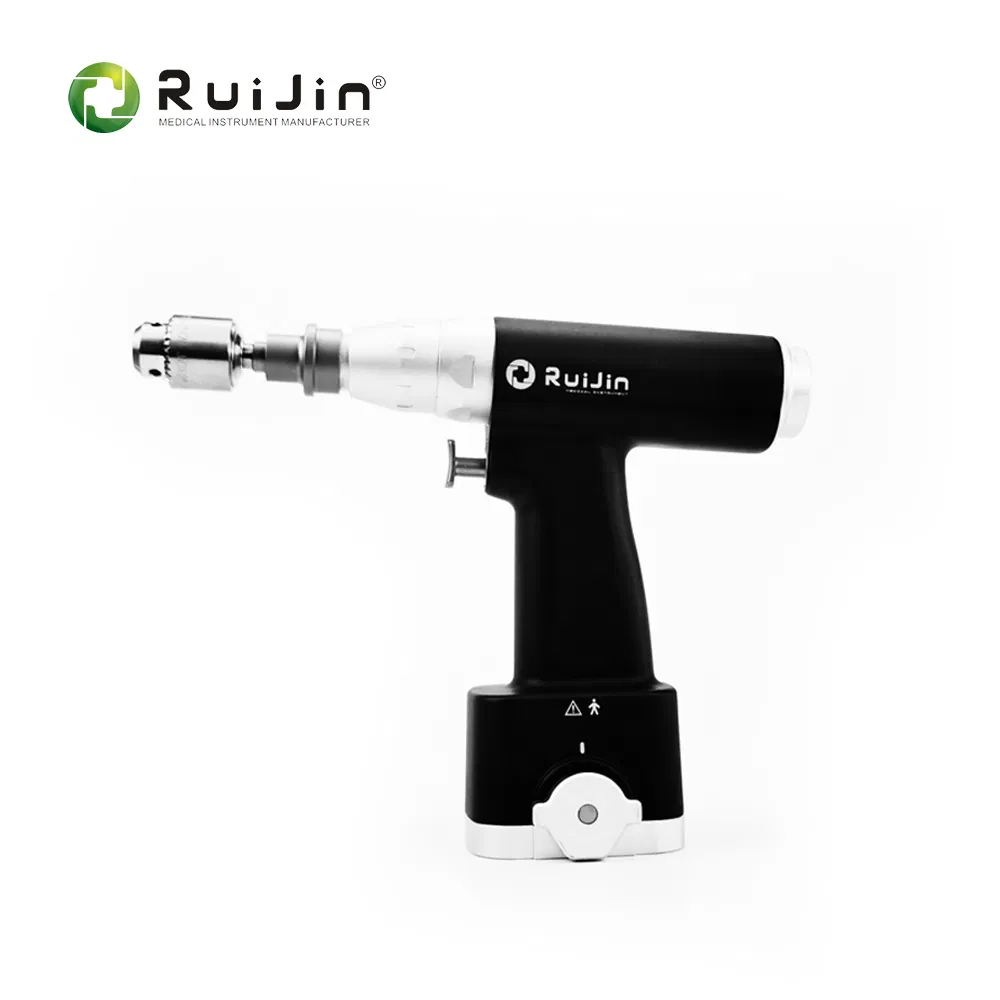

Professional equipment for orthopedic surgery, featuring an autoclavable German motor medical power drill specifically designed for total hip replacement. These medical instruments are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. The whole unit is fully autoclavable, featuring an imported motor to ensure low noise, high speed, and long service life.
Technical Data
| Working Voltage | 14.4V |
| Output Power | 130W |
| Unit rise in Temperature | ≤ 25ºC |
| Input Voltage | AC 220V, 50Hz |
| Charging time | 3 hours |
| Speed | 300r/min |
| Non-loaded noise | 63dB(A) |
| Torque | 33000gcm |
Product Technical Merits
- Specialized for joint operations with low speed and great torque.
- Compatible with various acetabulum burnishing and medullary cavity expanding tools.
- Main unit withstands high temperature and pressure sterilization up to 135ºC.
- Carbonless motor for increased power and variable speed control.
- Scientific balance technology to reduce vibration and enhance handpiece control.

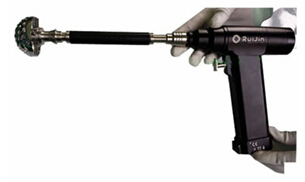

- High concentricity ensures precision in polishing acetabulum during HIP operations.
Product Display
Standard Configuration:

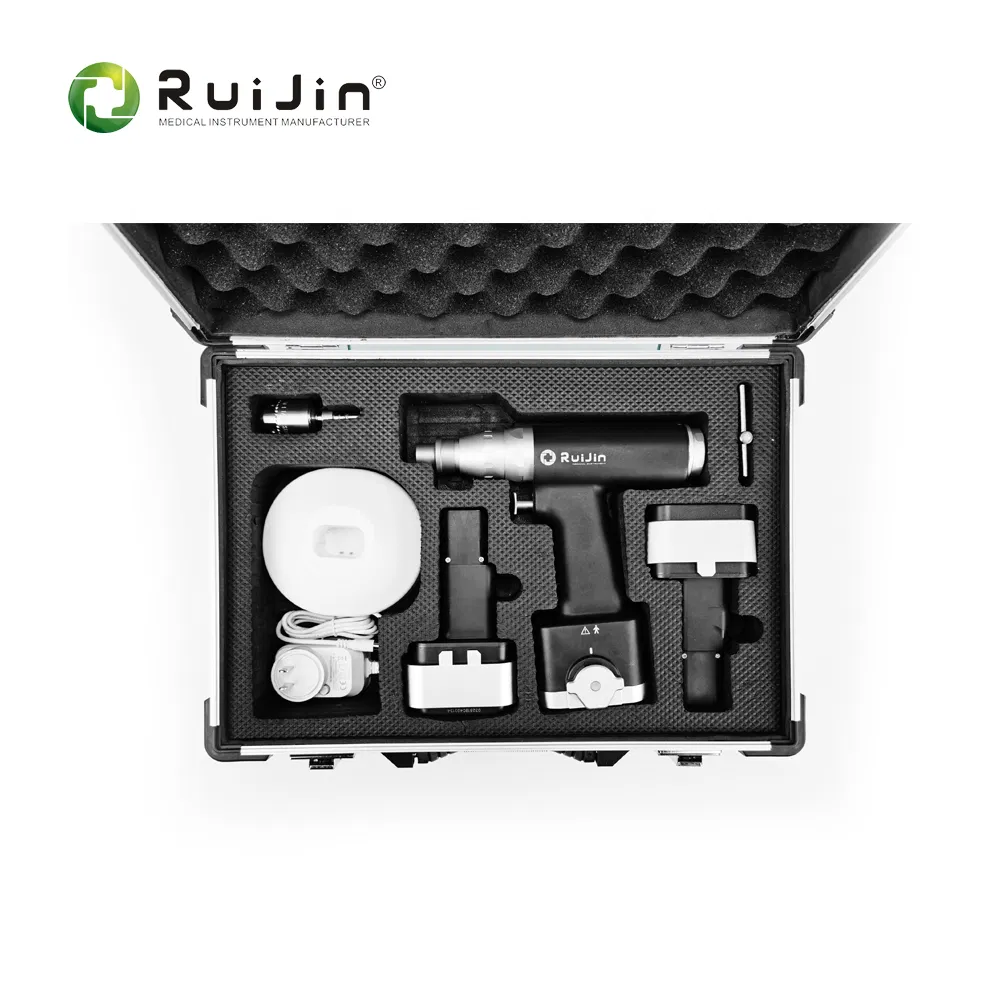

- One handpiece, One charger, Two batteries, One sterilizing channel, One drill chuck, One aluminum alloy box.

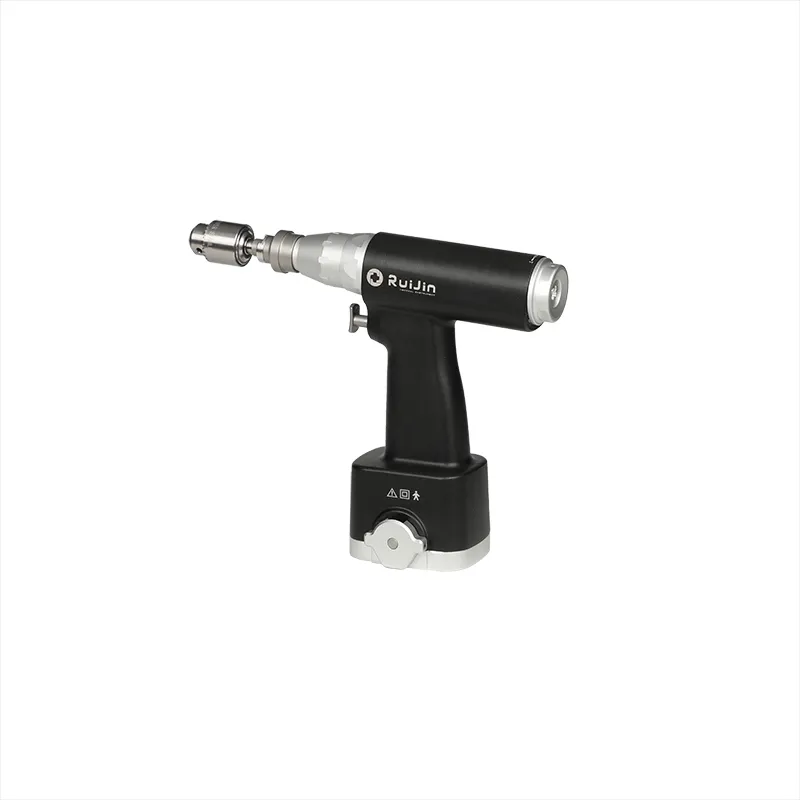

Hip joint drill with optional adaptors (Stryker, AO, Hudson, etc.)

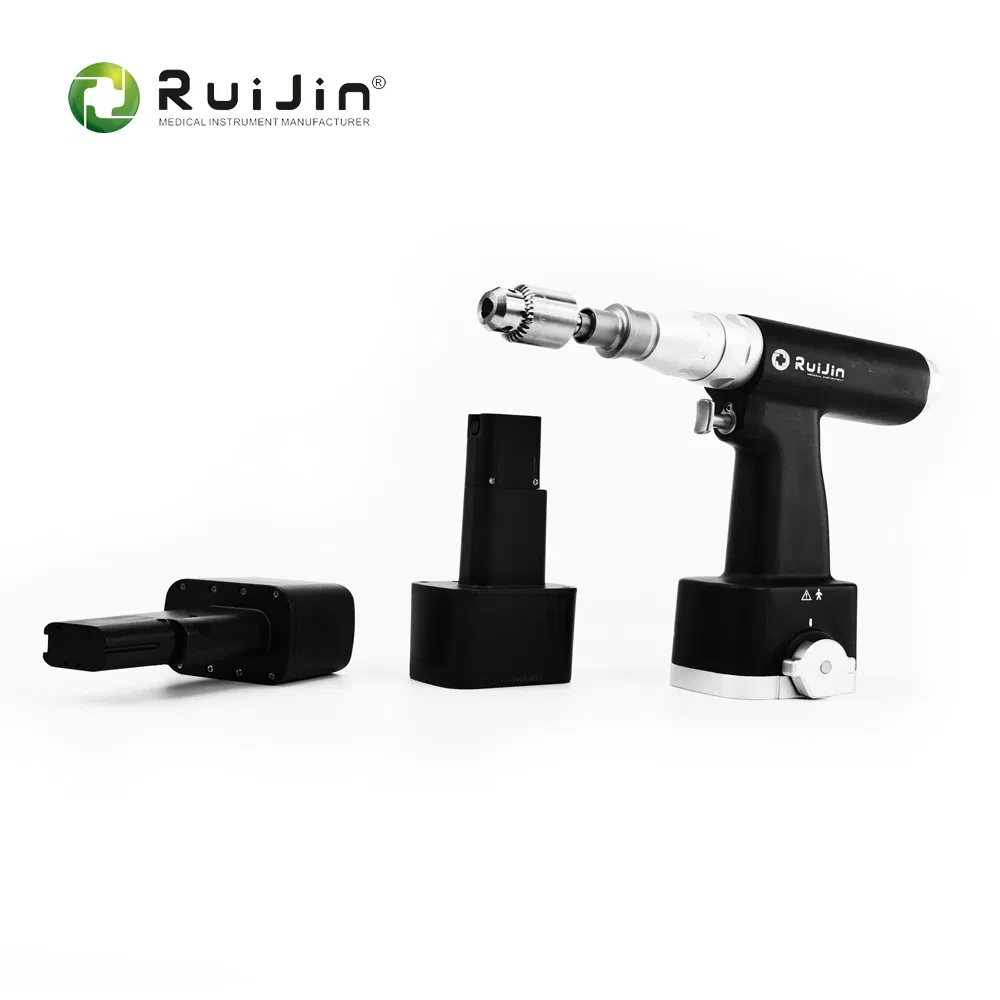

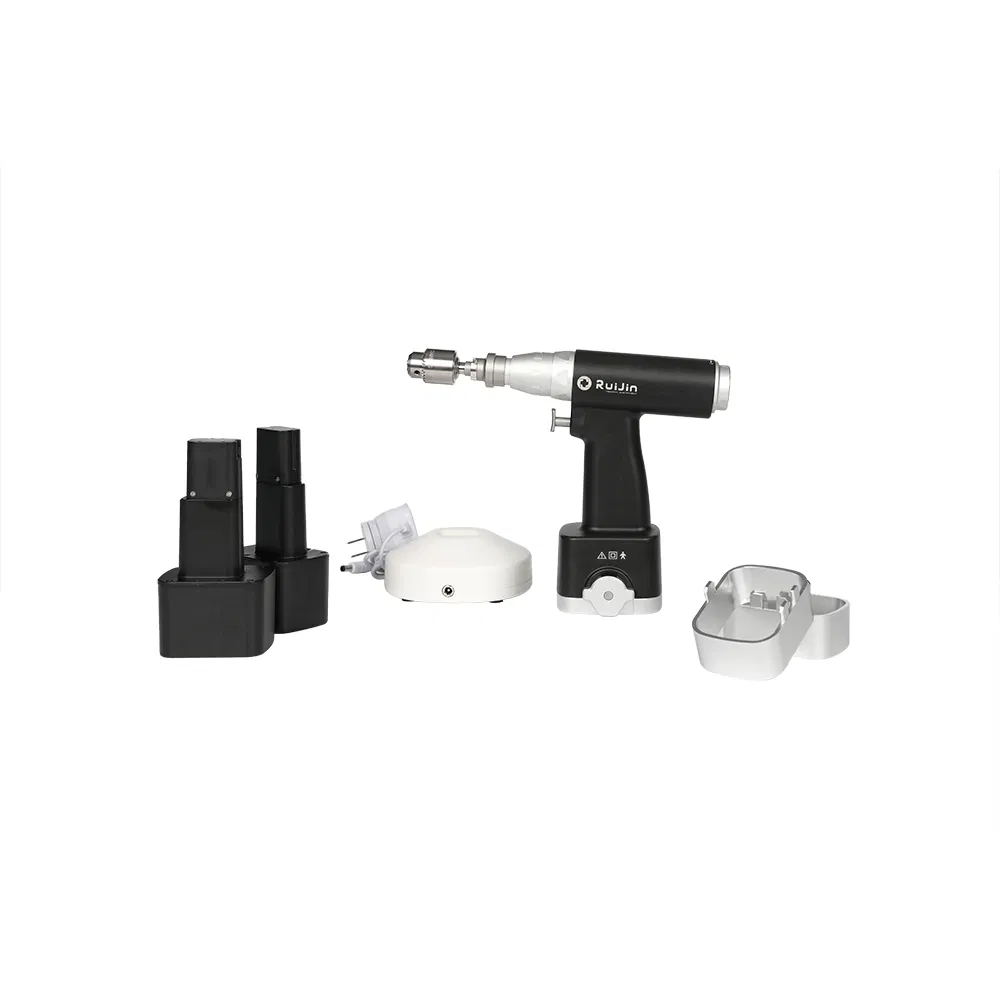

Each set includes 2pcs batteries for continuous power.

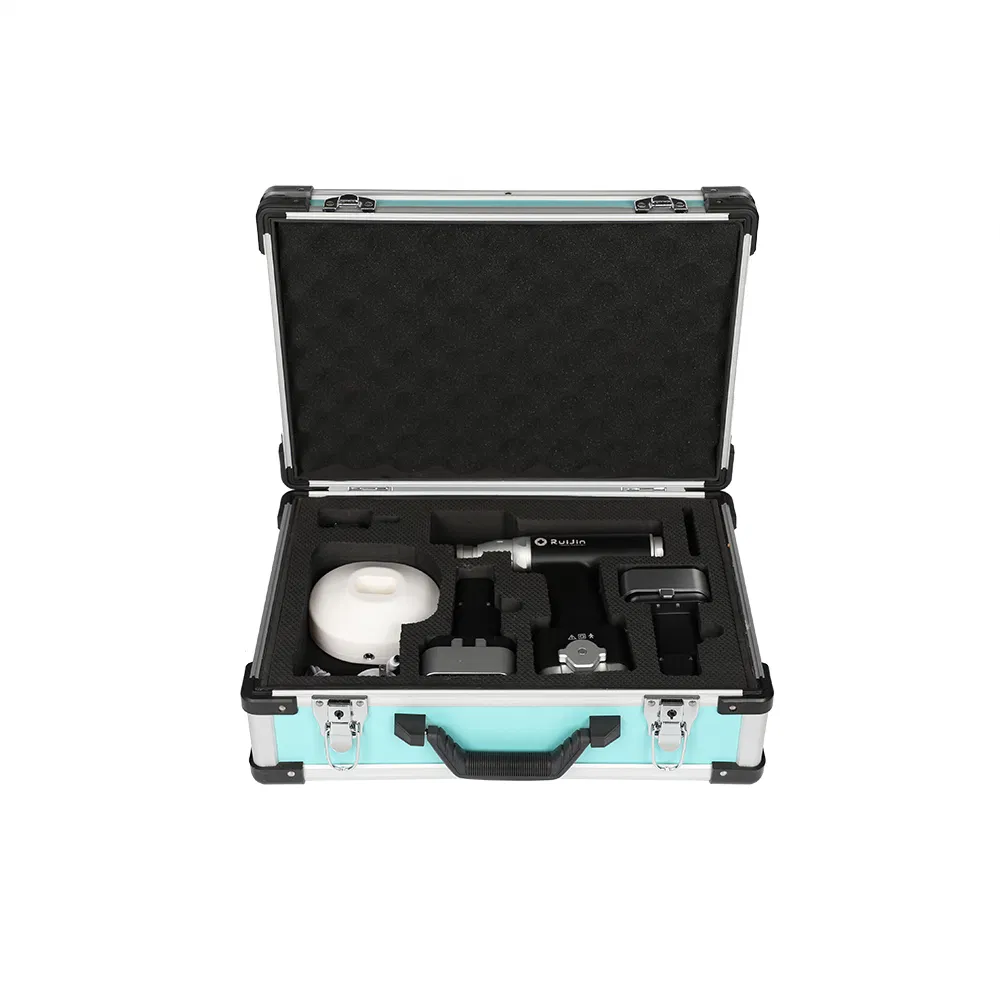

Complete set with aluminum case for shipping protection.

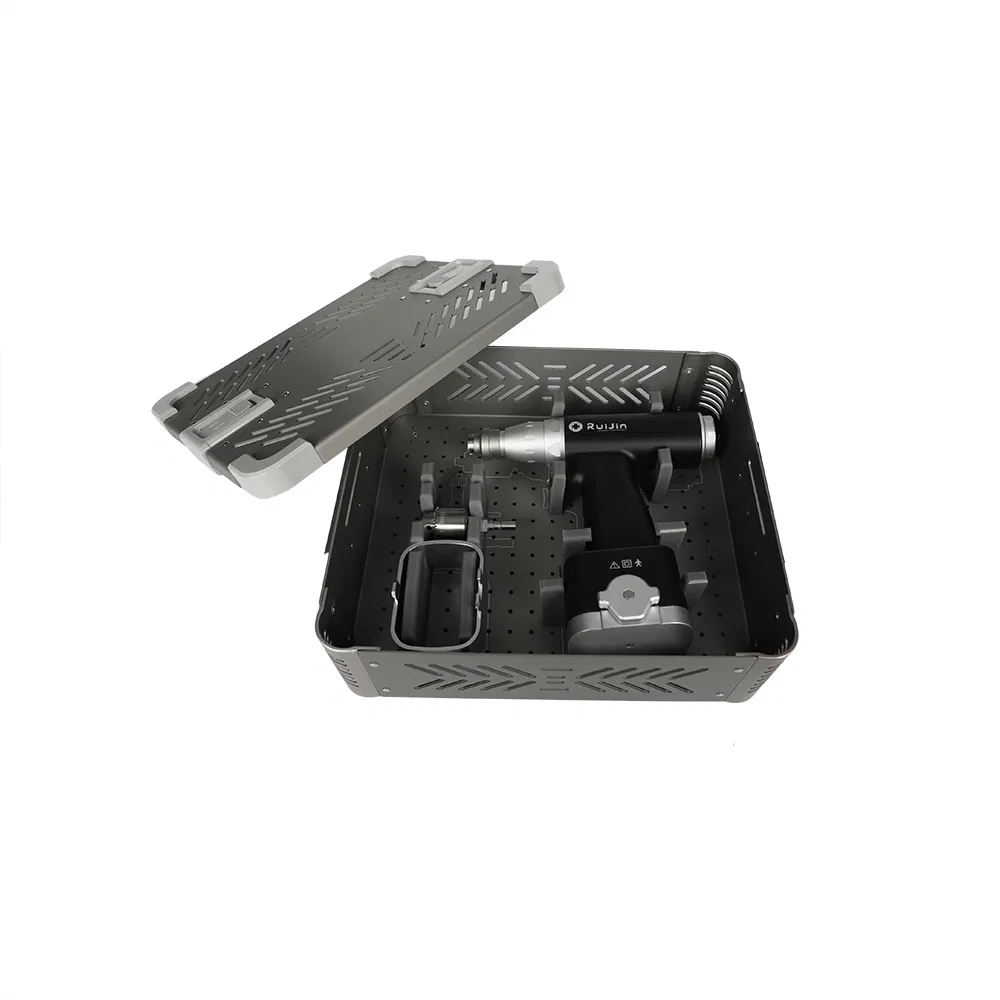

Specialized sterilization tray (Optional accessory).
Quality Certification

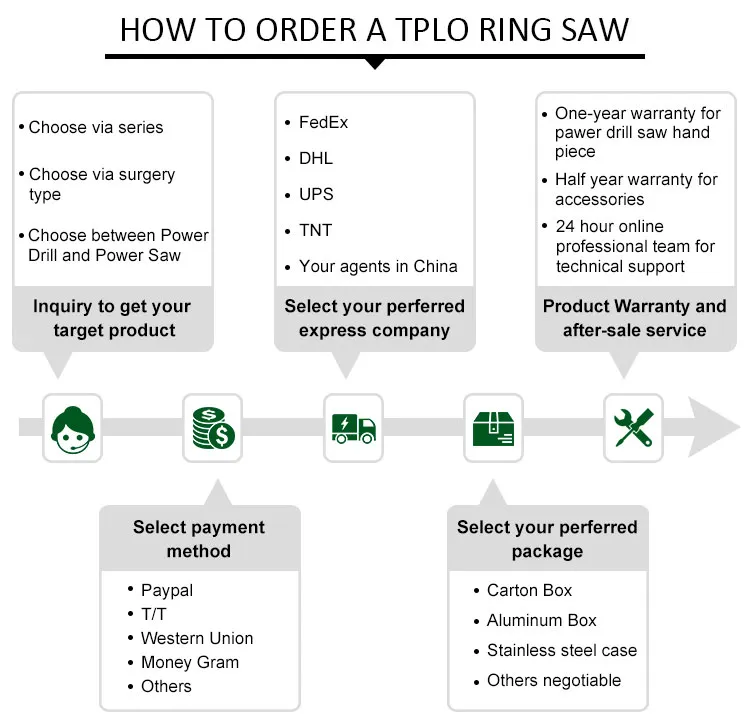

Ordering Process
Important Notes & Attention
1. Device must only be serviced by professionals.
2. Supports power sources from 110V/60Hz to 220V/50Hz.
3. Remove battery from the handpiece when not in use to prevent discharge.
4. The battery cannot be disinfected. Ensure battery space is dry after sterilization.
5. Sterilization temperature must not exceed 135°C to avoid motor damage.
6. Clean drill bits and saw blades with a purifier and dry immediately after operation.
Frequently Asked Questions
Is the whole surgical power drill unit autoclavable?
The handpiece and main unit are fully autoclavable up to 135°C. However, the battery must not be disinfected or exposed to high-temperature sterilization.
What is the warranty period for this medical drill?
The product comes with a 2-year warranty for the machine and professional after-sales support.
What kind of motor does this orthopedic drill use?
It uses a high-quality imported brushless German motor, ensuring low noise, variable speed control, and high torque for precision surgery.
Can I use this drill with different brand adaptors?
Yes, the hip joint drill supports various optional adaptors including Stryker, AO, Hudson, and Synthes to meet different surgical requirements.
How long does the battery take to charge?
A full charge typically takes about 3 hours. Each standard set includes two batteries to ensure continuous power during long operations.
What are the primary surgical applications for this device?
It is primarily designed for Total Hip Replacement but is also widely used in trauma, joint, orthopedic, and veterinary surgeries.
