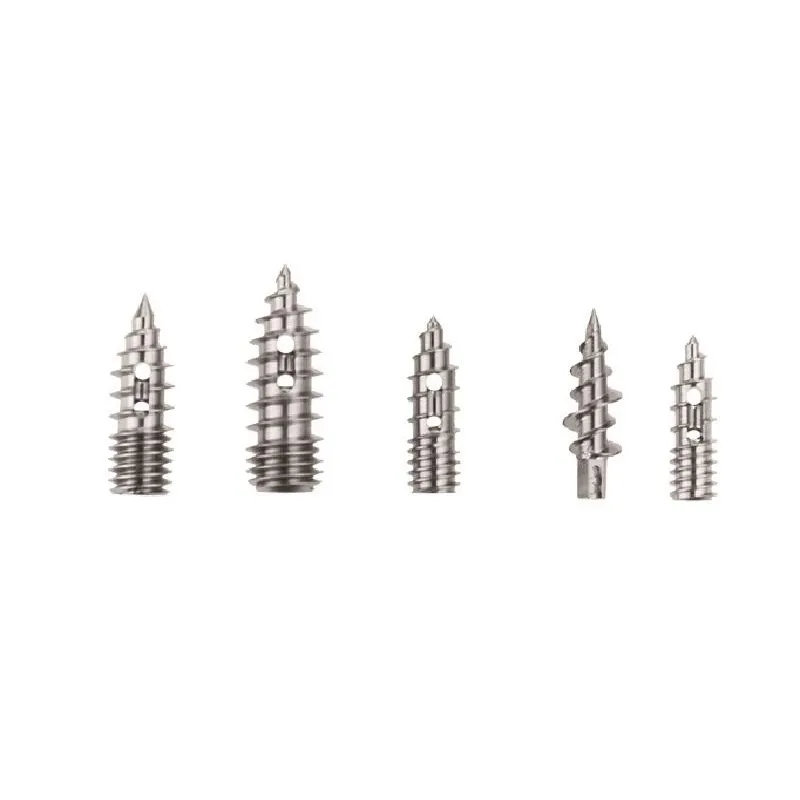

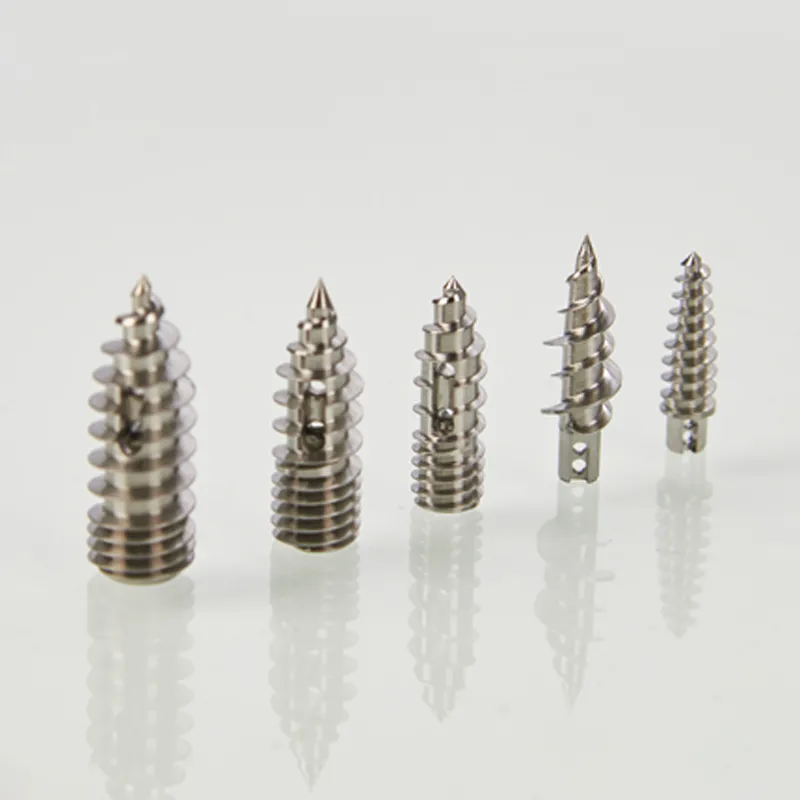

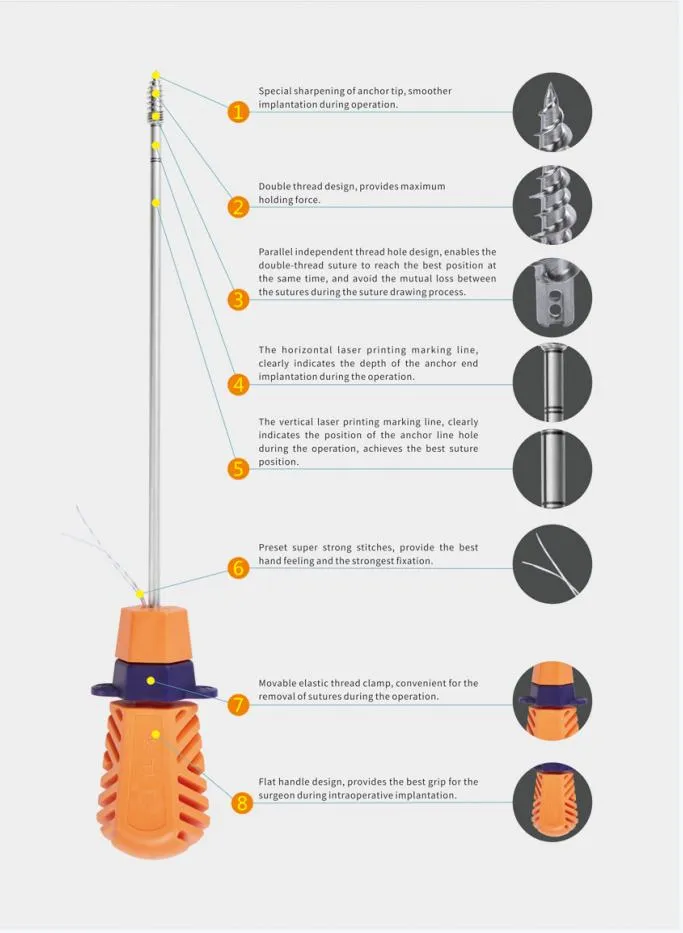

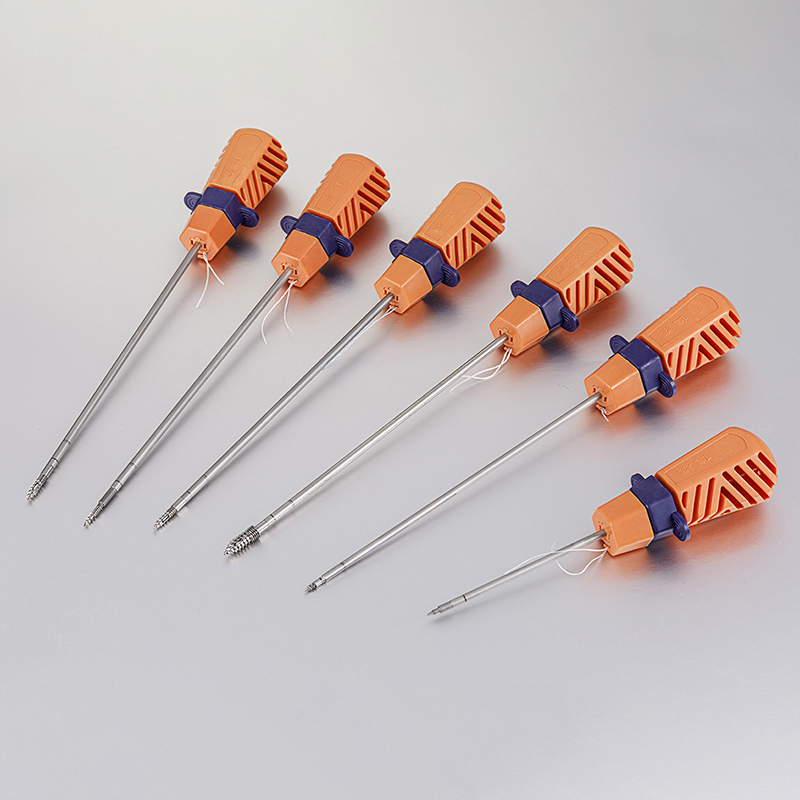

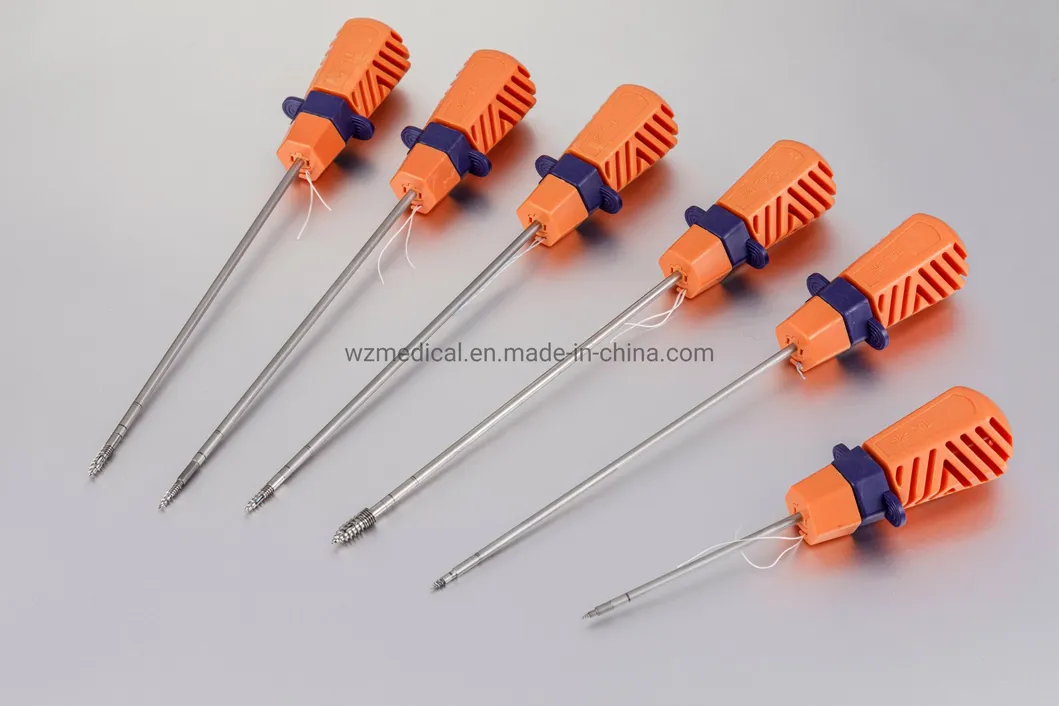

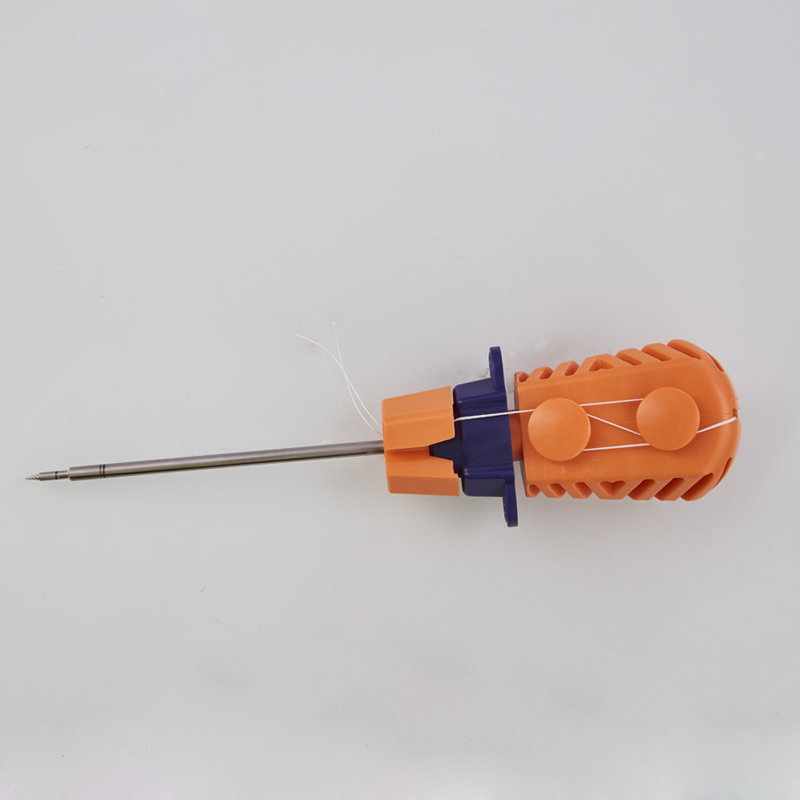

Suture Anchor System consists of an anchor, nonabsorbable suture, and inserter. The anchor is constructed from high-quality Ti6Al4V alloy, strictly adhering to ISO5832-3:2016 standards. The accompanying suture is made from ultra-high molecular weight polyethylene (UHMWPE) material without additional coating, woven specifically from multiple UHMWPE yarns to meet ASTM F2848-17 requirements.

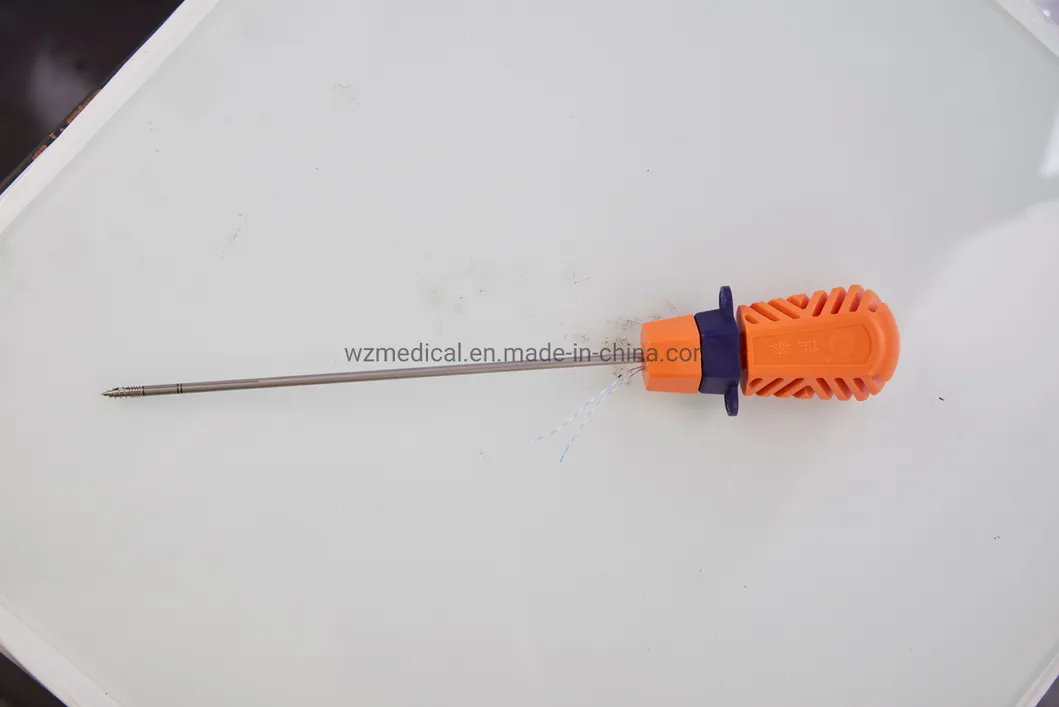

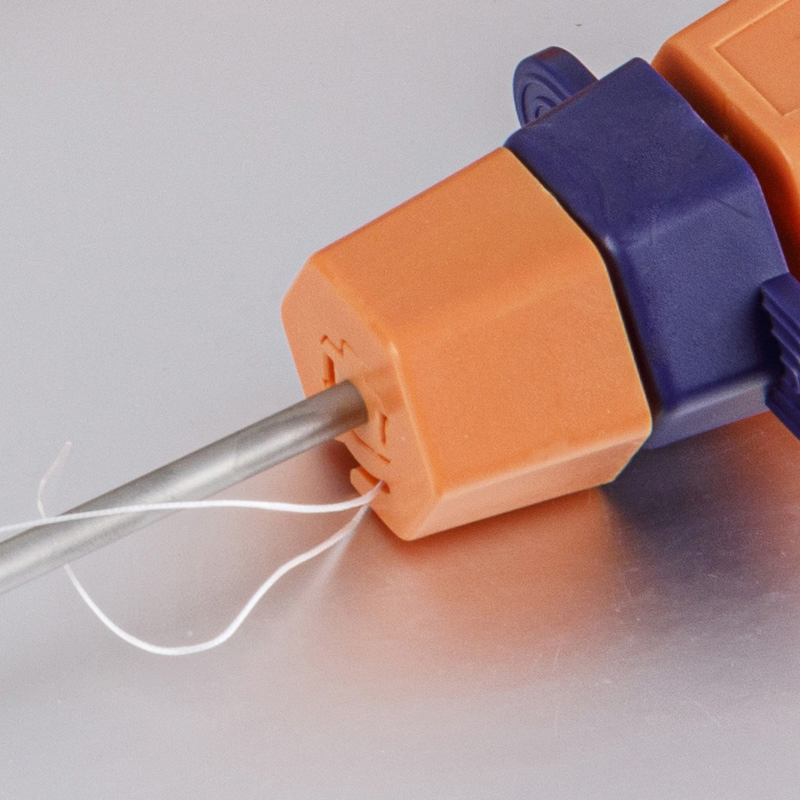

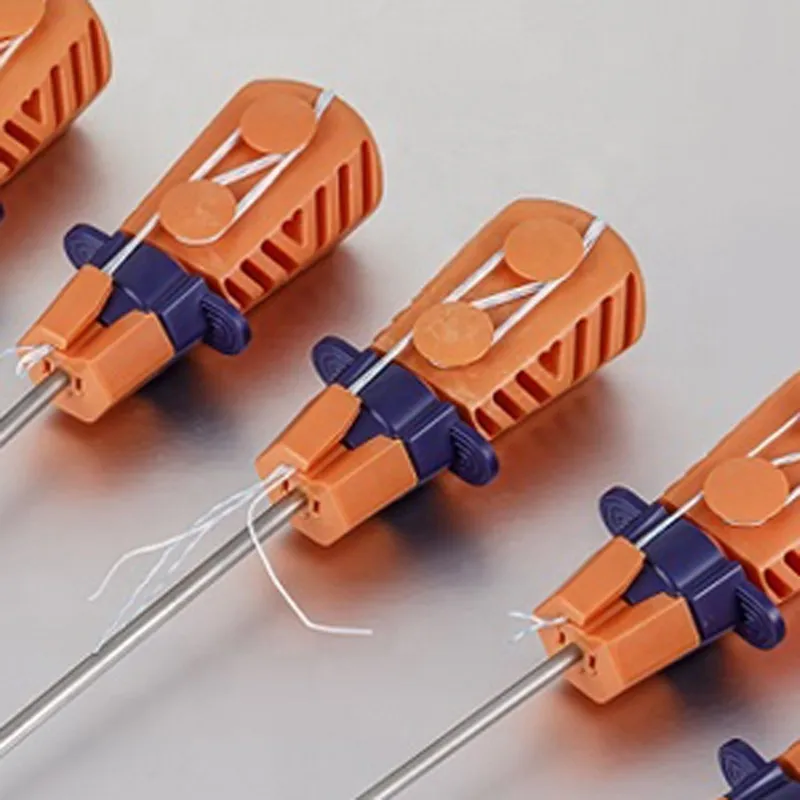

The blue suture is derived from white UHMWPE dyed with FDA-approved blue material (code 73.1015). For the inserter, the components contacting the human body are crafted from stainless steel conforming to ASTM F899-12b. The inserter handle, designed for external use only, is made from durable polycarbonate and ABS material.
| Item | Specifications & Value |
|---|---|
| Properties | Implant Materials & Artificial Organs |
| Model Number | WZ-MDT-S-01 |
| Instrument Classification | Class II |
| Product Name | Suture Anchor System |
| Material | Titanium Alloy (Ti6Al4V) |
| Color | Silver + Orange |
| Standard Dimensions | Diameter 1.8 x 6mm |

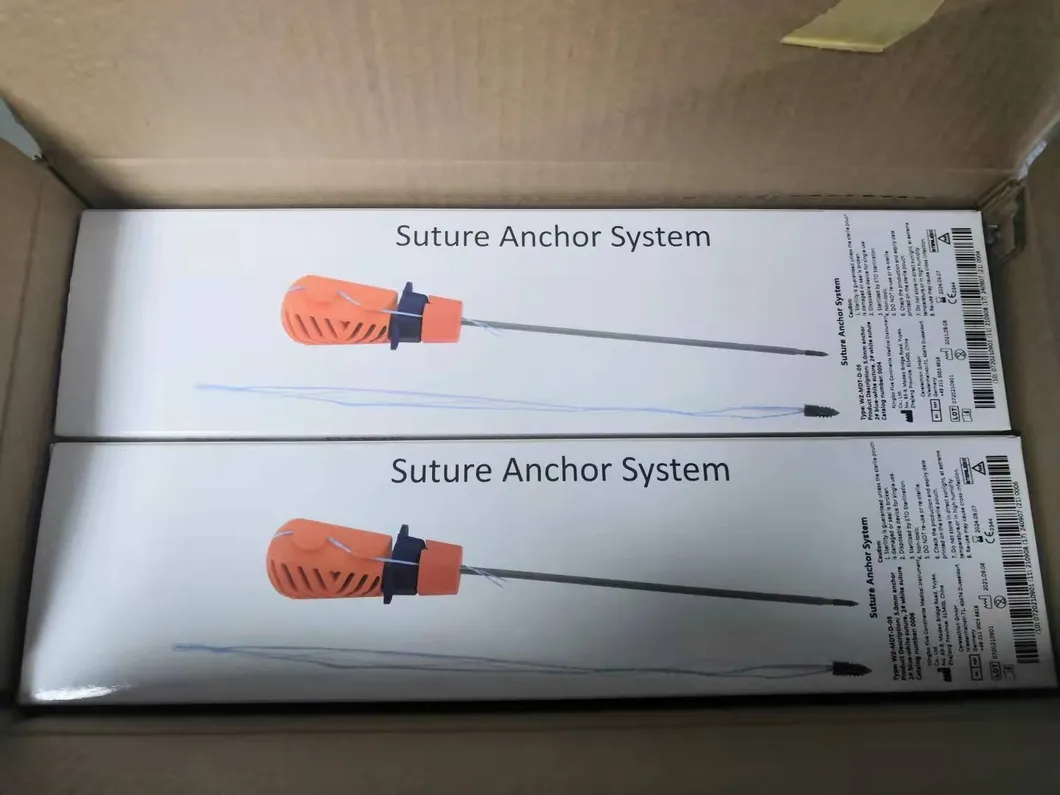

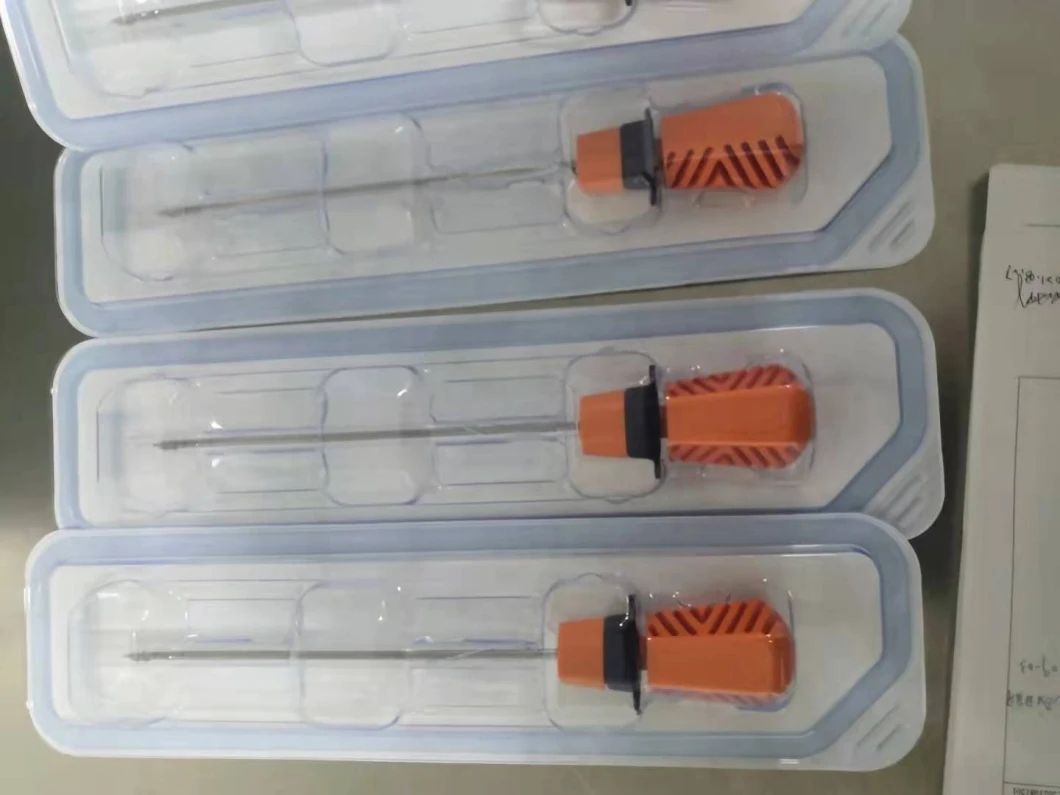

| Package | Sterile Packaging 1pc/package |

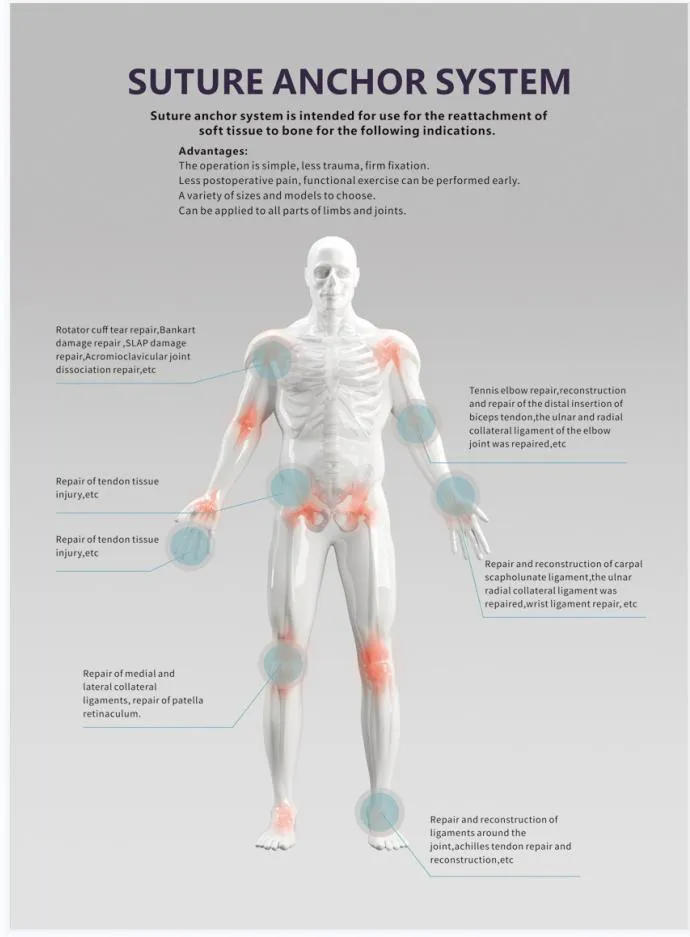

| Application | Orthopedic Surgery / Implantology |
