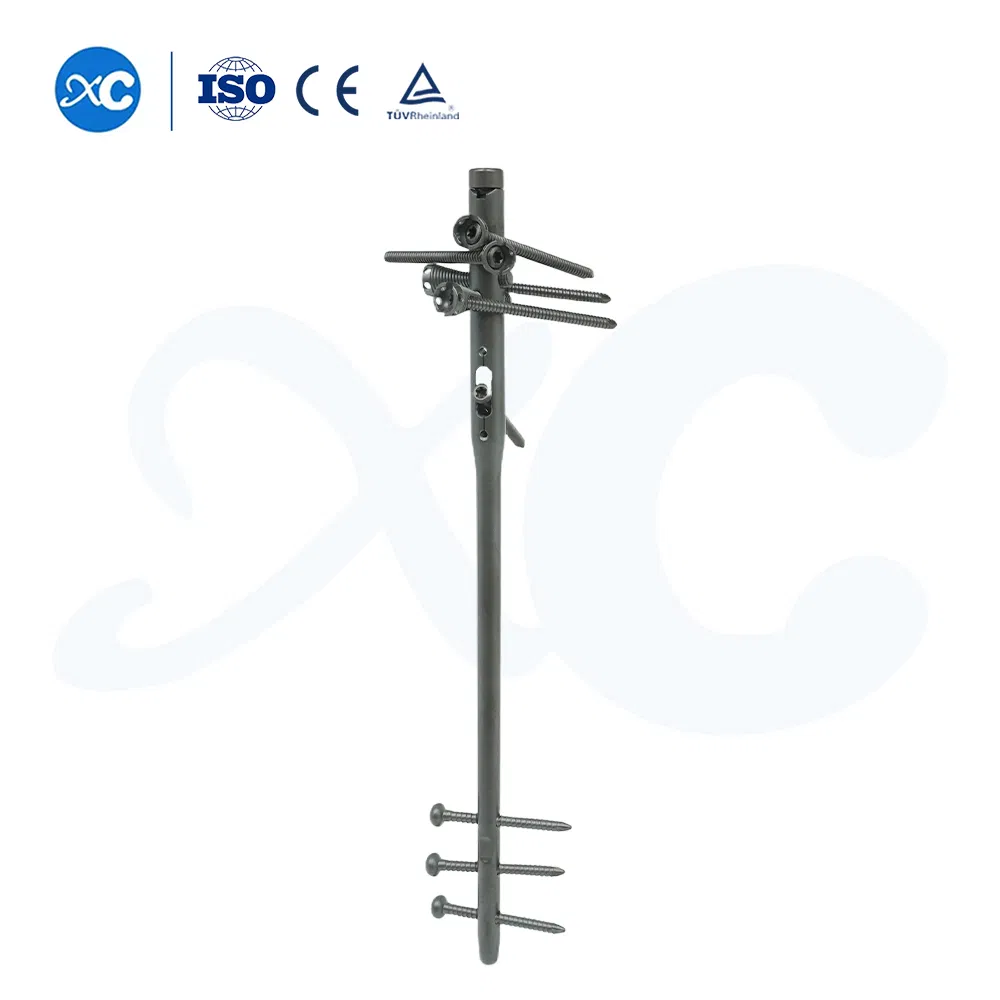

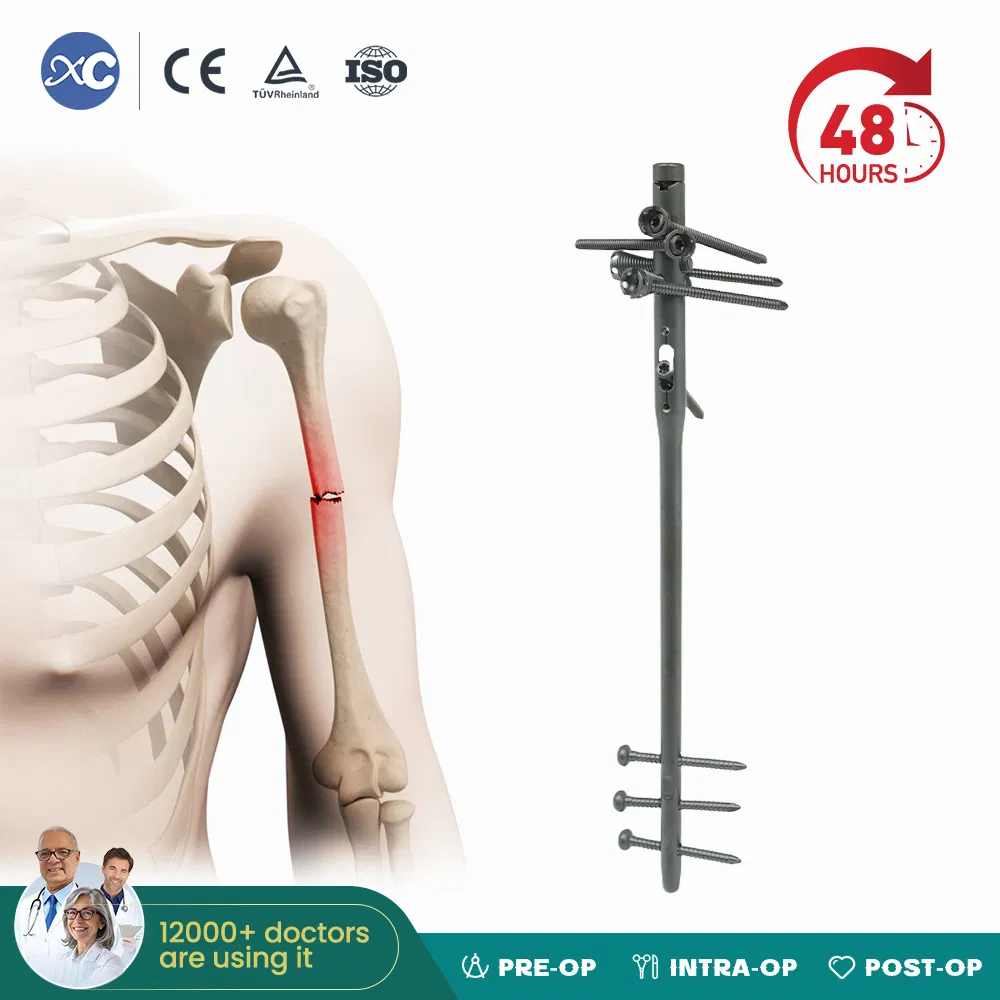

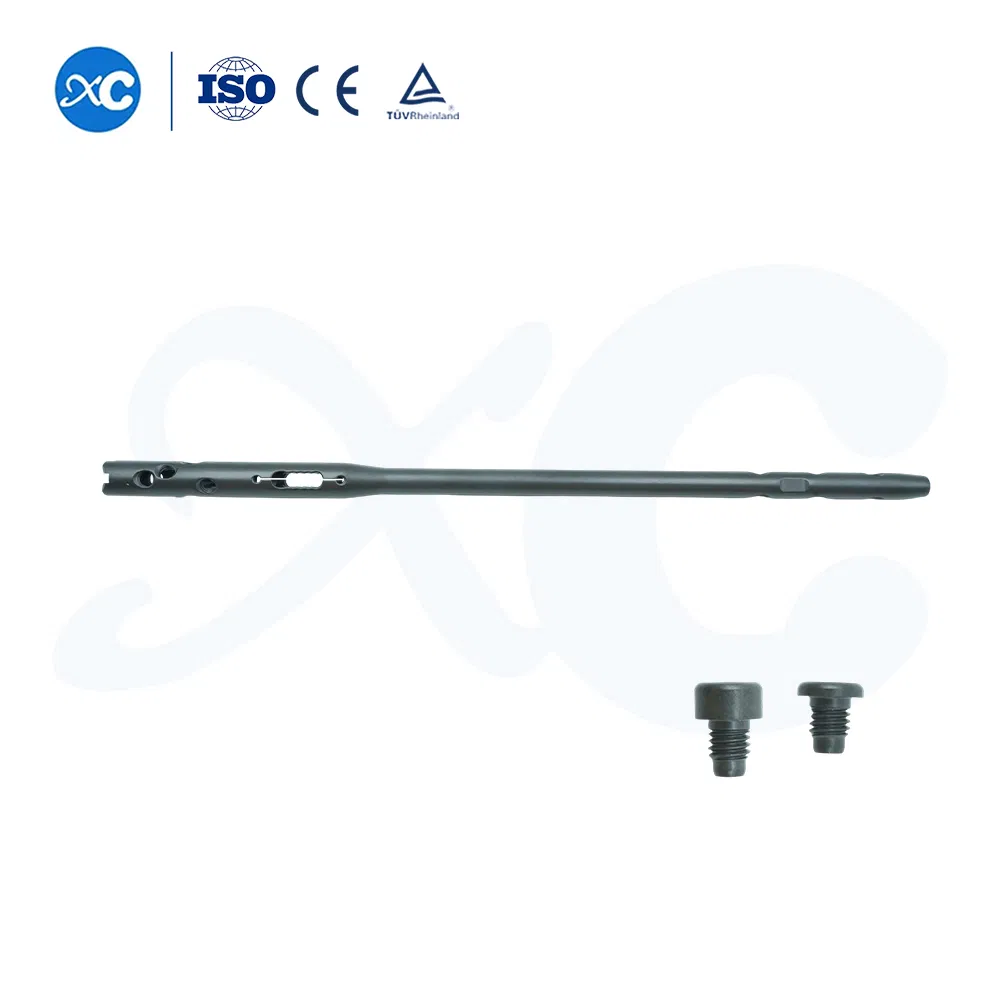

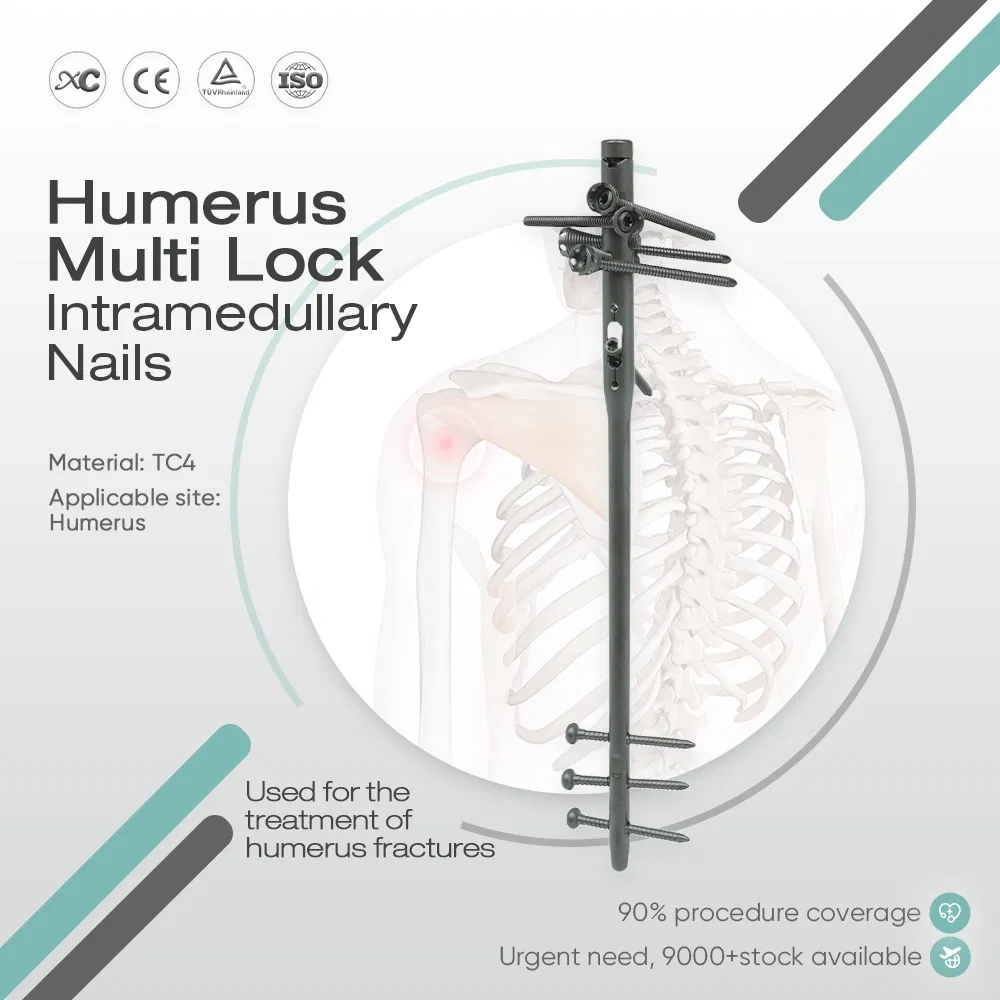

The Humerus Multi-Lock Intramedullary Nails are designed for the treatment of humerus fractures, providing stable internal fixation for orthopedic surgical procedures.
| Product | REF (Titanium Alloy) | Specification |
|---|---|---|
| Humerus Multi Lock Nails | RZDG185160L/R | 8.5*160 L/R |
| Humerus Multi Lock Nails | RZDG17200L/R to RZDG17300L/R | 7.0*200 to 300 (L/R) |
| Humerus Multi Lock Nails | RZDG18200L/R to RZDG18300L/R | 8.0*200 to 300 (L/R) |
| Component | REF | Specification (mm) |
|---|---|---|
| End Cap | RZDG1WM2-15 | 2, 5, 10, 15 |

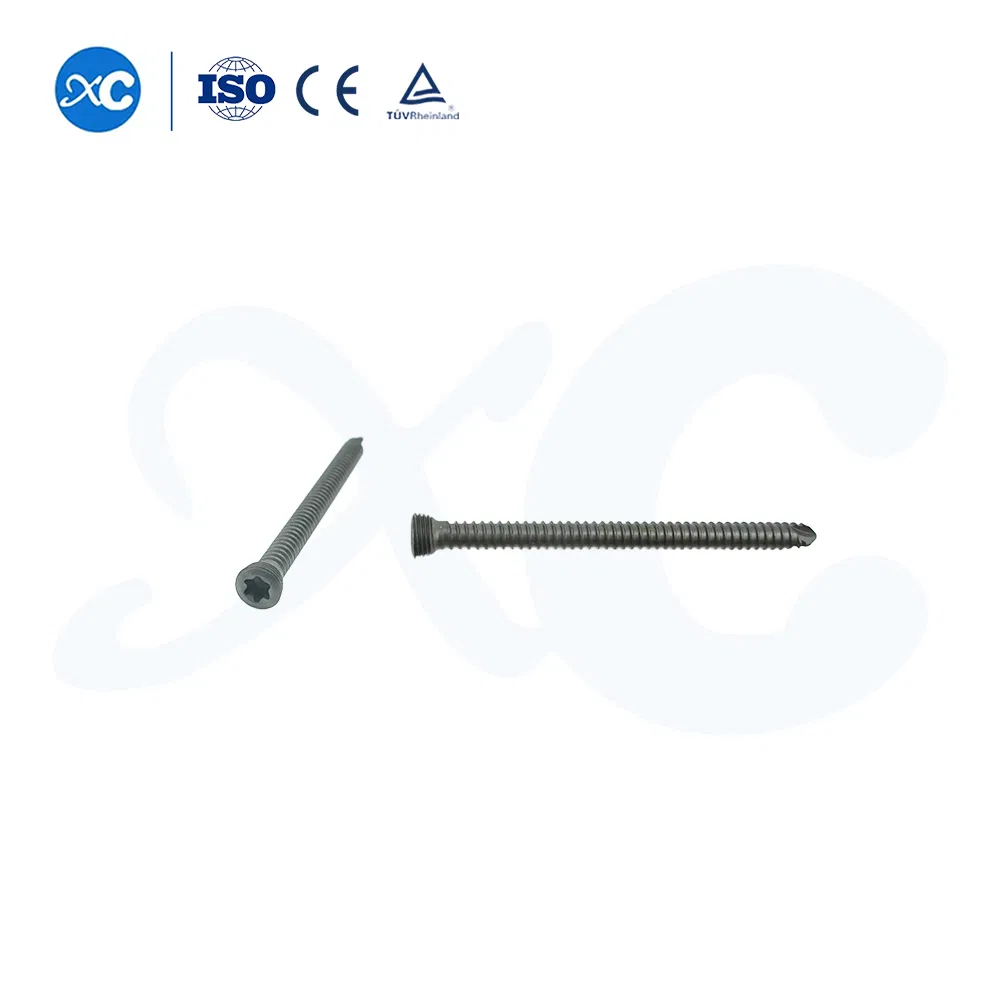

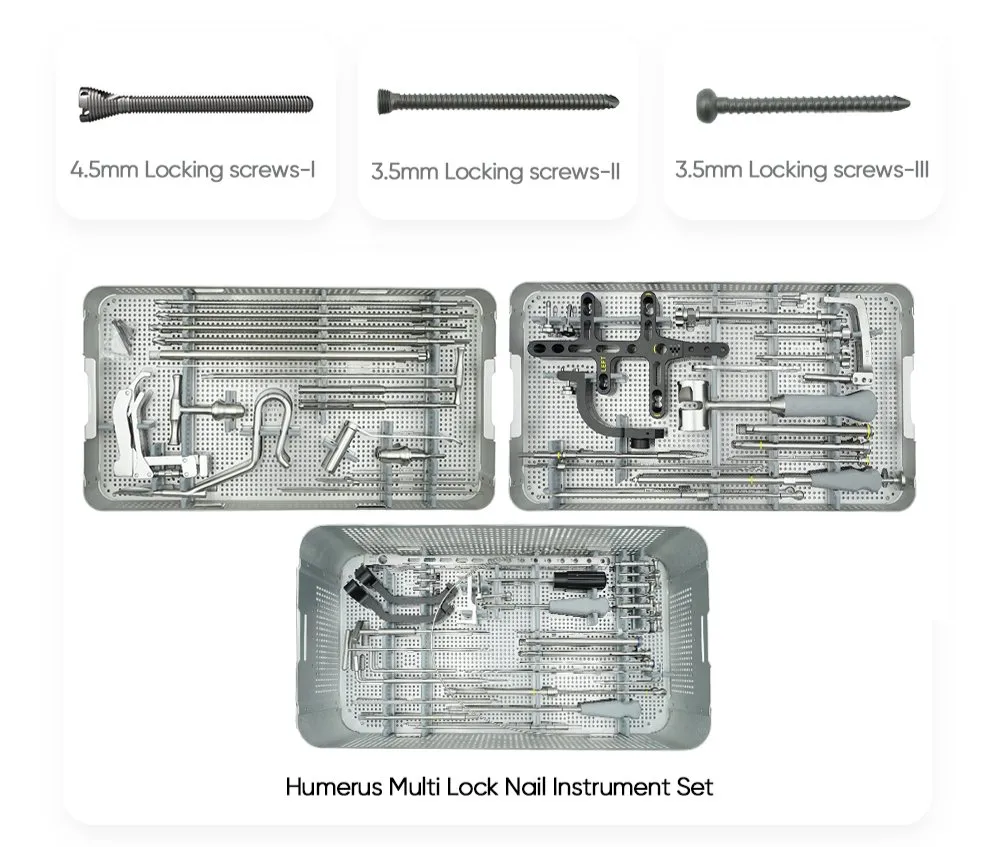

| Locking Screw-I | RZDG1LD4520-60 | 4.5 × 20-60 |
| Locking Screw-II | RSZS3526-52 | 3.5 × 26-52 |
| Locking Screw-III | RZDG1LD3520-66 | 3.5 × 20-66 |

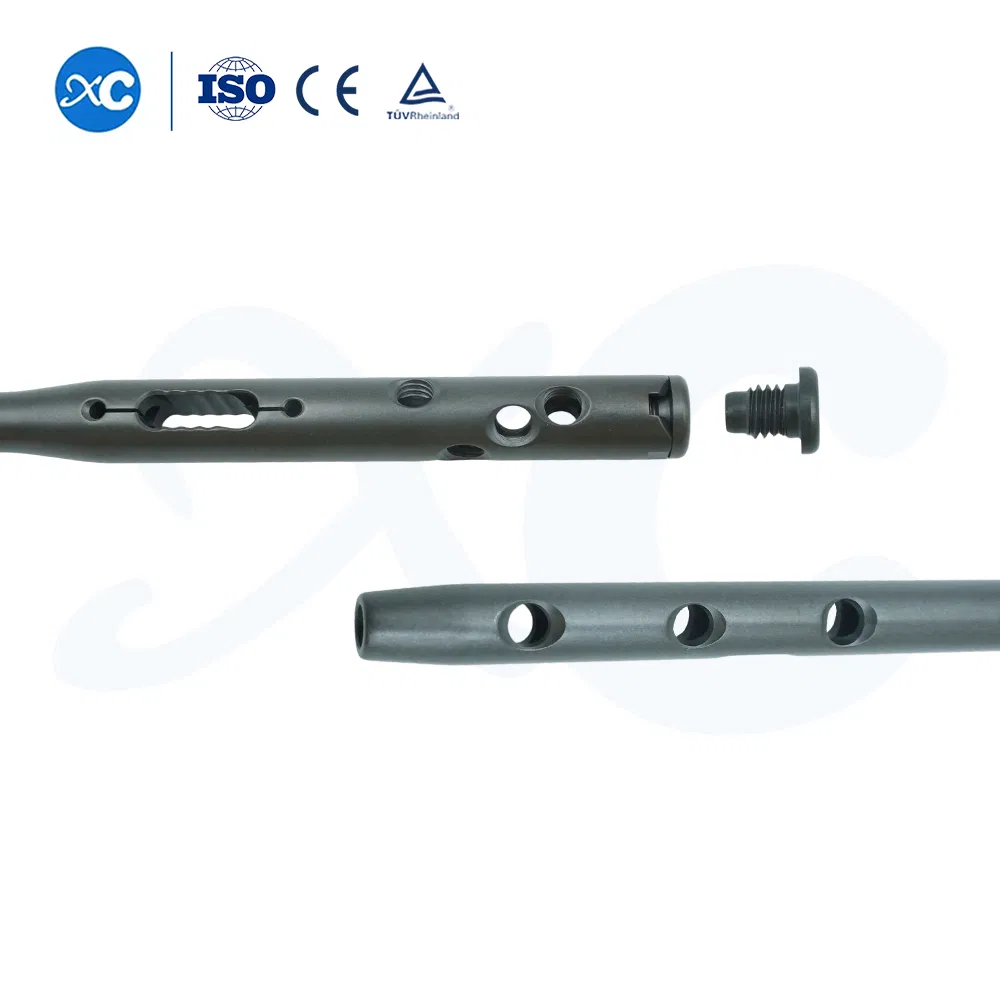

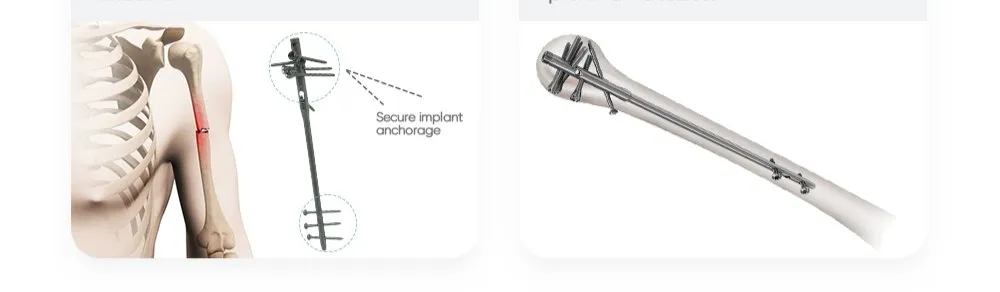

Proximal Fixation Stability: Maintains angular stability and reduces the risk of screw loosening or backing out, ensuring reliable proximal fixation.

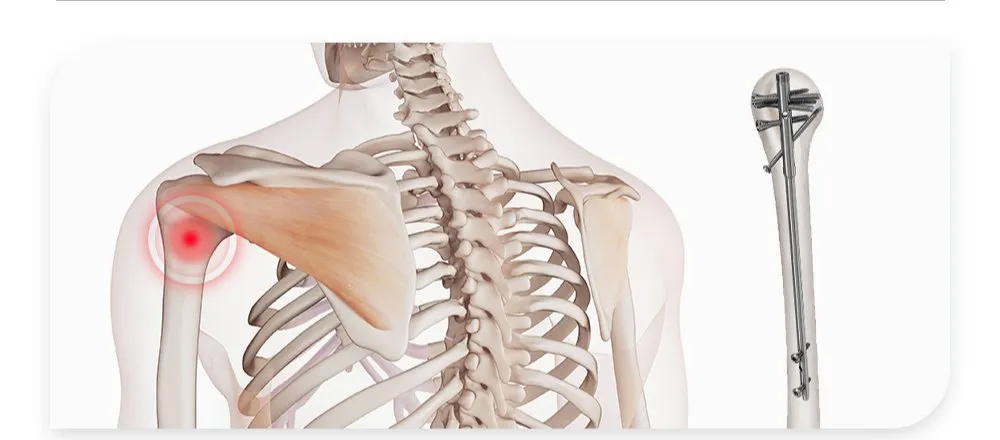

Humeral Head Support: Provides support to the humeral head, reducing the risk of varus angulation and aiding stable alignment of proximal fractures.

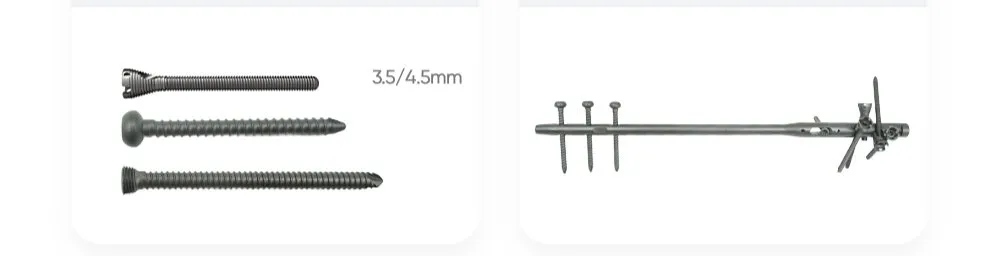

Screw Selection: 4.5mm screws provide stability; 3.5mm screws can add support for weak bone.
Enhanced Distal Fixation: Provides more stable distal fixation, enhancing overall intramedullary nail stability.
Related products available: Humerus Multi Lock Nail Instrument Set for precise surgical implementation.

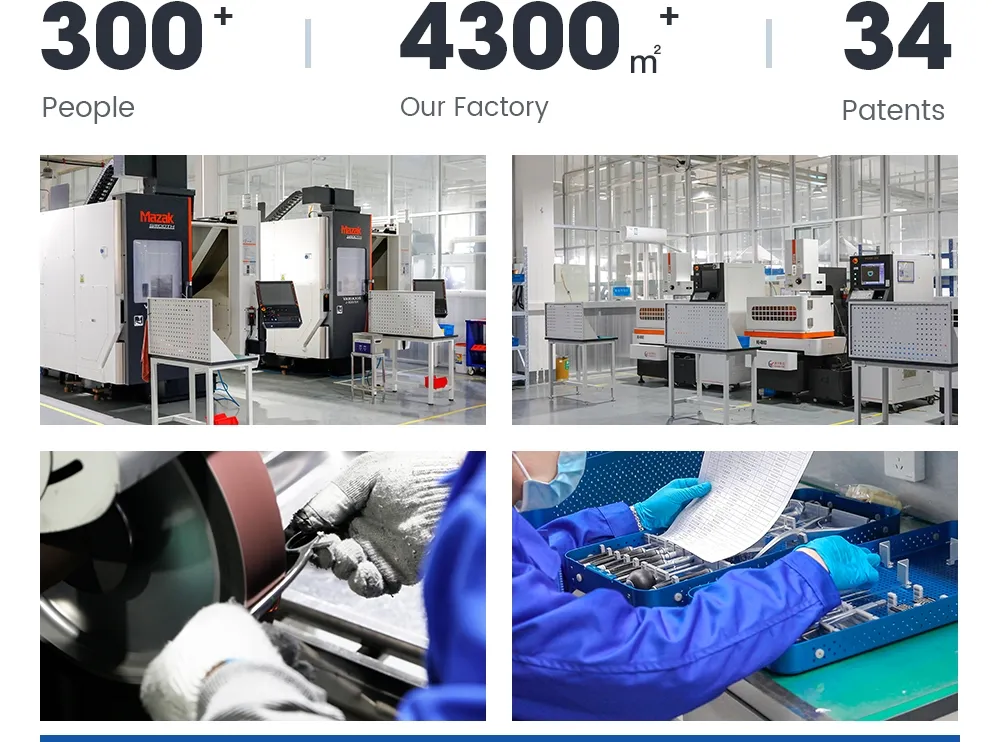

We provide a full range of orthopedic implants and instruments. As a professional manufacturer, we maintain dedicated production lines and warehouses to ensure high-quality standards.
